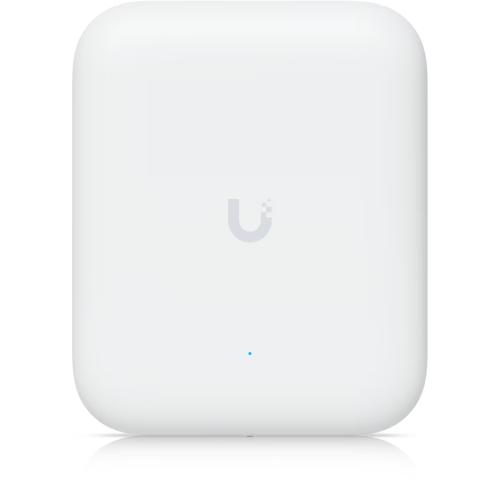

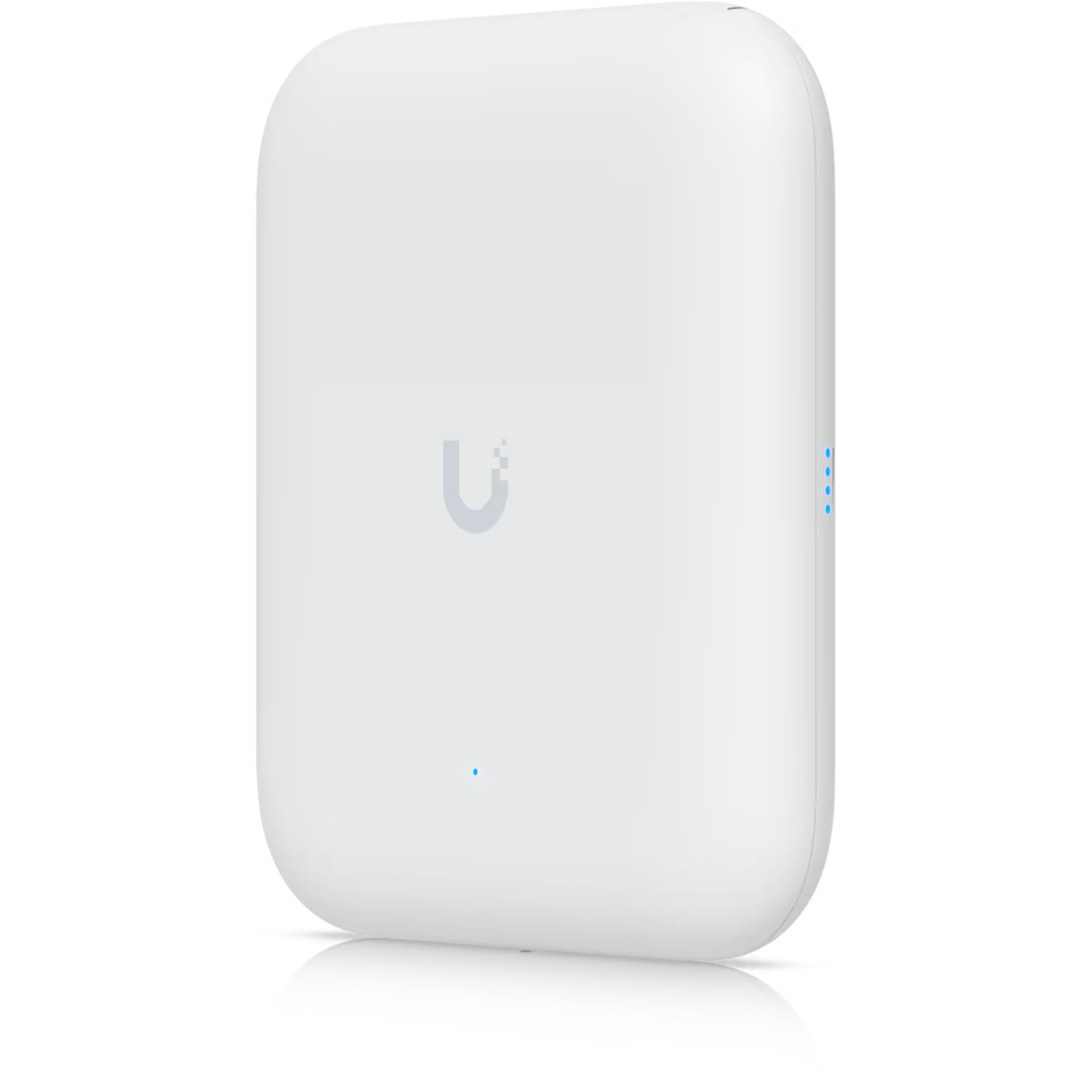

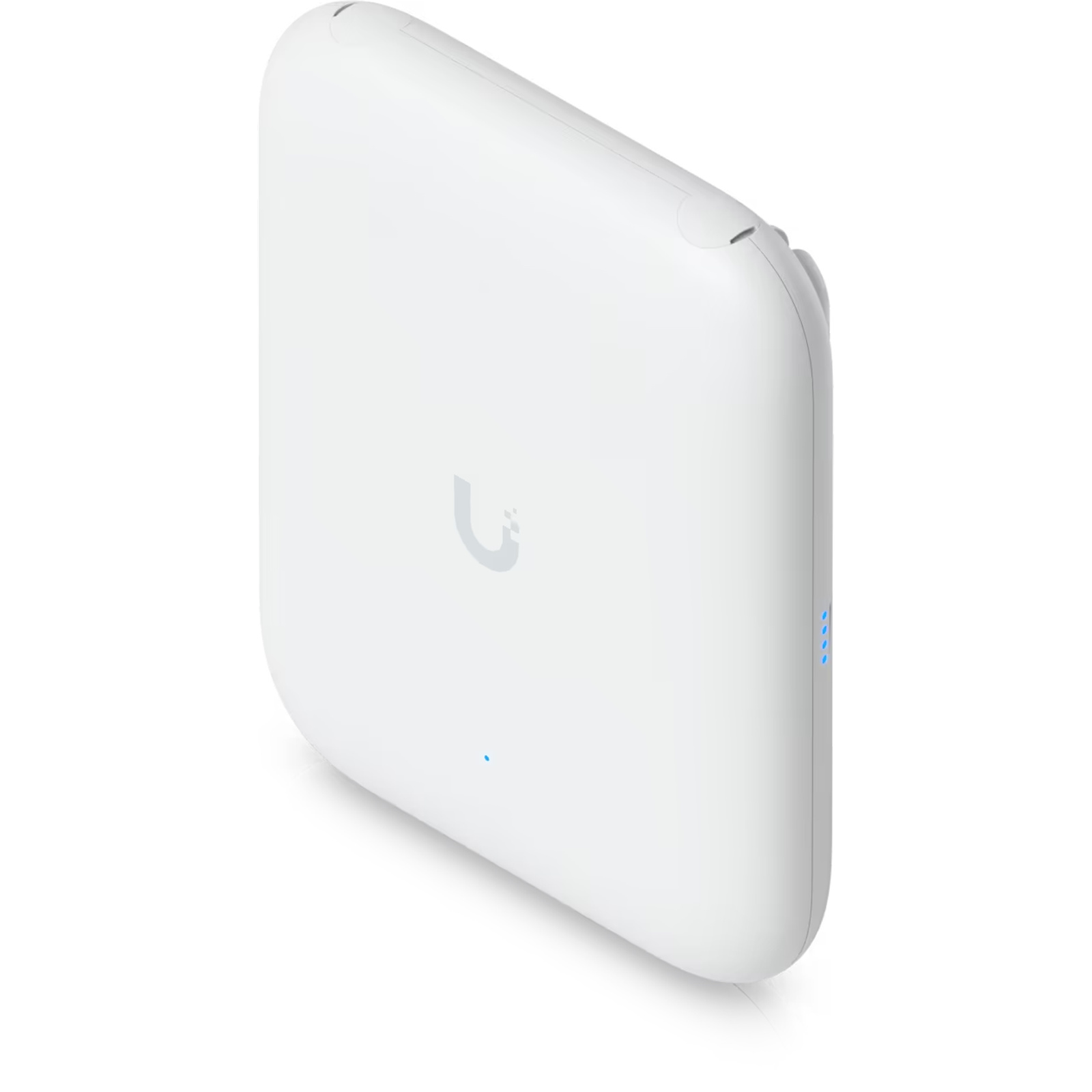

Ubiquiti UniFi U7-Pro-Outdoor (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 21W) [U7-Pro-Outdoor]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Limited Stock
$617.16

Collect 617 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Ubiquiti UniFi U7-Pro-Outdoor (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 21W)

U7 Pro Outdoor
All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.
- WiFi 7 with 6 GHz support
- 6 spatial streams
- Long-range 6 GHz performance with AFC*
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
- Software-switchable from internal directional to included external omni antennas
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
*Available in FCC/IC region only.

Mechanical

Dimensions
Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")

Weight
Device: 1.2 kg (2.6 lb)
Mount: 130 g (0.3 lb)

Enclosure material
UV-stabilized polycarbonate, aluminum alloy

Mount material
UV-stabilized polycarbonate

Pole mount diameter
25–63.5 mm (1–2.5") on pipe outer diameter

Wind survivability
74.6 N at 200 km/h (16.8 lbf at 125 mph)

Weatherproofing
IPX6
IP67 with cable-gland door kit (Included)

Hardware

Networking interface

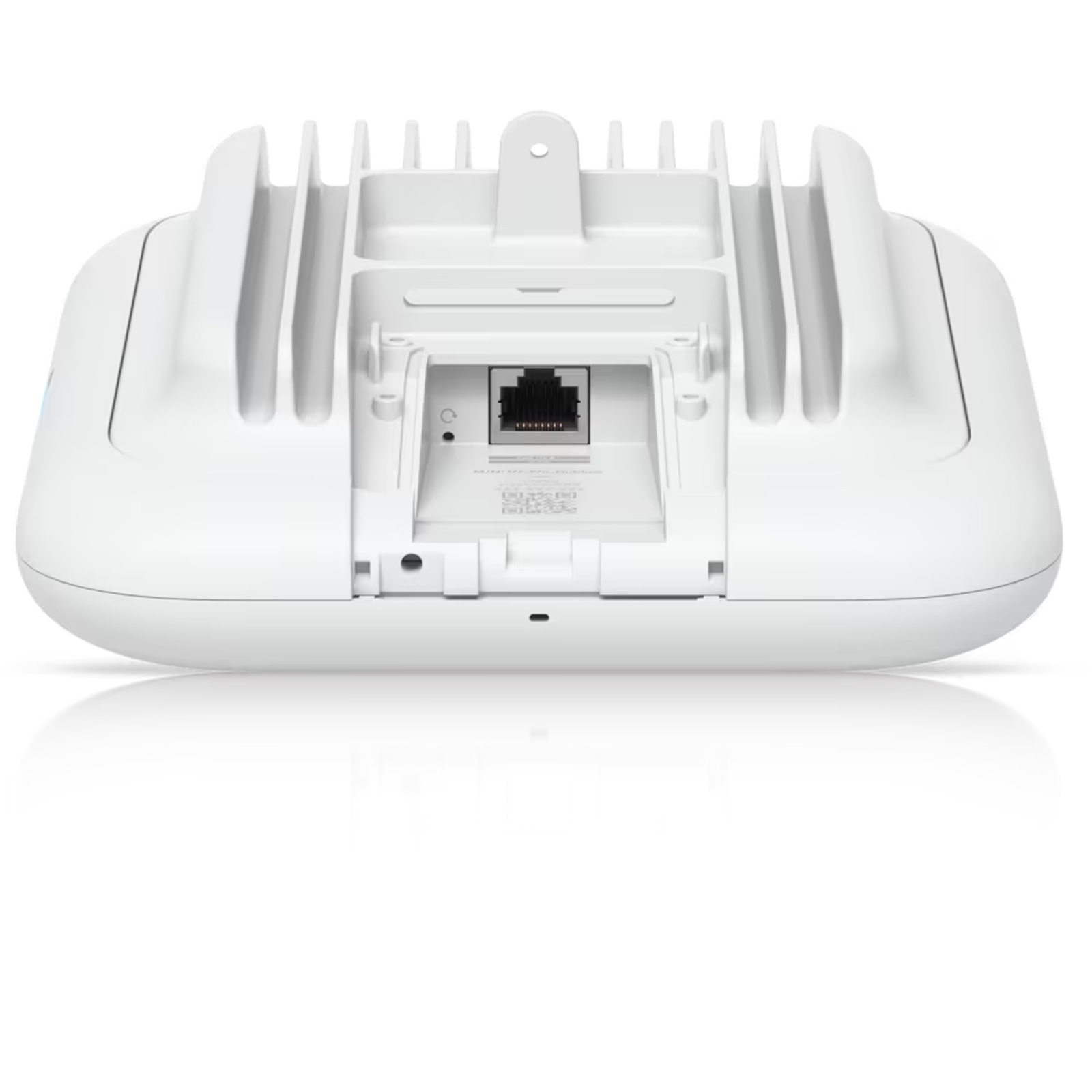

(1) 1/2.5 GbE RJ45 port

Management interface
Ethernet

Power method
PoE+

Power supply
UniFi PoE switch

Supported voltage range
42.5—57V DC

Max. power consumption
21W

Max. TX power

2.4 GHz 23 dBm
5 GHz 26 dBm
6 GHz 26 dBm*
*With 6 GHz Extended Range mode. Available in FCC/IC region only.

MIMO

2.4 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 2 x 2 (DL/UL MU-MIMO)
6 GHz 2 x 2 (DL/UL MU-MIMO)

Max. data rate

2.4 GHz 688 Mbps (BW40)
5 GHz 4.3 Gbps (BW240)
6 GHz 5.7 Gbps (BW320)

Antenna gain

2.4 GHz Directional internal: 8 dBi / External omni: 6 dBi
5 GHz Directional internal: 11 dBi / External omni: 8 dBi
6 GHz Directional internal: 10 dBi / External omni: –

Antenna beamwidth

2.4 GHz 90°
5 GHz 90°
6 GHz 90°

Antennas
(1) Directional internal antenna

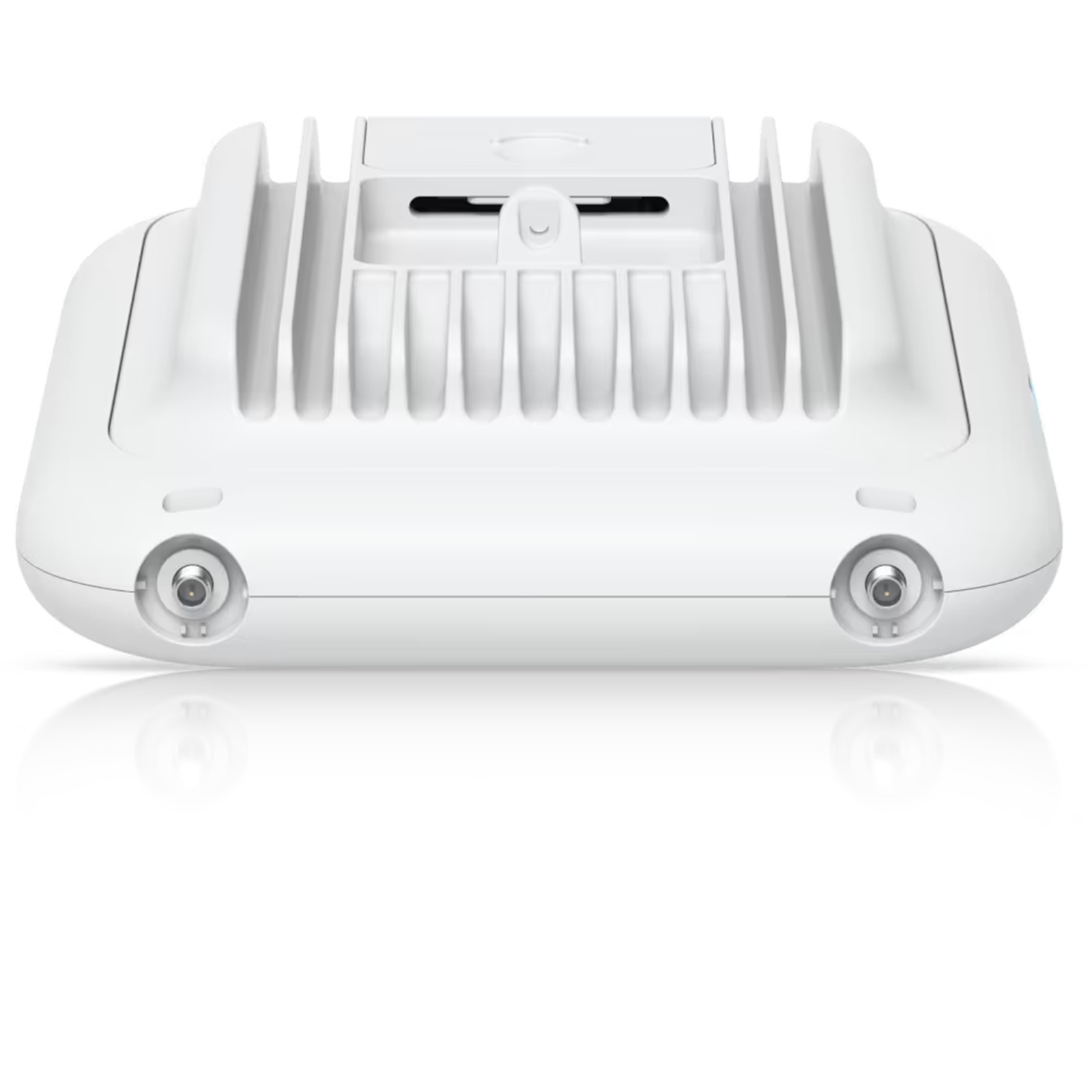

(2) RP-SMA connectors for external antenna

LEDs
(1) Power: white/blue
(4) Mesh signal: blue

Button
Factory reset

Mounting
Wall, ceiling, pole (Included)

Ambient operating temperature
-30 to 60° C (-22 to 140° F)

Ambient operating humidity
5 to 95% noncondensing

Certifications
FCC, IC

Software

WiFi standards
802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)

Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest traffic isolation
Supported

Concurrent clients
300+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network
Version 9.0.108 and later
- MPN: U7-Pro-Outdoor

GTIN: 810084698730
