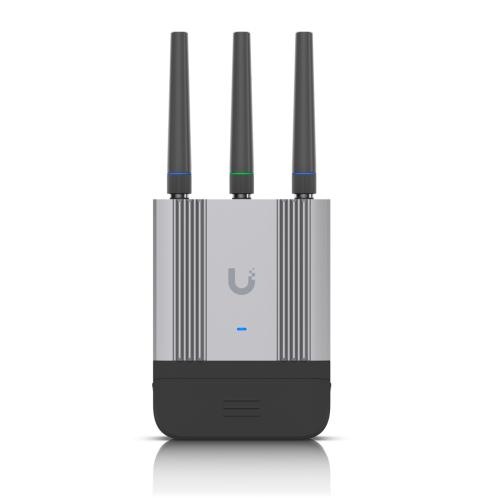

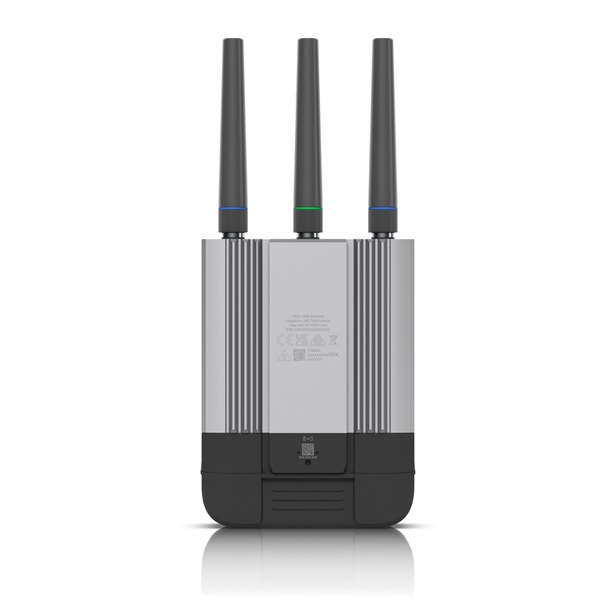

Ubiquiti UniFi (UMR-Industrial) 4G LTE CAT4 Mobile Router Industrial with WiFi N300 1GbE PoE+ In x1 / 1GbE PoE Out x1 / Nano-SIM Slot [UMR-Industrial]

Image 1
Image 2
Hurry! 1 items left!
$413.21

Collect 413 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Ubiquiti UniFi (UMR-Industrial) 4G LTE CAT4 Mobile Router Industrial with WiFi N300 1GbE PoE+ In x1 / 1GbE PoE Out x1 / Nano-SIM Slot

Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.
- Site-to-site VPN and VPN client routing
- (2) GbE ports with (1) PoE output*
- Powered using PoE, USB Type-C, or 4-pin DC power socket
- Outdoor GPS location tracking
- Flexible wall, pole, and DIN rail mounting
- Weatherproof (outdoor exposed) with the included cover
- Optional Mobility Cloud subscription**

Mechanical
Dimensions
Without outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3")
With outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
Weight
Device: 360 g (12.7 oz)
Device with outdoor cover: 395 g (13.9 oz)
DIN rail/wall mounts: 25 g (0.9 oz)
Enclosure material
Polycarbonate, aluminum
Mount material
Wall/pole mount: polycarbonate
DIN rail mount: polycarbonate
Pole mount diameter
1–2" on pipe outer diameter
Wind loading
38.8 N at 200 km/h (8.7 lbf at 125 mph)
Weatherproofing
Device with outdoor cover: IP66
Hardware
Management interface
Ethernet
WiFi
Networking interface
(2) GbE RJ45 ports
LTE Category 4 radio
WiFi 4
PoE interface
(1) PoE input
(1) PoE output* (Max. 10W)
*Requires a PoE+ switch.
Power supply
UniFi PoE switch (48—54V DC)
USB Type-C (5V DC)
4-pin* ATX DC power socket (9—30V DC)
*Pin 1 for Power + and Pin 2 for Ground –. Please refer to the Installation Guide for detailed power socket pinout.
Max. power consumption
12.5W
SIM
nano-SIM (4FF)
LTE bands
B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
LTE throughput speed*
Download 150 Mbps / Upload 50 Mbps
*Speed depends on network coverage and performance at the device location.
WiFi standards
802.11 b/g/n, WiFi 2.4G, 20/40 MHz
Max. WiFi TX power
22 dBm
WiFi MIMO
2 x 2
GPS
Yes
Antenna SMA ports
(1) Mobile 1: SMA female connector, supports 1Tx and 1Rx
(1) Mobile 2: SMA female connector, supports 1Rx only
(1) GPS: SMA female connector
(2) WiFi: RP-SMA female connectors
Note: Ensure all SMA / RP-SMA connectors are secured with antennas or the provided caps to maintain weatherproofing.
External antennas
(2) Mobile/LTE antennas with SMA male connectors
(1) GPS antenna with SMA male connector
(2) WiFi antennas with RP-SMA male connectors
LED
Status: blue/white
Button
Factory reset
Mounting
DIN rail/wall/pole mount (Included)
Ambient operating temperature
-40 to 70° C (-40 to 158° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
Supported WiFi Data Rates
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)
- MPN: UMR-Industrial

GTIN: 810084693407
