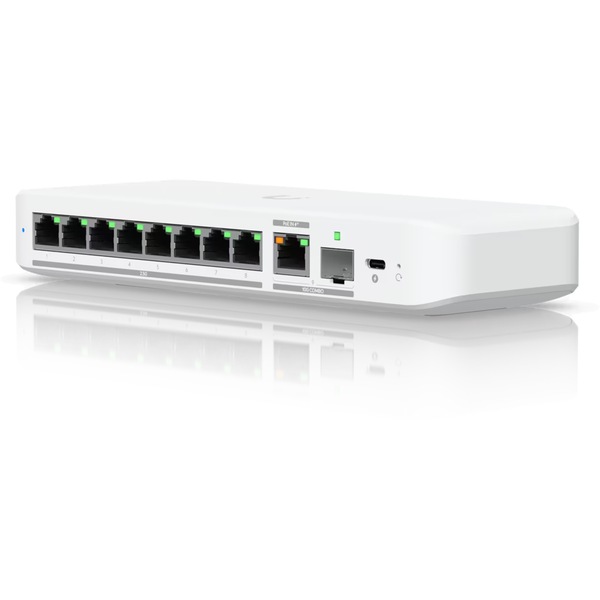

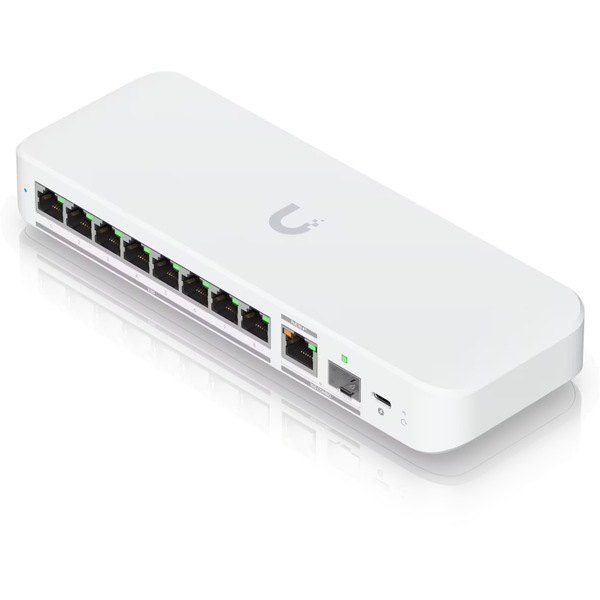

Ubiquiti UniFi USW-Flex-2.5G-8 10-Port 10G L2 Managed Switch - 10GbE PoE+/SFP+ Combo x1, 2.5GbE x8 [USW-Flex-2.5G-8]

Image 1
Image 2
Image 3
Image 4
Hurry! 12 items left!
$330.60

Collect 330 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Ubiquiti UniFi USW-Flex-2.5G-8 10-Port 10G L2 Managed Switch - 10GbE PoE+/SFP+ Combo x1, 2.5GbE x8

Flex 2.5G
Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.
- (8) 2.5 GbE ports
- (1) 10 GbE PoE+ input port for power / SFP+ port combo
- Optional powering with included 5V, 3A USB-C adapter

Mechanical

Dimensions
212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")

Weight
420 g (14.8 oz)

Enclosure material
Polycarbonate

Mounting

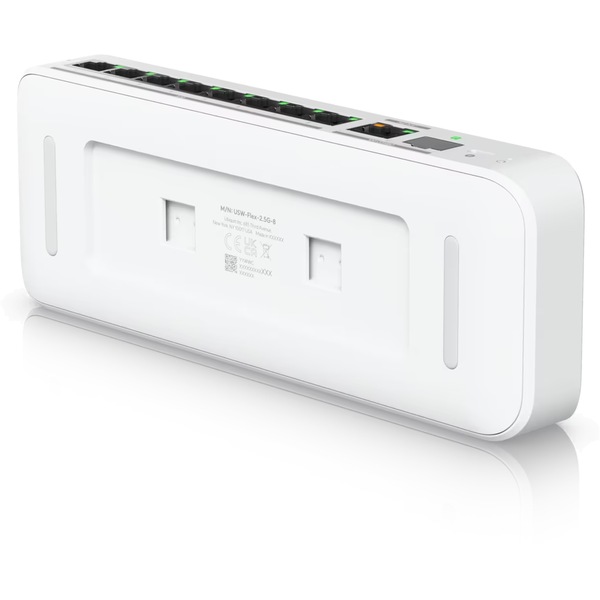

Wall-mountable (kit included)
DIN rail-mountable (sold separately)

Hardware

Management interface
Ethernet In-Band

Networking interface
(8) 2.5/1 GbE RJ45 ports
(1) 10G SFP+ or 10/5/2.5/1 GbE RJ45 combination port*
While only one is active, RJ45 can receive power and SFP+ can be utilized for data.

Total non-blocking throughput
30 Gbps

Switching capacity
60 Gbps

Forwarding rate
44.64 Mpps

Power method
(1) AC power adapter, 5V DC, 3A
(1) PoE+ (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)

Power supply
External AC/DC adapter
UniFi PoE switch

Supported voltage range
AC/DC input: 5V DC
PoE input: 42.5—57V DC

Max. power consumption
14W

Button
Factory reset

Ambient operating temperature
-20 to 45° C (-4 to 113° F)

Ambient operating humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Switching Features

Layer 2 features
STP / RSTP with priorities and port-level disable
Storm control
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Proprietary loop protection
Port isolation
Port mirroring

LEDs

System
Blue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted

Ethernet
Link/activity
PoE input

SFP+
Link/activity

Application Requirements

UniFi Network
Version 9.0.108 and later
- MPN: USW-Flex-2.5G-8

GTIN: 810084696149
