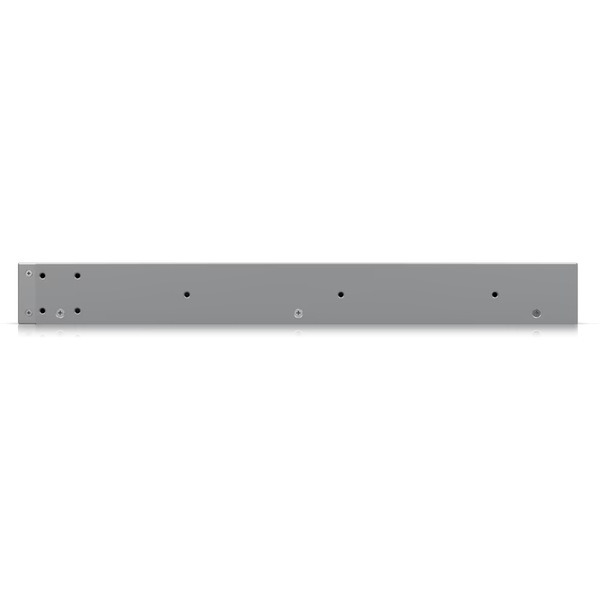

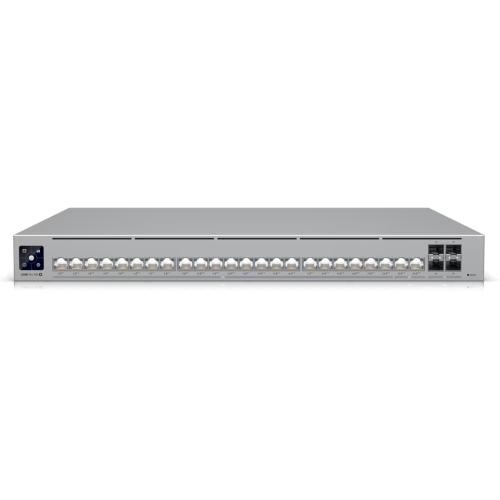

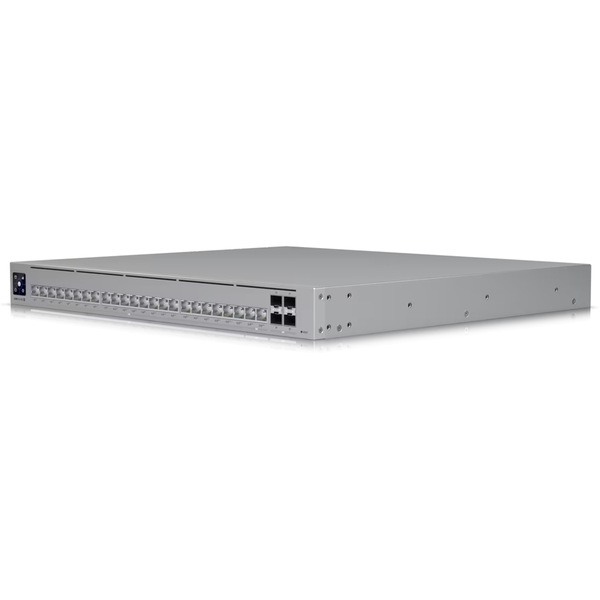

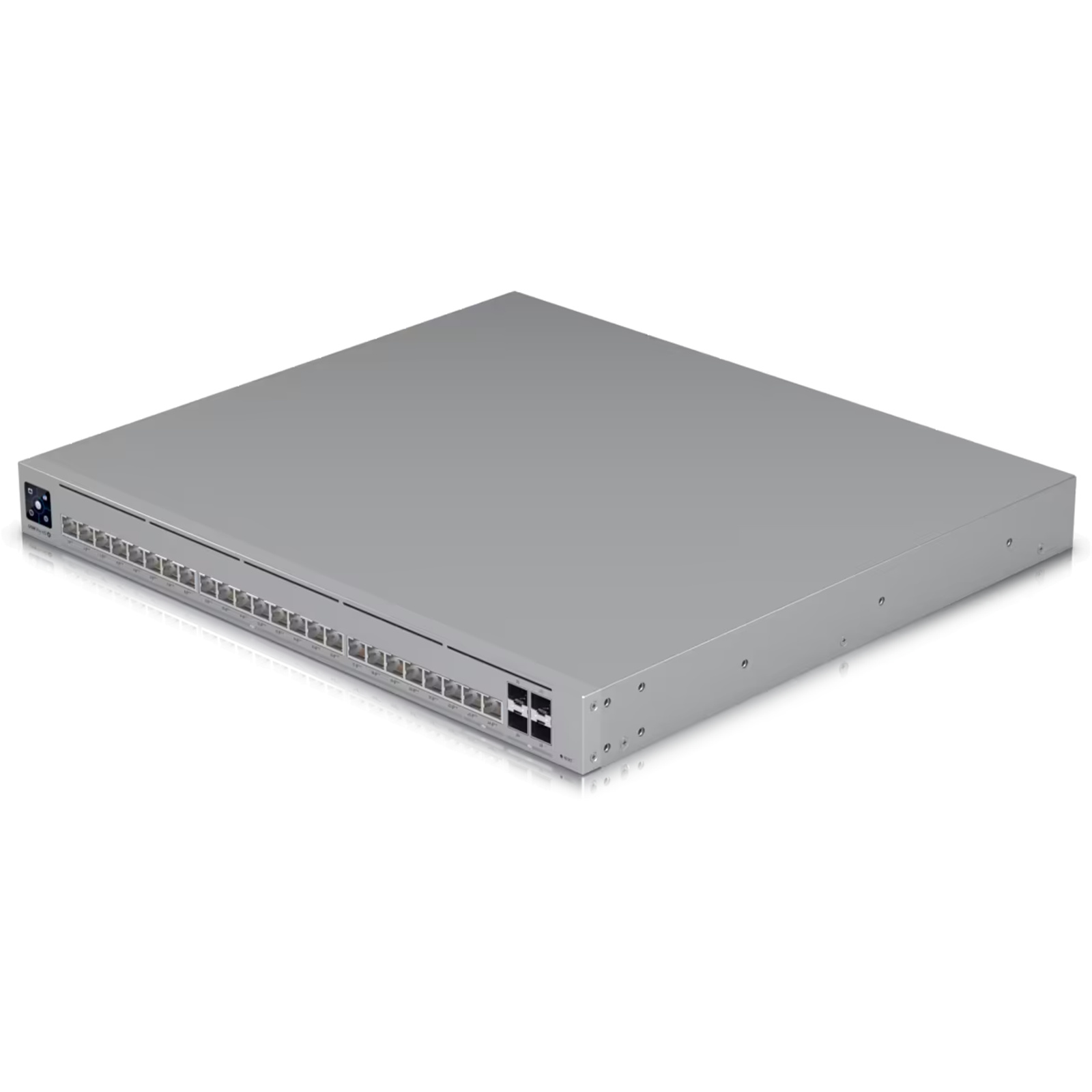

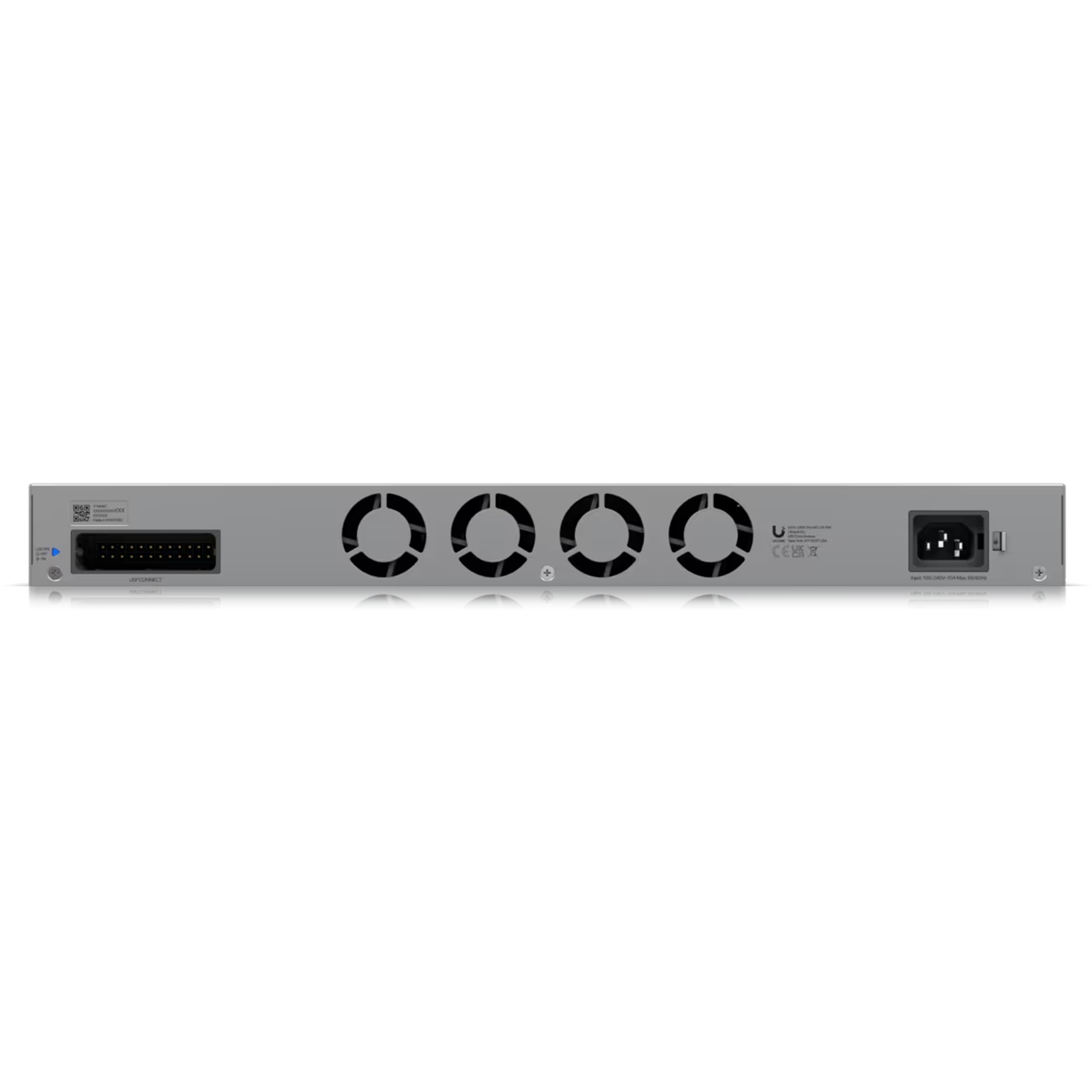

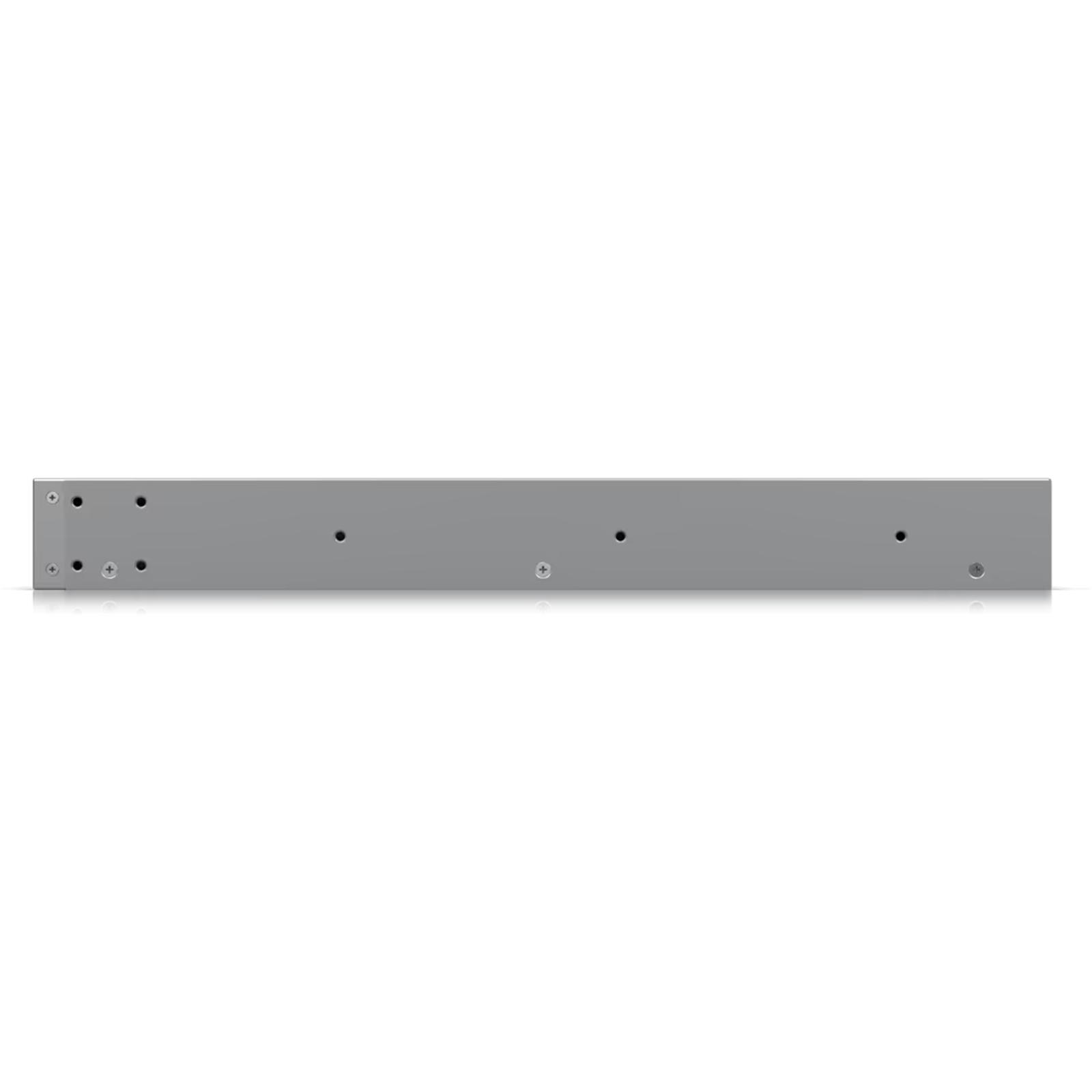

Ubiquiti Unifi USW-Pro-HD-24-PoE 28-Port 10G L3 Managed Etherlighting PoE Switch (600W) - SFP+ x4, 10GbE PoE++ x2, 2.5GbE PoE++ x22 [USW-Pro-HD-24-PoE]

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 3 items left!
$2086.77

Collect 2086 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Ubiquiti Unifi USW-Pro-HD-24-PoE 28-Port 10G L3 Managed Etherlighting PoE Switch (600W) - SFP+ x4, 10GbE PoE++ x2, 2.5GbE PoE++ x22

Pro HD 24 PoE
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (22) 2.5 GbE, (2) 10 GbE PoE++ ports
- (4) 10G SFP+ ports
- DC power backup ready**
- 600W total PoE availability
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires UniFi RPS.

Mechanical

Dimensions
442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")

Weight
Without mounting brackets: 6.4 kg (14.1 lb)
With mounting brackets: 6.5 kg (14.3 lb)

Enclosure material
SGCC steel

Hardware

Management interface
Ethernet In-Band

Networking interface
(2) 10/5/2.5/1 GbE, 100 MbE RJ45 ports
(22) 2.5/1 GbE, 100/10 MbE RJ45 ports
(4) 10/1G SFP+ ports

PoE interface
(24) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput
115 Gbps

Switching capacity
230 Gbps

Forwarding rate
171.12 Mpps

Power method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input

Power supply
AC/DC, internal, 660W

Supported voltage range
100—240V AC

Max. power consumption
56W (Excluding PoE output)

Total available PoE
600W

Max. PoE wattage per port by PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W

Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V

LCM display
(1) 1.3" touchscreen

Button
Factory reset

Ambient operating temperature
-5 to 40° C (23 to 104° F)

Ambient operating humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Switching Features

Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
QoS
Pro AV

Layer 3 features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

Etherlighting™

Ethernet
Locating
Speed/link
Native VLAN/network

SFP+
Locating
Speed/link
Native VLAN/network

LEDs

System
Status

RPS
Status

Application Requirements

UniFi Network
Version 8.6.9 and later
- MPN: USW-Pro-HD-24-PoE

GTIN: 810084696606
