Ubiquiti Unifi USW-Ultra-210W 7-Port Gigabit L2 Managed PoE Switch (202W) - 1GbE PoE+ x7 [USW-ULTRA-210W]

Image 1
Hurry! 16 items left!
$423.69

Collect 423 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

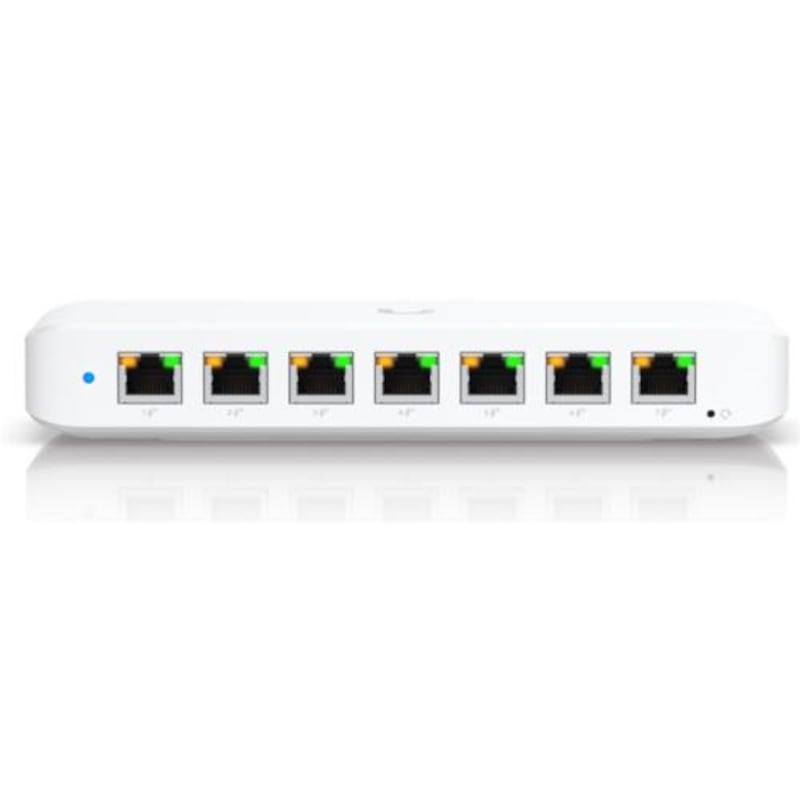

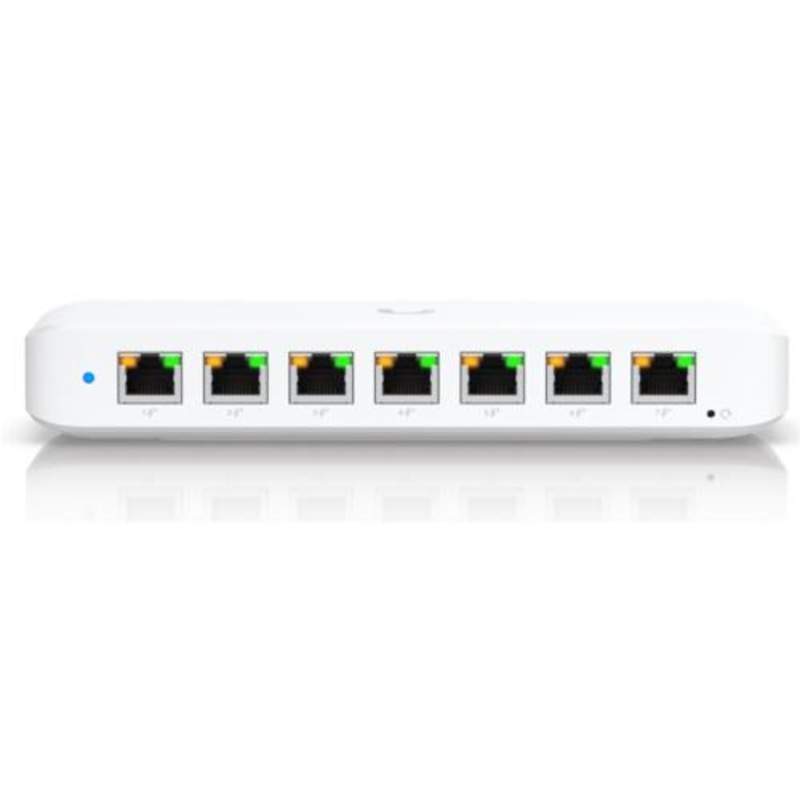

Ubiquiti Unifi USW-Ultra-210W 7-Port Gigabit L2 Managed PoE Switch (202W) - 1GbE PoE+ x7

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input*
- 202W PoE availability with the included AC power adapter

Mechanical
Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3")
Weight
Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
210W adapter: 770 g (1.7 lb)
Enclosure material
Polycarbonate
Hardware
Management interface
Ethernet In-Band
Networking interface
(8) GbE RJ45 ports
PoE interface
(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput
8 Gbps
Switching capacity
16 Gbps
Forwarding rate
11.904 Mpps
Power method
(1) 54V, 3.9A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
Power supply
54V, external, 3.9A/210W
Supported voltage range
44—57V DC
Max. power consumption
9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)
Total available PoE
PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W*
*At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)
Max. PoE+ wattage per port by PSE
30W
Button
Factory reset
Ambient operating temperature
PoE++ input: -30 to 60° C (-22 to 140° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Switching Features
Layer 2 features
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
LEDs
System
Status
Ethernet
PoE
Link/activity
Application Requirements
UniFi Network
Version 8.0.7 and later
- MPN: USW-ULTRA-210W

GTIN: 810084693711
