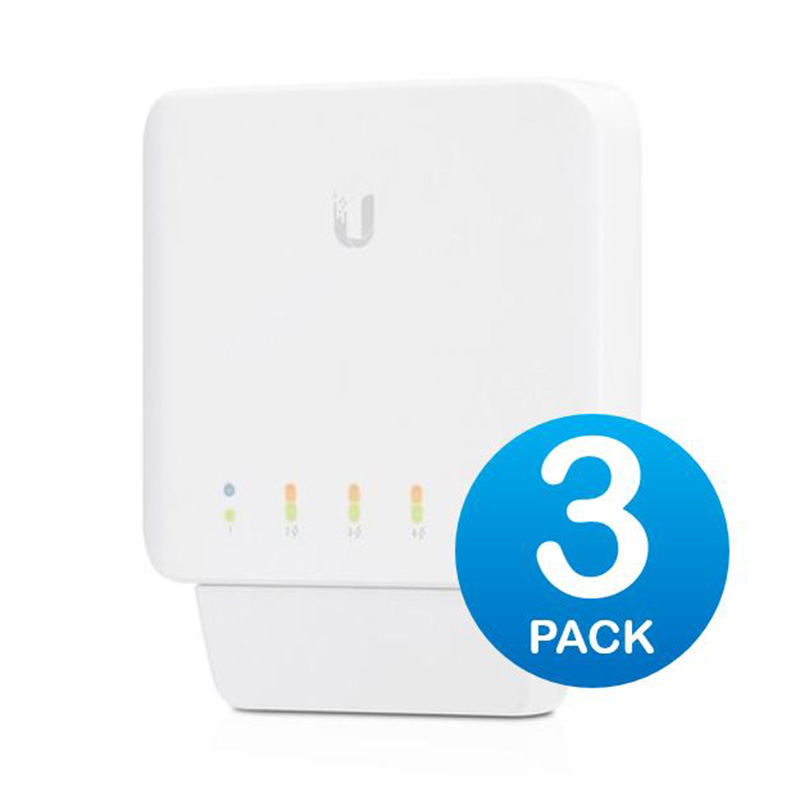

Ubiquiti USW-Flex 5-Port Layer 2 Gigabit Switch with PoE Support - 3 Pack (USW-Flex-3)

Image 1
Hurry! 4 items left!
$580.20

Collect 580 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

SPECIFICATIONS:

OVERVIEW


Dimensions

122.5 x 107.1 x 28 mm

(4.8 x 4.2 x 1.1")

Port Layout

1 GbE RJ45



5 (4 PoE+; 1 PoE++)

Max. PoE Output

Up to PoE+

Total PoE Availability

46W

Form Factor

Compact desktop, wall, pole

PERFORMANCE


Switching Capacity

10 Gbps

Total Non-Blocking Throughput

5 Gbps

Forwarding Rate

7 Mpps

Supported VLANs

1,000

MAC Address Table Size

2,000

LAYER 2 FEATURES


Egress Rate Limit



Flow Control



Port Isolation



Port Mirroring



Jumbo Frames



HARDWARE


PoE Ports

PoE+

PoE++



4

1

Max. PoE Wattage per Port by PSE

PoE+



25W

Max. Power Consumption

5W (Excluding PoE Output)

51W (Including PoE Output)

Power Method

PoE++

Power Input Method

PoE

Supported Voltage Range

50—57V PoE

Management

Ethernet

Heat Dissipation (Excluding PoE Output)

17.06 BTU/hr

Weight

230 g (8.1 oz)

Ambient Operating Temperature

46W PoE output: -40 to 55 C (-40 to 131 F)

25W PoE output: -40 to 65 C (-40 to 149 F)

ESD/EMP Protection

Air/contact: 16kV

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC




SKU: 81824
