Searching for a smart DVR to complement to your CCTV system : Look no further than the UT UL-Tech 4-channel DVR. An innovative 5-in-1 1080N DVR that is packed with the latest technological features to make close circuit'surveillance effective and efficient. The DVR supports a number of camera technologies including AHD, TVI, CVI CVBA and IP camera as well as P2P technology. The unit can be assessed remotely and comes with customisable motion detection for live viewing on your smartphone or desktop computer. It can also be made to send out an email alarm to your devices in the event of unauthorized entry into your home or facility. Better still, all the events can be recorded smoothly and the smart playback makes locating incident clips fast and easy. Behind the unit, there are HDMI, VGA and USB outputs for versatile connectivity and the DVR is also compatible with cloud technology. Not least, all your recorded data is safely protected when power outage occurs. Included with your purchase are all the accessories for a quick set-up with minimum hassle.

Note: This product require a Hard Drive (not included) to record the video

Features:

4 Channel 1080N 5-in-1 DVR

?

Supports AHD, TVI, CVI, CVBS and IP camera

?

Support P2P technology

?

Remote access

?

View on phone or computer

?

Customisable motion detection

?

Instant E-mail alarm

?

HDMI and VGA outputs

?

Support USB backup and storage

?

Data protection on power outage

?

Support 4-channel simultaneous live viewing via smart phone

?

Support Capture and Record in smart phone

?

Support Cloud system : for Remote Access/Support HDMI Output

?

Bonus USB mouse

?

Specifications:

Video

?

Codec: H.264

?

Monitor quality: VGA,HDMI: HD

?

Preview ability: 4*1080N

?

Encode ability: 4*1080N@12fps

?

Decode ability: 4*1080N@12fps

?

Multi-mode input: analog: 4*1080N; 4*AHD-M; 4*AHD-L

?

hybrid: 4*1080N(analog)+4*960P(network)

?

Network only: 4*720P; 4*1080P; 8*720P; 8*1080P; 1*1080P

?

Motion detection:

?

Each screen can be set to 192 (16 * 12) detection areas;

?

multi-level sensitivity can be set (Limited local channel)

?

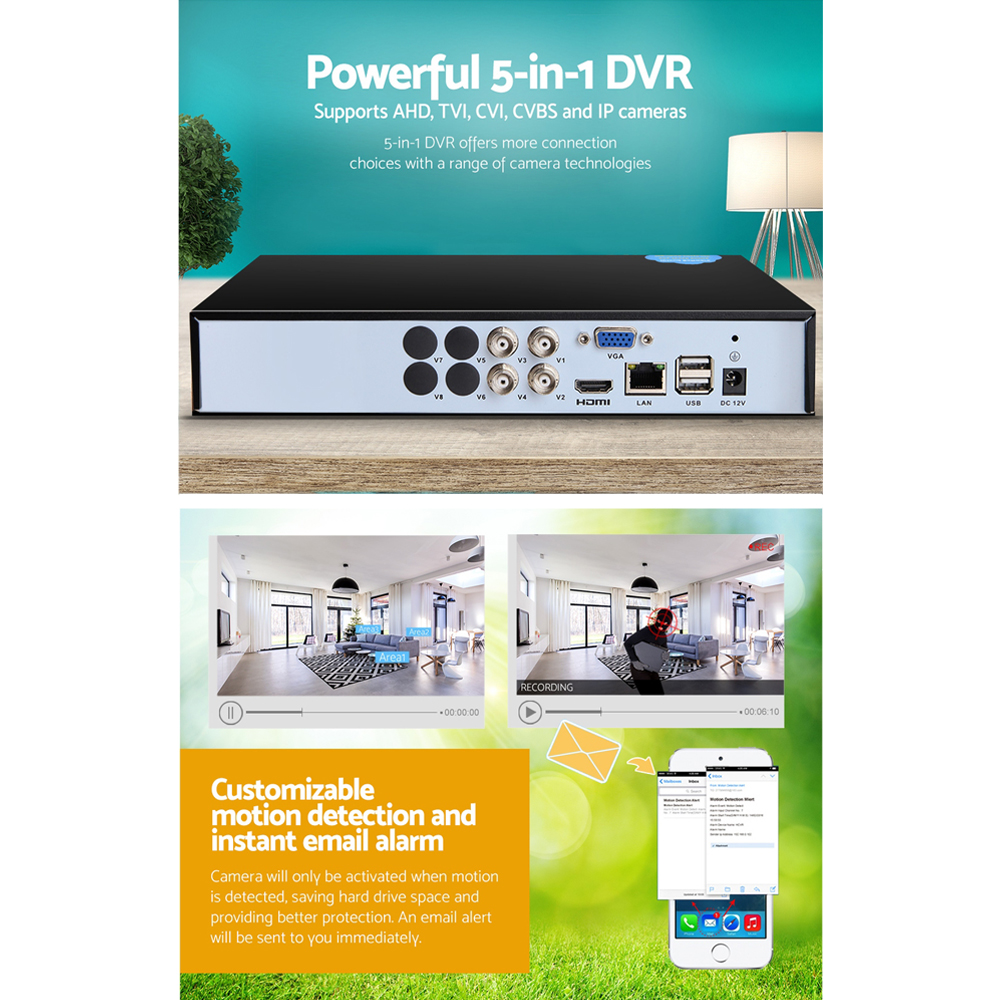

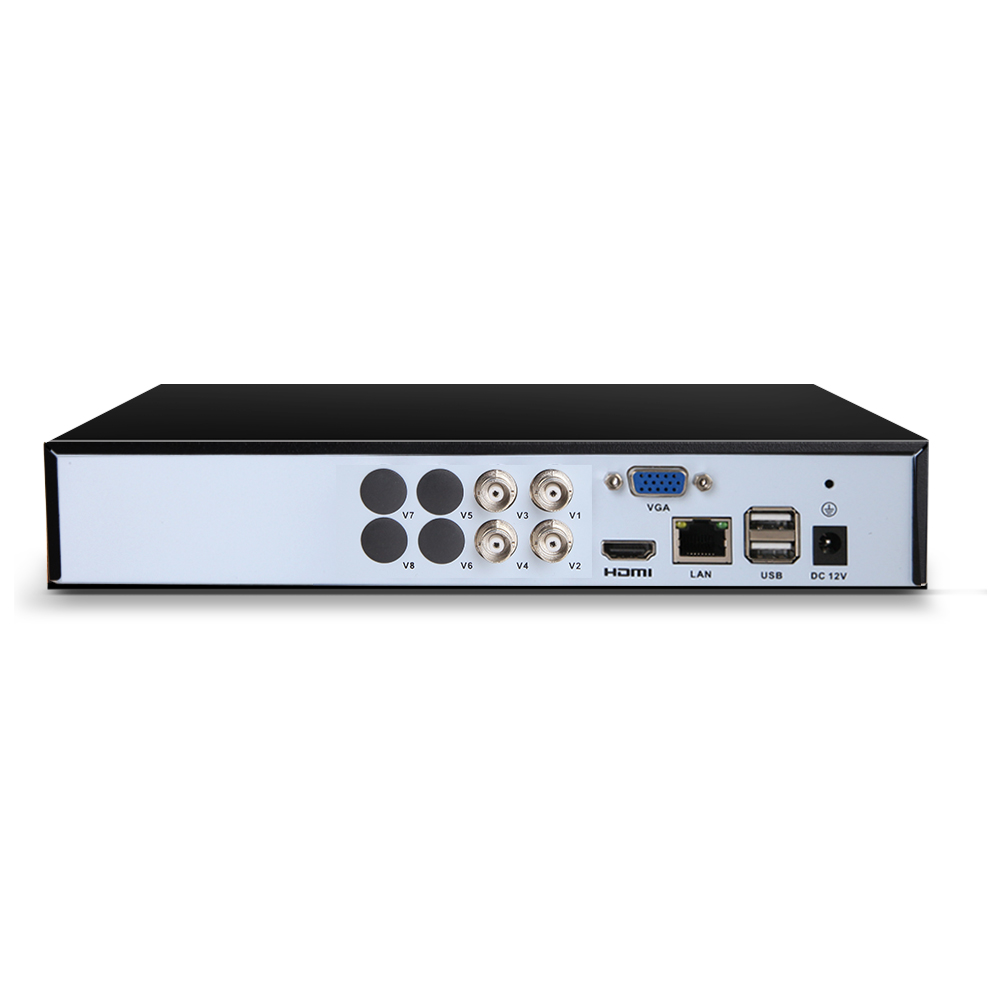

External Interface

?

Video input: 4ch BNC

?

Video output: 1ch VGA, 1ch HDMI

?

Loop vout: N/A

?

Audio I/O: 0/0

?

Alarm I/O: 0/0

?

Network interface: RJ45 10M/100M self-adaption

?

PTZ control: 1*RS485, Support kinds of PTZ protocols

?

USB: 2* USB 2.0 ports

?

HDD : 1*SATA ports (Max 6TB/per)

General

?

Power supply: 12V/2A

?

Record and playback

?

Record mode: manual>alarm>motion detection>timing

?

Local playback: 8ch(local input mode)

?

Search mode: Search by time, calendar, event, channel

?

Storage and backup

?

Video storage: HDD, network

?

Backup mode: Network, USB hard disk, USB burner, SATA burner

?

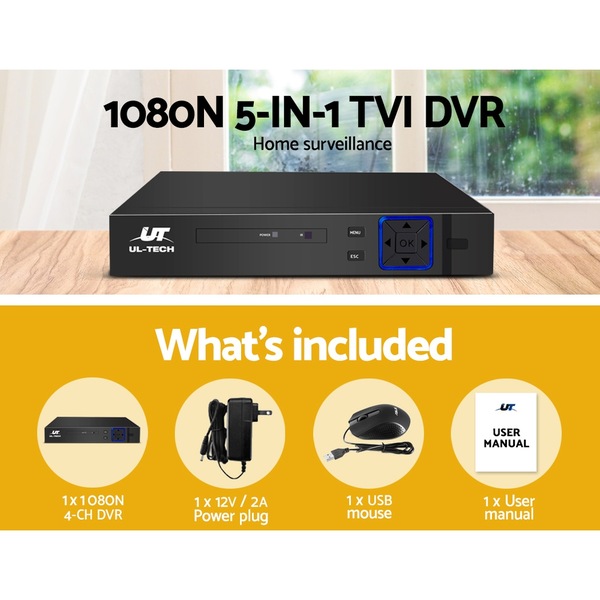

Product Contents:

1080N 4CH DVR x 1

?

12V/2A power plug x 1

?

USB mouse x 1

?

Network cable x 1

?

Mounting screws pack x 1

?

This product comes with 1 year warranty
