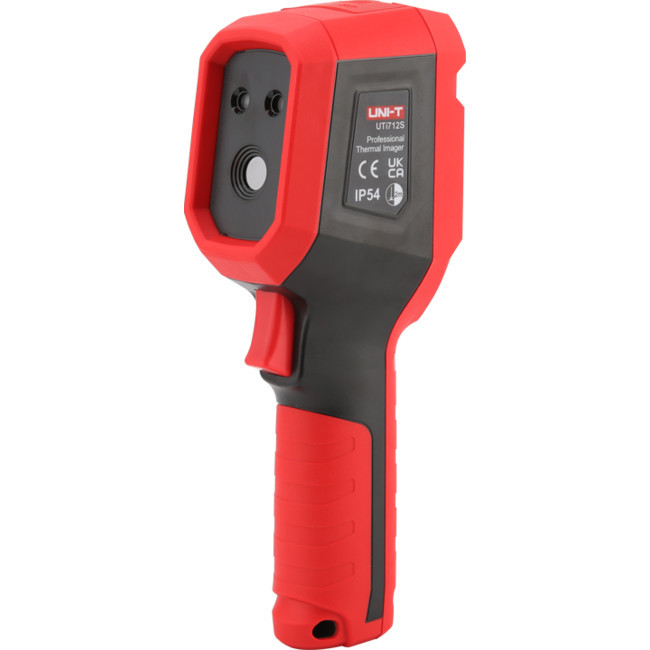

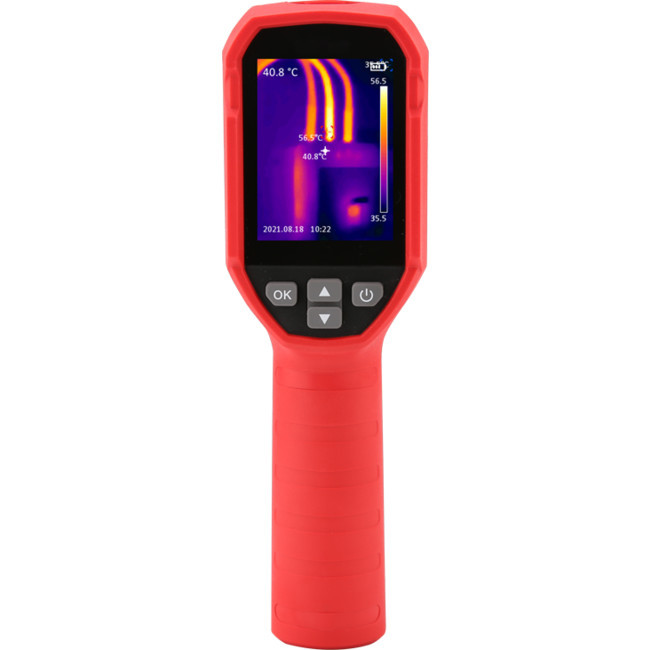

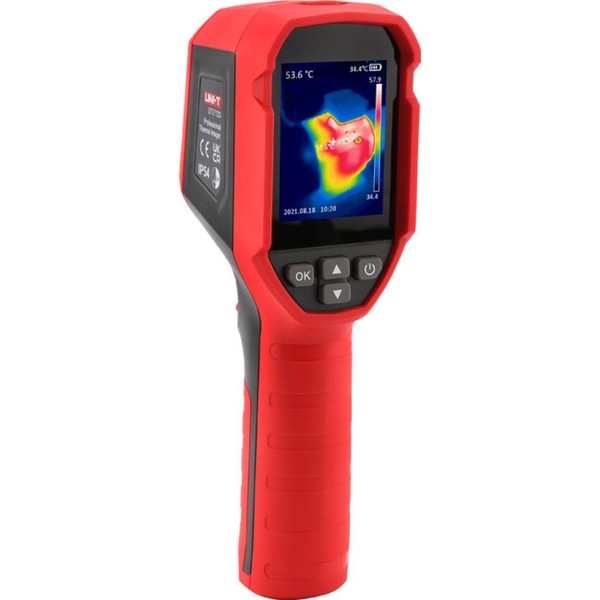

UNI-T UTI712S 2.4" TFT LCD PROFESSIONAL THERMAL IMAGER IR 120X90 IP54 25HZ -20 C ~ 400 C

Image 1
Image 2
Image 3
Hurry! 14 items left!
$399

Collect 399 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

UTi712S is a compact thermal imager with a quality build. It is one of the best prices for performing thermal imagers in the market today. Some special features include temperature compensation (which allows more accurate readings under different temperature environments). This rugged thermal imager has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.

FEATURES

  • IR resolution: 120x90 pixels
  • 2.4" TFT LCD display (320*240 Resolution)
  • 6 Palettes (White hot, Black hot, Iron, Rainbow HC, Rainbow, Lava)
  • Emissivity: Adjustable (0.01-1.00)
  • Display mode: Thermal
  • Temperature compensation
  • Image capture
  • Laser indicator
  • LED flashlight
  • Auto tracking for Lo/Hi temperature
  • Auto Lo/Hi temperature alarm
  • Storage: 32GB Micro SD Card supplied
  • PC software Analysis
  • Multi-languages: English, German, French, Russian, Spanish
  • Protection: IP54 waterproof and dustproof, 2m drop proof
  • USB Type-c Charging
  • 1/4" tripod mounting hole
  • Rechargeable Li-ion battery built-in.

WHAT IS IN THE BOX?

  • UTi172S x 1
  • Hand strap x 1
  • 32G Micro SD card x 1
  • USB-A to USB-C Charging cable x 1
  • Manual x 1
  • Download operation guide card x 1

APPLICATIONS

  • Building & HVAC,
    Pipeline inspection, House water leakage inspection, Air conditioner outlet inspection, Sealing of doors and windows inspection.
  • Automotive Maintenance, Engine Inspection,
  • Electricity
    Power distribution cabinet inspection, Electric power tower inspection, Solar panel inspection
  • Outdoor
    Animal observation, Security

SPECIFICATIONS

Technical Data
IR resolution (Pixels) 120x90 (10800)
Sensor Uncooled infrared focal plane
thermal imaging sensor
Pixel size 17um
Minimum imaging distance 0.1m
Display 2.4" TFT LCD (320x240)
Field of view(FOV) 50oHx38oV
Thermal sensitivity(NETD) 60mK
Spatial resolution(IFOV) 7.3mrad
Frame rate 25Hz
Infrared spectrum bandwidth 8~14um
Focus Focus Free
Temperature measurement range -20oC~400oC
Accuracy 2oC or 2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Measurement units oC/oF
Resolution 0.1oC
Functions
Color palettes 6
(White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava)
Image modes Thermal
Hi/Lo temperature alarm Icon,LED flashlight,Buzzer
Temperature display Center point temperature,
high/low temperature tracking
Buttons 4 buttons (power, up, down, OK) 1 trigger
PC software analysis Yes
Laser pointer Yes (Class 2)
LED light Yes
General Characteristics
Battery Fixed Li-ion battery (3.7V 2600mAh) 18650
Battery operation time 8 hours
Charging time 2.5h
Charging voltage/current 5V /2A
Power on speed 0s (wake up) / 5s (power on)
Auto power off 5min/10min/30min(default)/off
USB Type-C
IP rating IP54
Drop proof 2m
Operating temperature 0-50 oC ( 32-140 oF)
Storage temperature -20 -60 oC (-4 -140 oF)
Operating humidity < 85%RH
Image storage 16GB Micro SD card
Image/Video storage format BMP
Certificates CE,UKCA,FCC,RoHS
Product net weight 310g
Product size 197mmx72mmx60mm

GTIN: 6935750571217
