The MIG250SWF is an inverter-based MIG welding machine with added MMA and DC TIG function.
MULTI PROCESS WELDING:This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

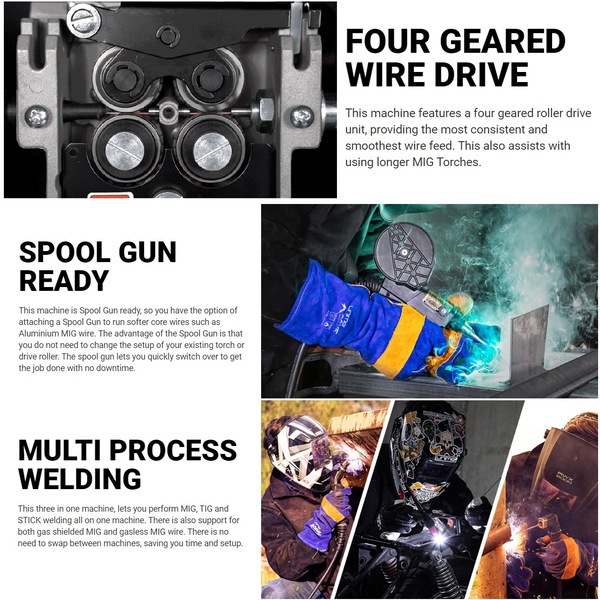

FOUR GEARED WIRE DRIVE:This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.
SEPARATE WIRE FEEDER:Don’t get tied down. A separate wire feeder unit lets you remove the wire feeder from the power source up to a distance of 10m. This is perfect for workshops when moving a complete machine isn’t an option.
SPOOL GUN READY: This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.
PUSH-PULL READY: Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.
HIGHEST QUALITY WELDS: Offering nothing but the best, this machine has been designed to offer the highest quality welds available from UNIMIG. With superior welding technology, no corners have been cut to make this machine the most powerful in its class.
Key Features
WHAT CAN IT WELD
- Steel
- Stainless Steel
- Aluminium
- Copper
- Cast Iron
- Low Hydrogen
PACKAGE CONTENTS
1 x Razor MIG 250 SWF Power Source
1 x SWF Wire Feeder
1 x SB24 4 metre MIG Torch
1 x 10 metre Arc Welding lead set including twist lock electrode holder & 500 Amp earth clamp
1 x 10 metre Interconnecting cables
1 x MIG Trolley
1 x UNIMIG Twin Gauge Argon Regulator
1 x 2 metre Gas Hose with connections
1 x Instruction Manual
SPECIFICATIONS:
Part Number: KUMJR250SWF
Primary Input Voltage: 240V 1 Phase
Rated Input Power : 10.8 KVA
ieff AMPS: 26.6A MIG / 28.0A MMA
Rated Output MIG: 30A/15.5V - 250A/26.5V
Rated Output MMA 10A/20.4V - 250A/30.0V
Welding Current Range 10 - 250 Amps
Duty Cycle 40 Deg C - MIG 35% @ 250 Amps
Duty Cycle 40 Deg C - MMA 35% @ 225 Amps
Dimensions: 630 x 235 x 420mm
Weight Power Source: 40.6 kg
Weight Wire Feeder: 14 kg
MPN: UMGKUMJR250SWF
Reference ID: 933880
