Specification

Material: ABS

Color: Black

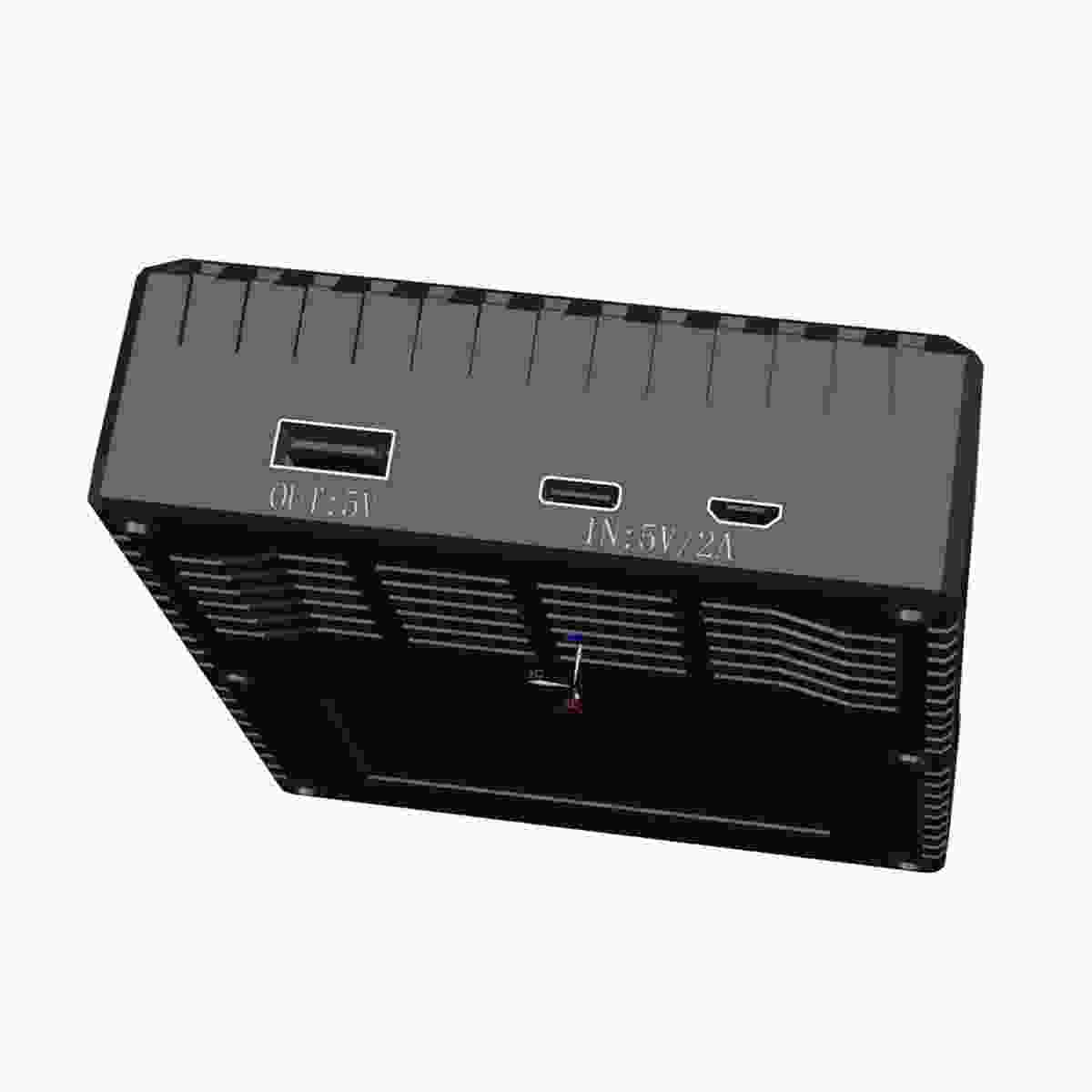

Input voltage : Type-C/Micro DC 5V 2A

Output Voltage :4.35andplusmn;0.1%/4.2Vandplusmn;0.1%/1.48Vandplusmn;0.1% 9V(6F22) andplusmn;0.1%

Output Current: Li-ion: 1000mA*2(High)/500mA*4(Low)

Ni-MH/Ni-Cd: 1000mA*2(High)/500mA*4(Low)

9V(6F22):100mA*3

Compatible with:

Li-ion/IMR/INR/ICR/LiFePO4:

10340,10350,10440,10500,12340,12500,12650,13450,13500,13650,14350,14430,14500,14650,16500,16340(RCR123), 16650, 17350,17500,17650,17670,1350,18490,18500,18650,18700,20700,22500,22650,25500,26500,26650 9V(6F22)

NI-MH/Ni-Cd: AA, AAA, AAAA, C 9V(6F22)

Size: 126.6mm*97mm*33mm(L*W*H)

Features

Excellent circuit design

Detect battery capacity in charger

Designed by optimal heat dissipation

Support small capacity battery charging

Support for lithium battery repair function

Up to 1000mA charging speed I a single slot

High precision Calibration of voltage source

Each battery slot controls and charges independently

Automatically stops charging upon charging completion

Reverse polarity protection and short circuit prevention

Compatible with DC Type-C,Micro Charging function Made of fire

Automatically detects battery power status and displays charging progress

Compatible with all different type of cylindrical rechargeable lithium battery

Compatible with batteries of Li-ion(4.2v/4.35v) 9V(6F22) LiFePO4(3.6v),Ni-MH/Ni-Cd(1.48v) 9V(6F22)

Operating Instructions

Connect one side of cable to Charger, the other side to DC 5V 2A charger. When the power is on, LCD back-light will shine, and the charger will automatically detect the power condition, meanwhile LCD will show all the data, 3 second later, LCD will show NULL and the 3 9V symbols.

Install Battery

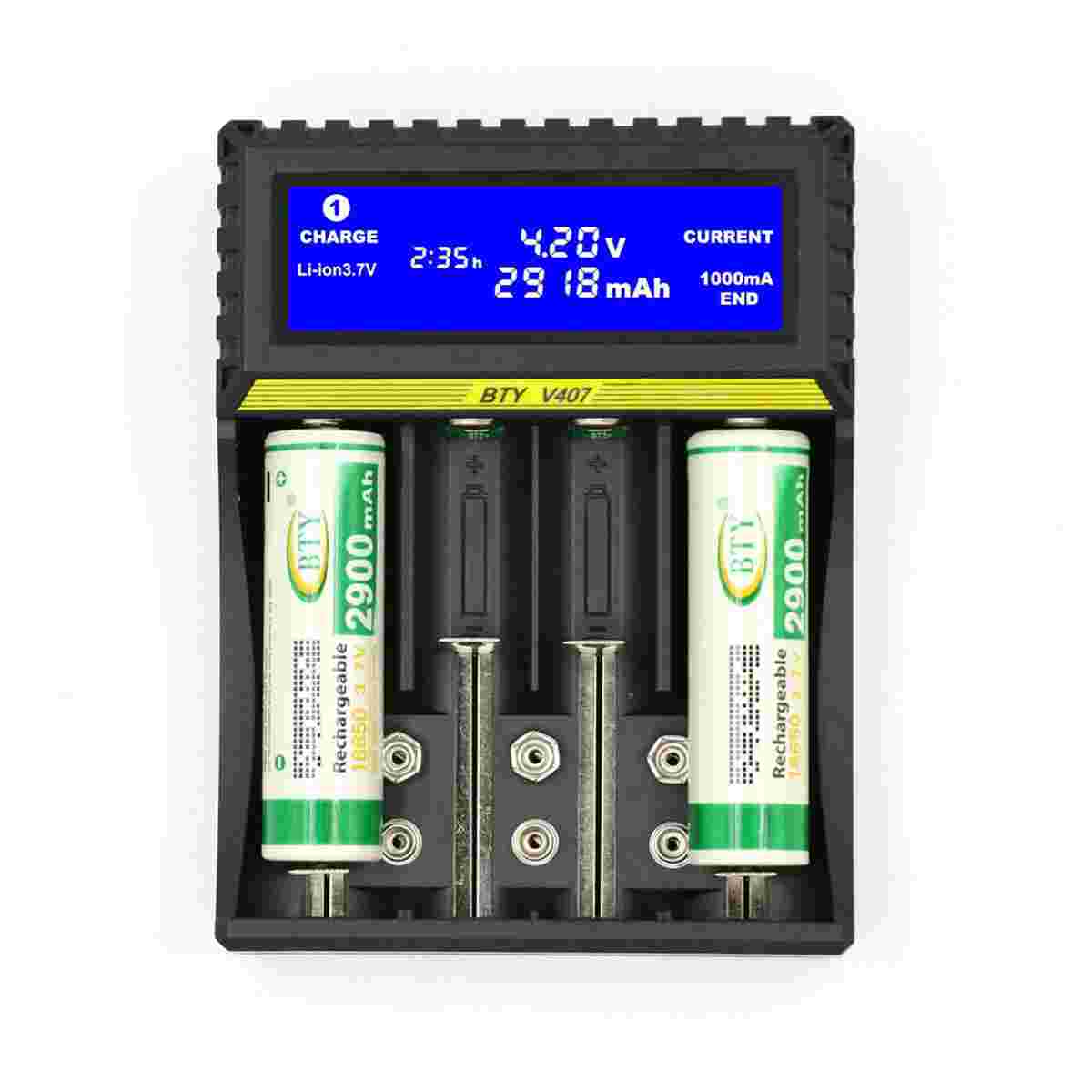

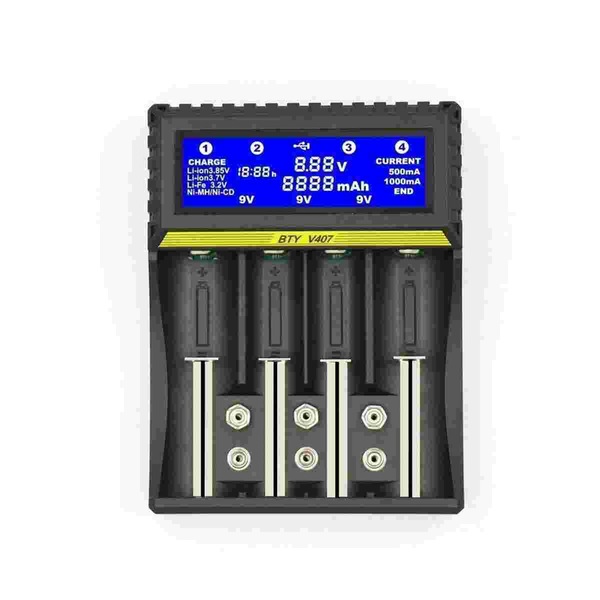

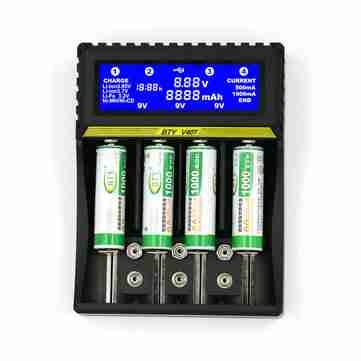

Charger has 4+3 charging slots, each charging slot controlled independently, support single battery charging mode, mixed battery charging mode, User can put different type battery into slots with the correct polarity position according to the marking.

Package included:

1 X Li Battery Charger (battery not included)

1 X USB Cable

1 X English Manual
