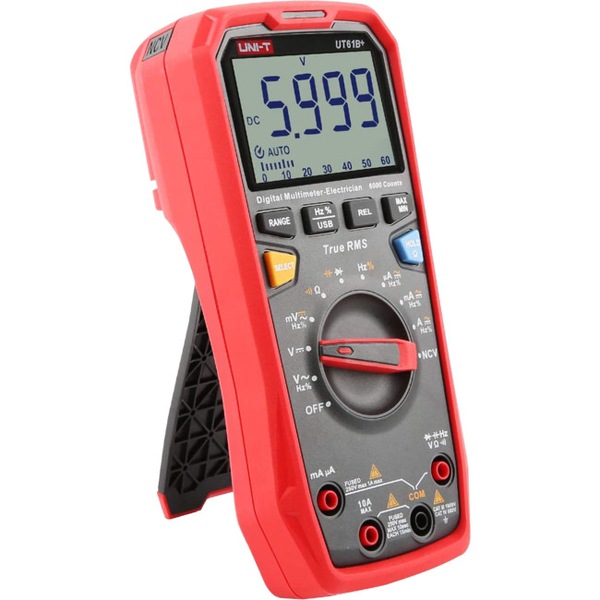

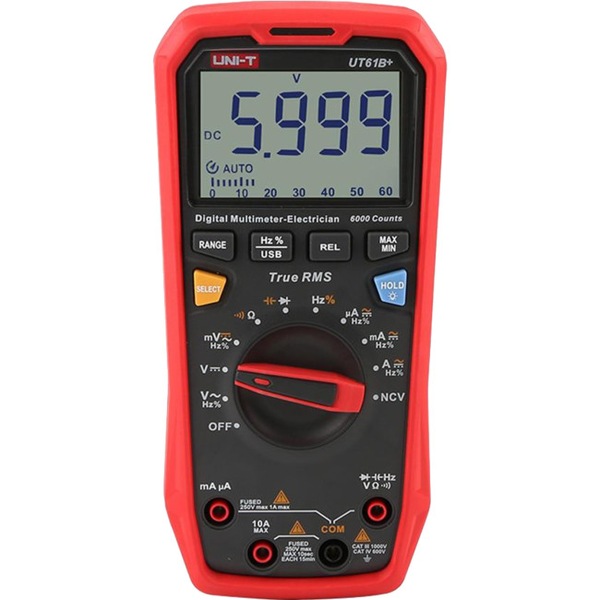

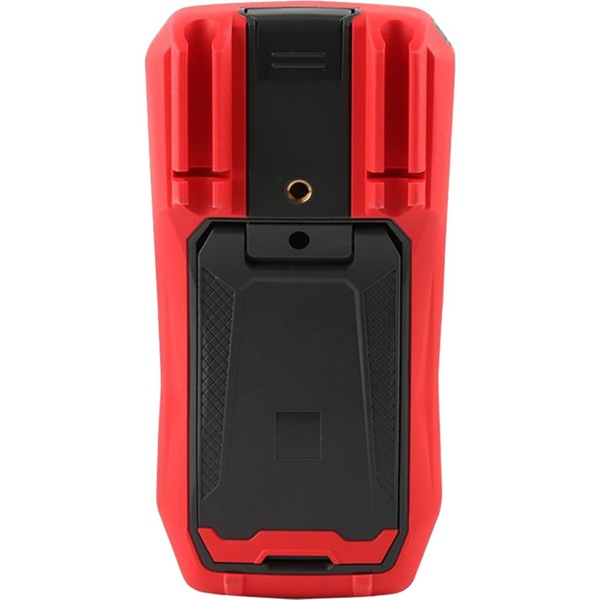

UNI-T UT61B+ Modern Digital Multimeter W/USB True Rms 1000V

Image 1
Image 2
Image 3
Hurry! 10 items left!
$96.95

Collect 96 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
UT61B+ is a True RMS digital multimeter with display counts 6000. It can measure up to 1000V AC/DC. Equipped with audible and visible alarms, it can provide warning, especially when measuring high voltage/current and temperature.
With the USB connection, you can export the test results to your PC in Excel file.
Features
  • True RMS
  • Data hold/backlight
  • Max/Min/Relative mode
  • USB communication
  • Input protection
  • Diode/continuity test
  • NCV Non-Contact Voltage (audible/visual alarm)
Specifications
Specifications Range UT61B+
Safety ratings CAT III 1000V/CAT IV 600V
AC voltage (V) 1000V ±(1%+3)
DC voltage (V) 1000V ±(0.5%+3)
AC current (A) 10A ±(1.2%+5)
DC current (A) 10A ±(1%+2)
Resistance () 60M ±(1%+2)
Capacitance (F) 60mF ±(3%+5)
Frequency (Hz) 10MHz ±(0.1%+4)
Duty cycle (%) 0.1%~99.9% ±(2%+5)
Display count 6000
Bandwidth (Hz) 40Hz~500Hz
Analog bar 31
General Characteristics
Power 1.5V battery (R03) x 4
Product net weight 350g
Product size 190mm x 90mm x 50mm
Standard accessories Battery, gold plated test leads, USB cable, English manual
Standard individual packing Gift box, cloth bag
Standard quantity per carton 20pcs
Standard carton measurement 480mm x 370mm x 365mm
Standard carton gross weight 15.2kg
