Features:
?

DVB Finder DVB-S2 Multi standard demodulation & decoding

bluetooth connection for Android APP and Apple APP

Support full satellite selection

Specifications:
?

Size(L x W x H): Approx.42 x 95 x 15 mm

Flash Memory: 32MB Serial Flash

DDR2 Memory: 512M Bits

LED Indicator: Blue (Flashing: Not connected, Normally on: connected)

LNB IN? (Frequency Range950MHz to 2150MHz DVB-S/S2)

Micro USB: DC 5V 1.5A
?

System introduction:
?

DVB-S:

DVB-S/S2 system standard: ETS 302 307(SCPC and MCPC? receivable from C/Ku band satellite)

DiSEqC1.0support, 13/18V DC @ 350mA MAX,Overload Protection, 0/22K

Multi standard demodulation & decoding

DVB-S2 CCM,QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK+3/4, 4/5, 5/6, 8/9, 9/10

Legacy DVB-S,QPSK+1/2, 2/3, 3/4, 5/6, 7/8

VCM mode supported

Dummy frame insertion supported

Automatic standard recognition

Support 1 to 60Mbaud symbol rates

Fast channel blind scan for RF frequency & symbol rate acquisition

High performance equalizer, canceling echo introduced by front end

Simple AGC – Tuner interface

Build in DC cancellers to remove DC component

IQ imbalance compensator

Automatic roll-off factor (0.35/0.25/0.20) detection

Automatic spectrum inversion

Signal quality and statistic, allowing improved monitoring and debug

Package Included:

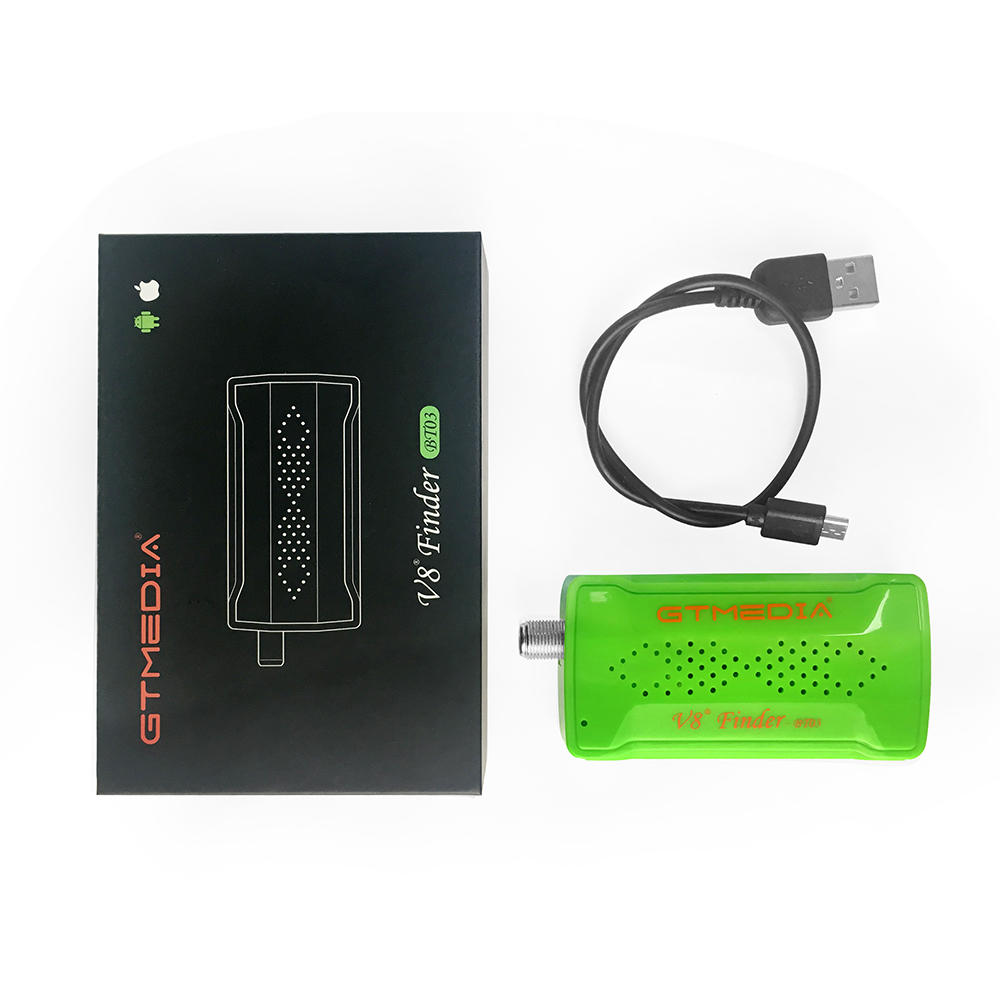

1 x V8 Finder BT03 Satellite Finder
