Vanguard VEO TSA S Short Support Arm for Tripod
(Vanguard V250281)

We Think You Should Know

• Short Support Arm ONLY
• Fits any tripod/accessory with a 1/4" (or 3/8" thread hole using adaptor provided)
• Fits any accessory with 1/4" thread hole
• Folds to 63mm x 40mm
• Extends to 115mm
• Weighs 100g
• Maximum load capacity 2kg
• Single, oversized locking knob for easy use
• CNC machined

Overview

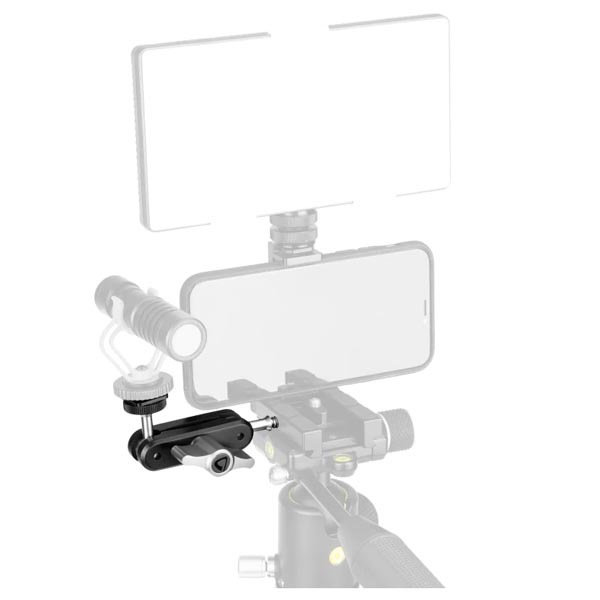

The Vanguard VEO TSA S is a simple CNC-machined support arm that attaches to the central column canopy of suitable tripods and allows you to connect a range of accessories to it, such as lighting or microphones, to help you make the most of your gear setup.

To attach to your tripod canopy or accessory, you have a 1/4" thread, with a 3/8" adaptor for larger tripods. For maximum grip, you can tighten the removable plastic disc against the tripod.

To attach to the accessory of your choice, there is a 1/4" thread that can screw directly into selected items, or it can screw into one of Vanguard's cold shoe mount accessories to attach a wider range of gear, or the VEO TC tablet connector.

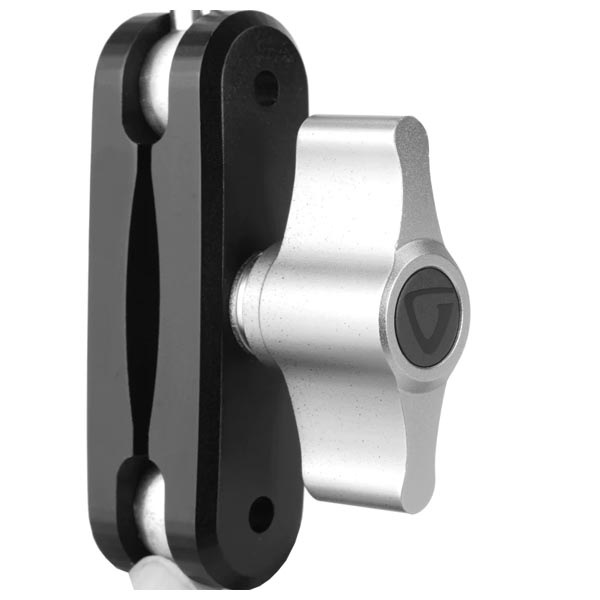

Once the support arm is attached to your tripod, setting the position of the VEO TSA is all controlled through the single locking knob, which is oversized for easy grip. Loosening the locking knob frees the support arm angle joint, so if you have your accessory on it when loosening, please make sure you're supporting it to prevent falling. Position the arm and accessory where it needs to be, and tighten the locking knob. It's as simple as that.

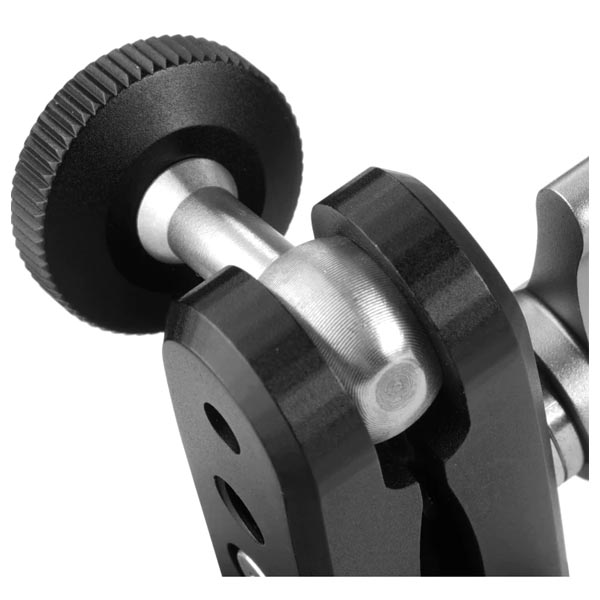

The VEO TSA support arm joint is constructed using stainless-steel ball joints to allow you to place your accessory into optimal position, and this allows this model to support up to 4.4 lbs (2kgs).
