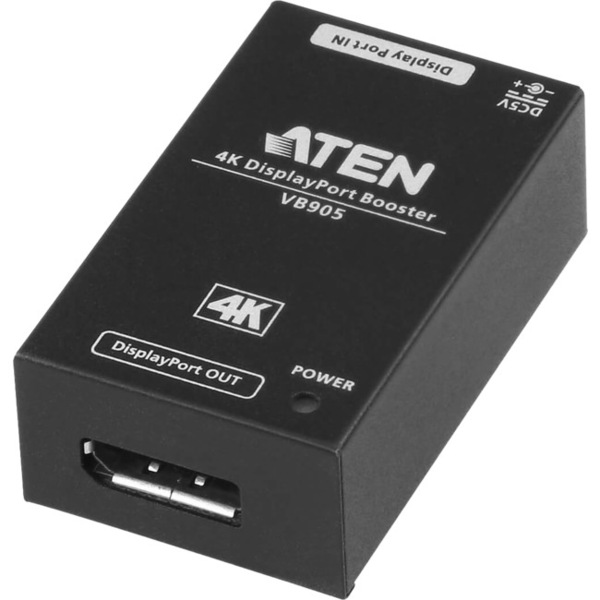

ATEN VB905 4K Displayport Booster Upto 5M Extends True 4K Signal Transmission Up To 5M 4K
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
ATEN VB905 extends True 4K signal from a source device to a display up to 5 meters. For long distance transmission, the VB905 can be cascaded up to 3 levels (20 meters), guaranteeing ultimate color and image quality.
The VB905 supports all DisplayPort enabled devices. For installation flexibility, the booster can be rack mounted, offering excellentfl exibilityfor managing both work and home settings.
Video Input | |
Interfaces | 1 x DisplayPort Female (20-pin) |
Max. Distance | Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m |
Video Output | |
Interfaces | 1 x DisplayPort Female (20-pin) |
Max. Distance | Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m |
Video | |
Max. Data Rate | 21.6 Gpbs (5.4 Gbps Per Lane) |
Compliance | DP1.2a HDCP 2.2 |
Max. Resolution | 4096 x 2160@60Hz (4:4:4) |
Connectors | |
Power | 1 x DC Jack |
Power Consumption | DC5V:0.937W:4BTU |
Environmental | |
Operating Temperature | 0 - 40°C |
Storage Temperature | -20 - 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.05 kg ( 0.11 lb ) |
Dimensions (L x W x H) | 5.84 x 3.53 x 2.06 cm (2.3 x 1.39 x 0.81 in.) |
Carton Lot | 10 pcs |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
GTIN: 4719264646461
Reference ID: 1011876
