ATEN VC812 HDMI VGA Converter With Scaler Audio Converts HDMI Signals To VGA Output HDMI VGA
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 403 Everyday Rewards points
Collect 403 Everyday Rewards points
The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performingscaling engine that converts the video resolution to give you the best image quality.

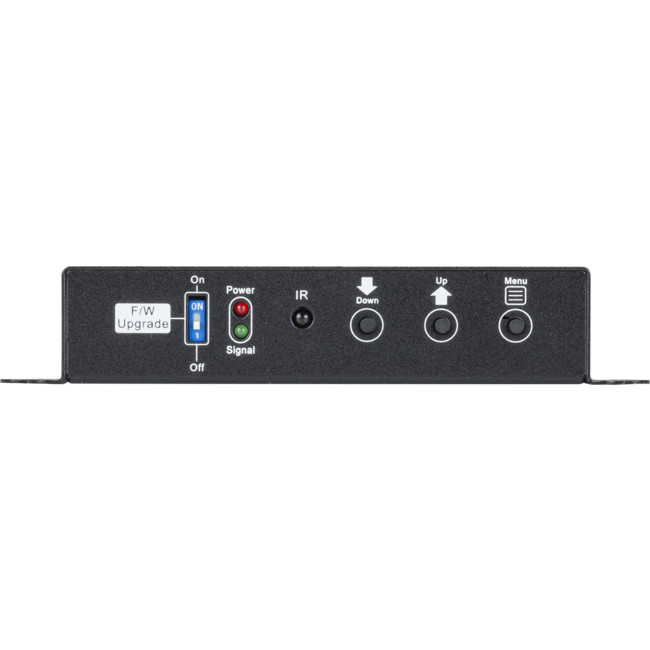

You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.
ideo Input | |
Interfaces | 1 x HDMI Type A Female (Black) |
Impedance | 100 ? |
Video Output | |
Interfaces | 1 x HDB-15 Female (Black) |
Impedance | 75 ? |
Video | |
Max. Pixel Clock | 165 MHz |
Max. Resolution | Up to 1920 x 1200 |
Scaler Resolutions | 480p; 480i; 576p; 576i; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; 1360 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1080i; 1080p; 1920 x 1200 |
Audio | |
Output | Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow) |
Connectors | |
Power | 1 x DC Jack |
Power Consumption | TBD |
Environmental | |
Operating Temperature | 0 - 40 ’ŠC |
Storage Temperature | -20 - 60 ’ŠC |
Humidity | 20 - 90% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.29 kg ( 0.64 lb ) |
Dimensions (L x W x H) | 11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.) |
Carton Lot | 5 pcs |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
GTIN: 4719264640568
