16"x 16" Heat Exchanger Water to Air 3-Row 3/8" Copper Ports 193 Fins

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 16 items left!
$334.99

Collect 334 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Potiva Deals
Secure ways to pay at checkout
16"x 16" Heat Exchanger Water to Air 3-Row 3/8" Copper Ports 193 Fins
About this item

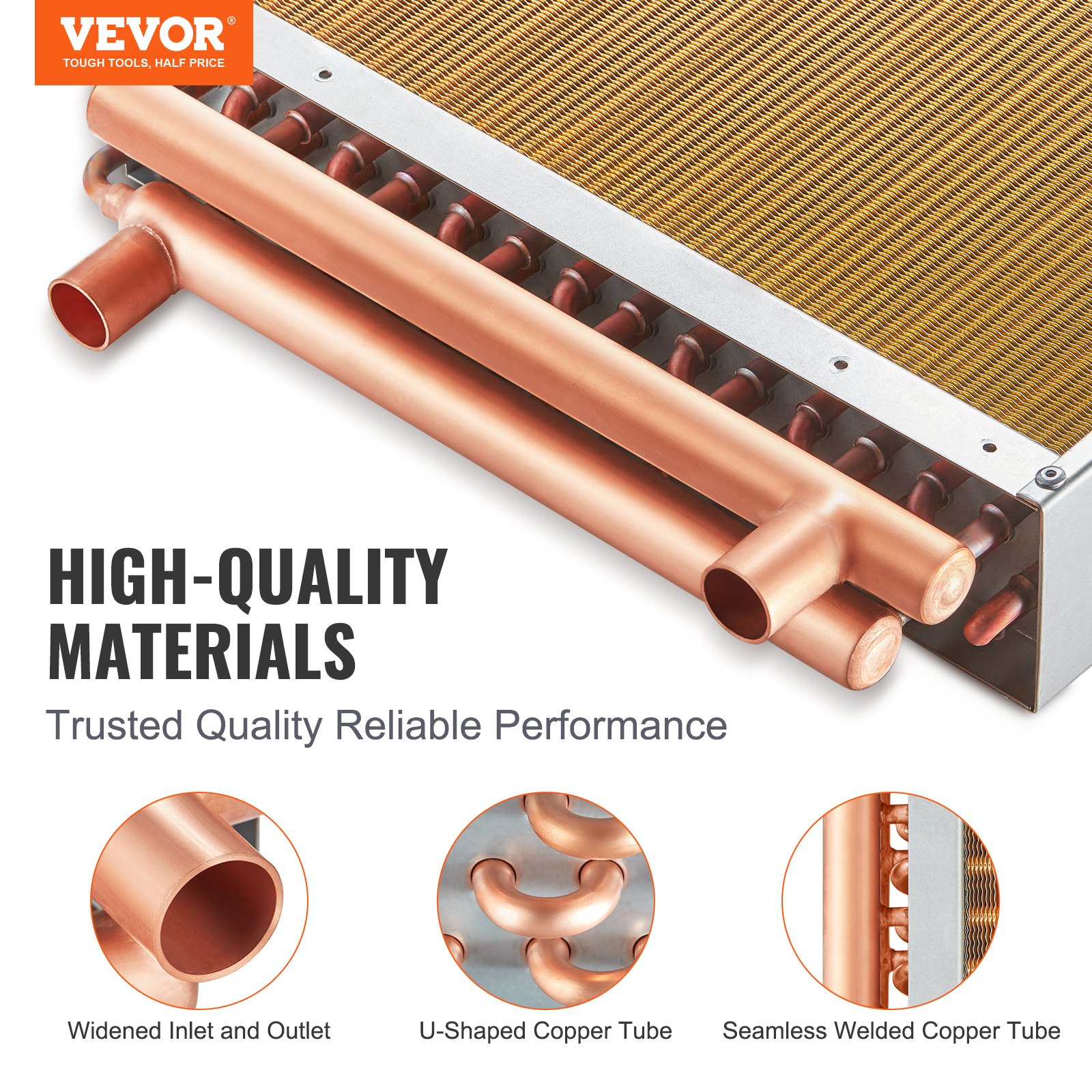

  • High-Quality Materials: The entire unit is copper brazed at edges and contact points, forming a durable and leak-resistant piece that withstands high pressure and temperature. UL and CE certified for reliable quality.

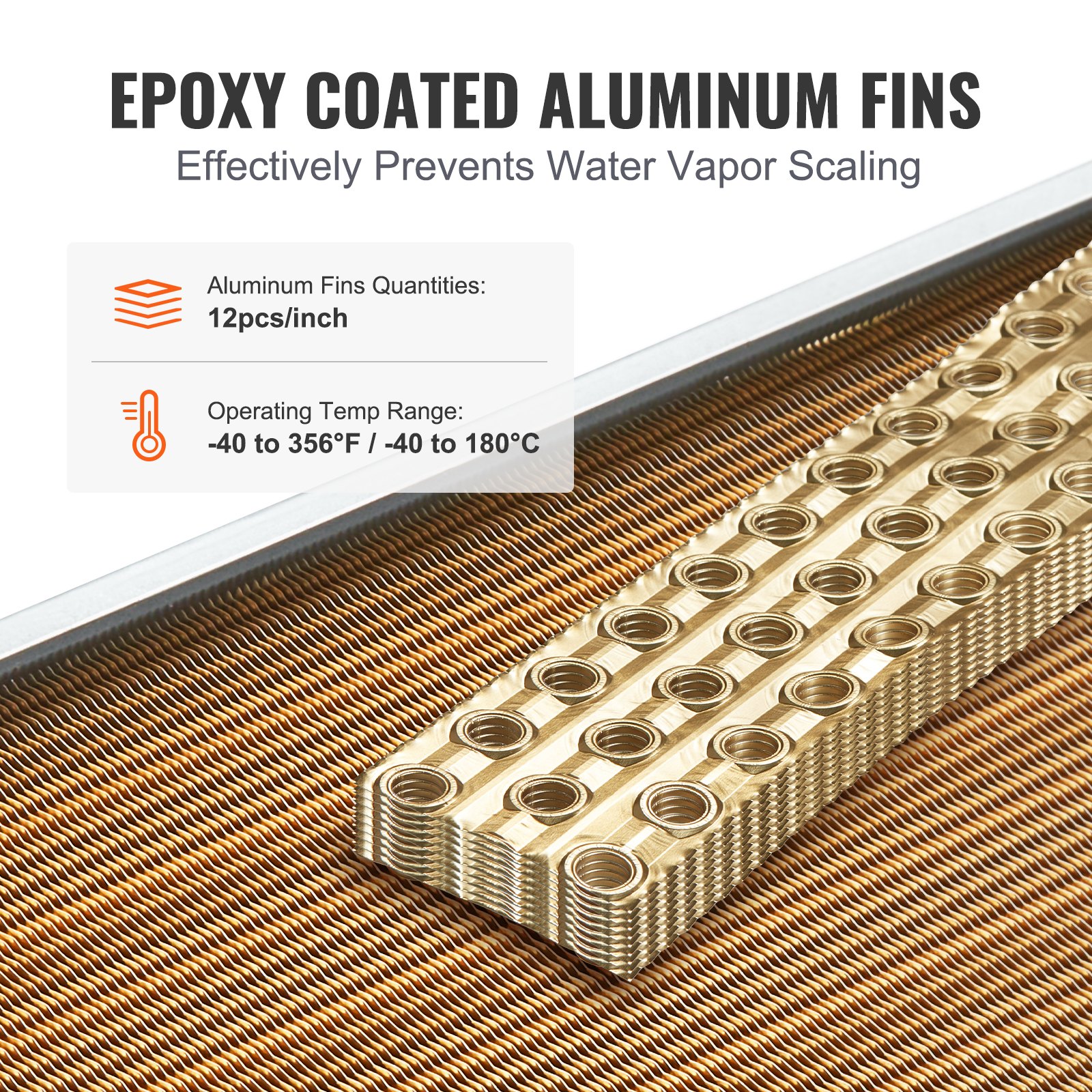

  • Durable and Corrosion-Resistant: Features epoxy-coated fins, providing high hardness, wear resistance, and corrosion protection. This reduces internal water vapor scaling, promoting maximum heat exchange between air and fins. Suitable for operating temperatures of -40-356℉ / -40-180°C.
  • Efficient Heat Transfer: The heat exchanger generates up to 160kBtu per hour, with 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the fluid medium, significantly enhancing the heat exchanger's performance.

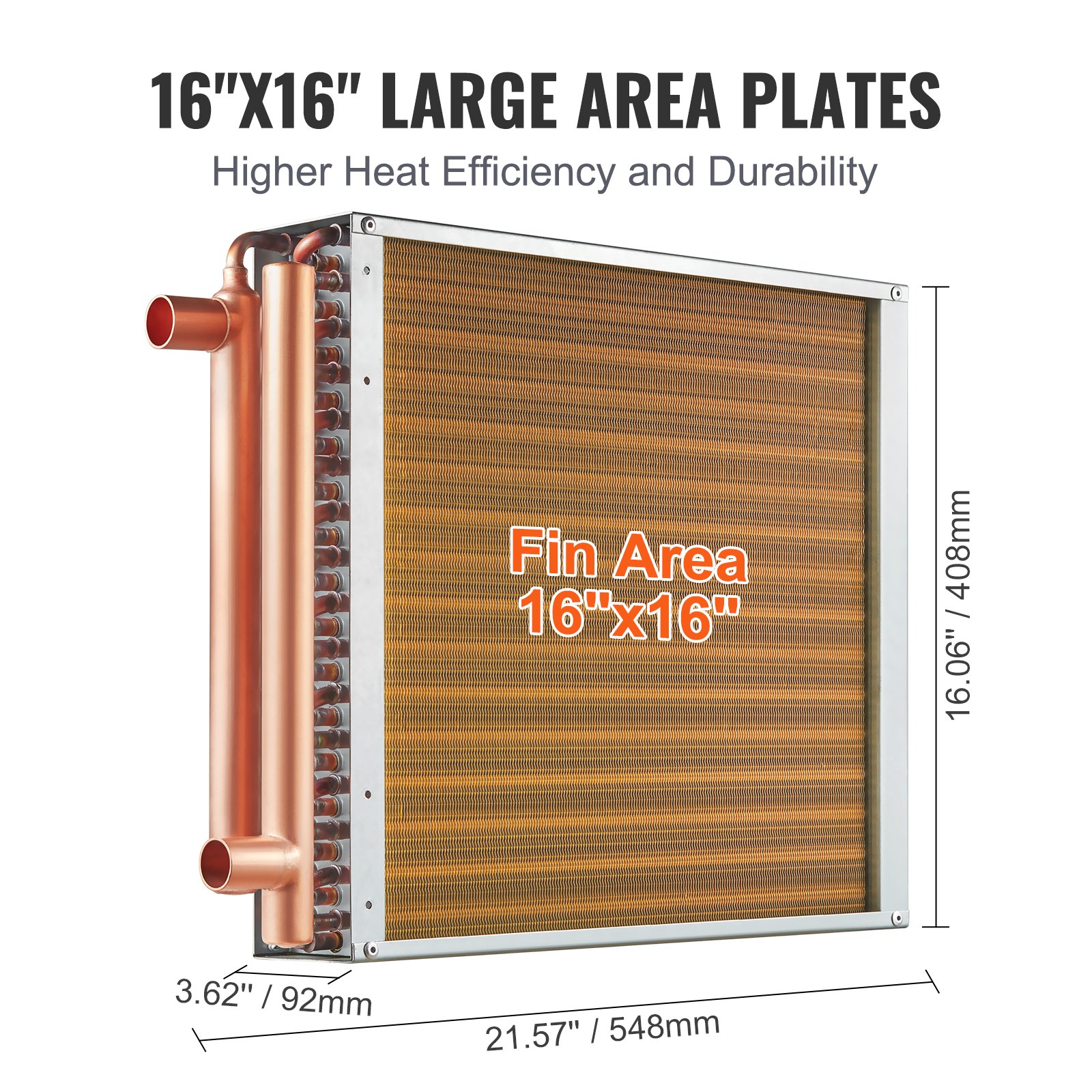

  • Large Heat Exchange Area: With an effective heat exchange area of 16”x16” and 193 fins, this heat exchanger provides excellent heat transfer performance to meet various needs.

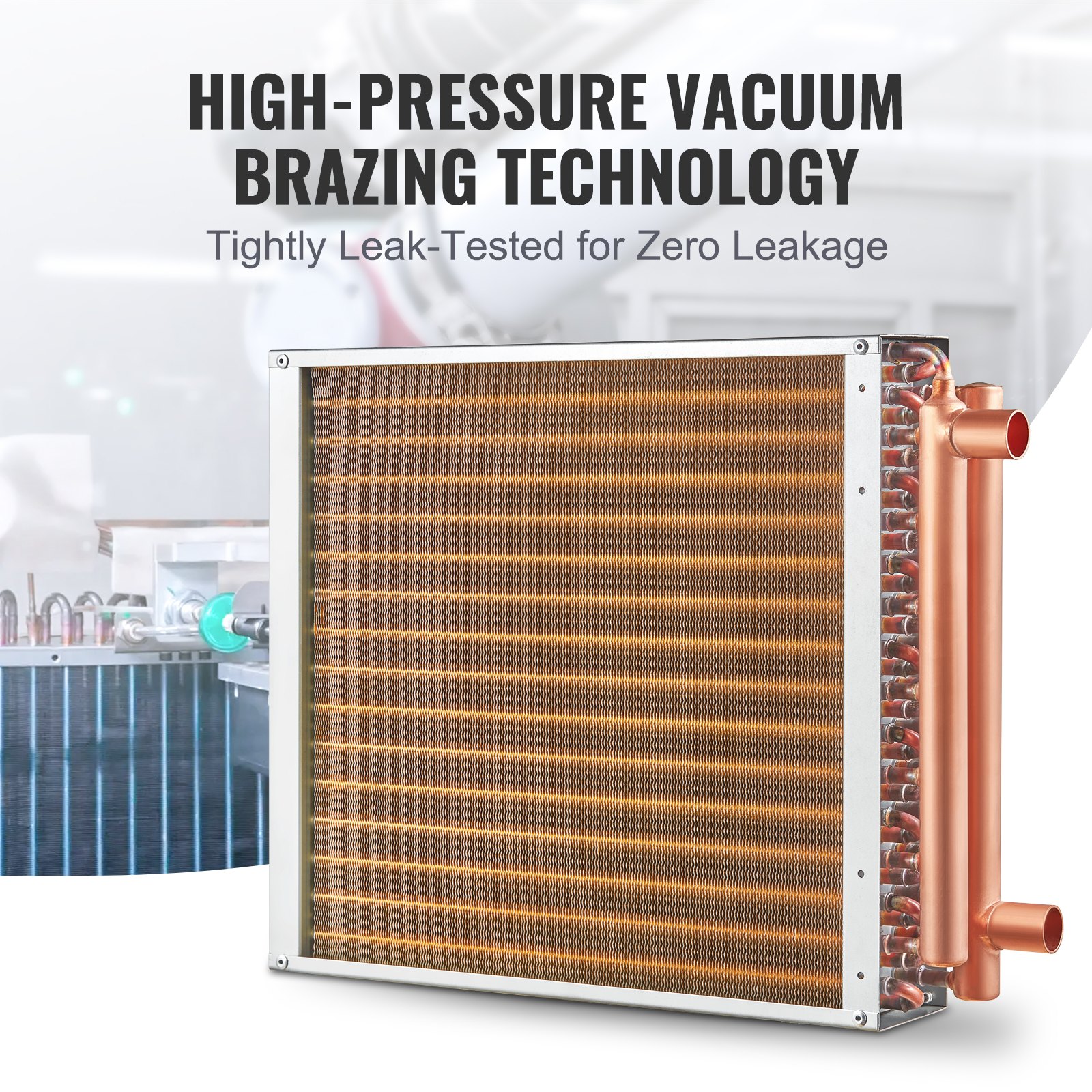

  • Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes rigorous leak testing, ensuring long life and high reliability.

Thickened Interface
High Efficiency and Energy Saving
Dual Use
Multiple Sizes Available
High Compatibility
Secure to Use

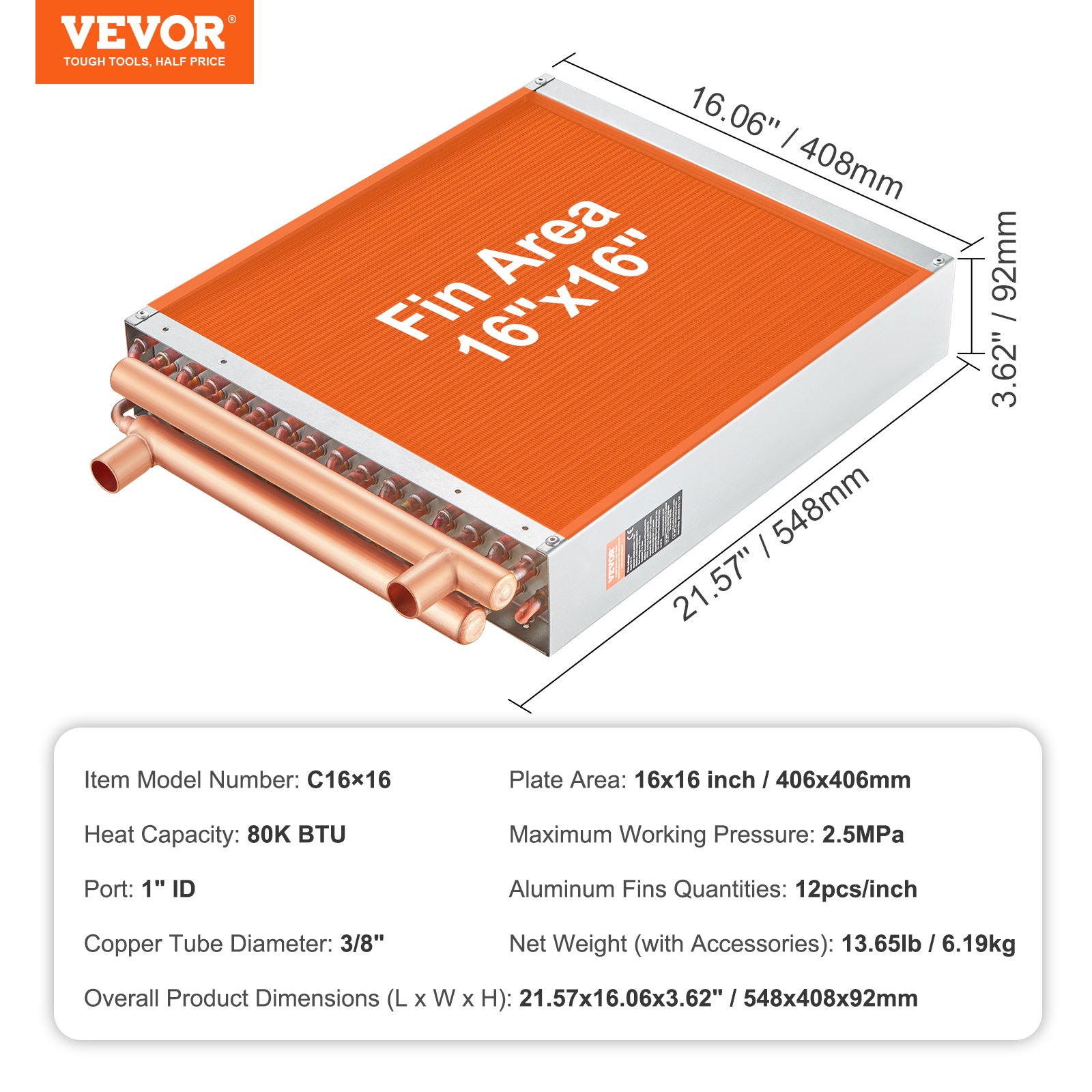

Operating Temperature: -40°C-180°C / -40°F -356°F,Main Materials: Copper,Maximum Working Pressure: 2.5MPa,Plate Area: 16 x 16 in / 40.64 x 40.64 cm,Heat Capacity: ≥80K BTU,Number of Aluminum Fins: 193 Pcs,Color: Gold,Model: C16×16,Number of Copper Tubes: 3-Row 3/8",Product Dimensions (L x W x H): 21.57x16.06x3.62" / 548x408x92 mm,Net Weight (with Accessories): 13.65lb / 6.19kg

SKU: CPGSHRQ161606S869V0
