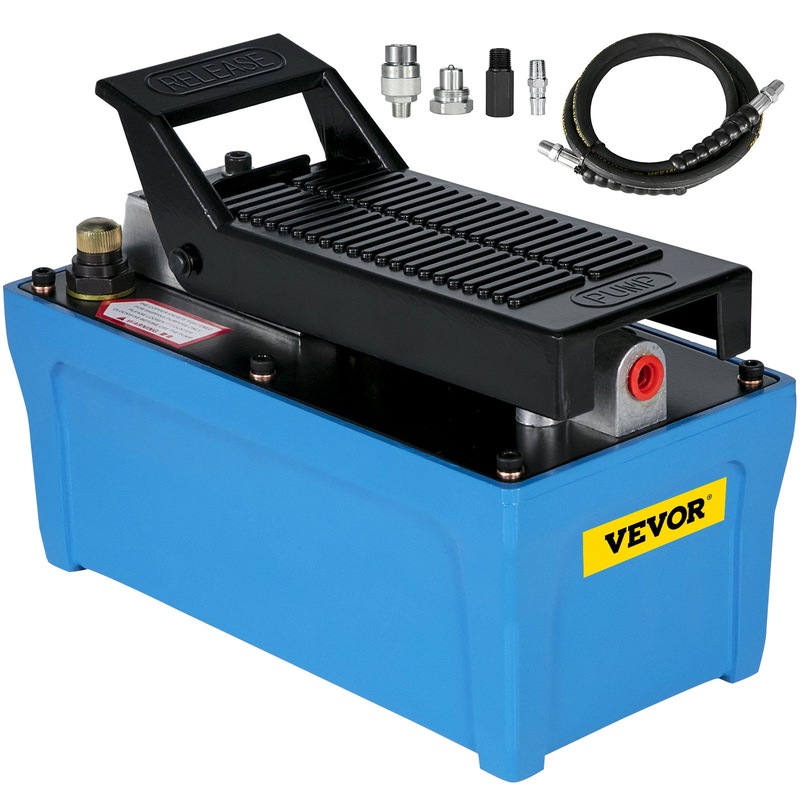

Air Hydraulic Pump 10000 PSI Air Over Hydraulic Pump 1/2 Gal Reservoir Air Treadle Foot Actuated Hydraulic Pump 3/8" NPT with 6.56 ft Hose 2 Connector Single Acting for Car Repair

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 4 items left!
$299.99

Collect 299 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Potiva Deals
Secure ways to pay at checkout
Air Hydraulic Pump 10000 PSI Air Over Hydraulic Pump 1/2 Gal Reservoir Air Treadle Foot Actuated Hydraulic Pump 3/8" NPT with 6.56 ft Hose 2 Connector Single Acting for Car Repair (Blue)
About this item
  • Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons, Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.
  • Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.
  • Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications. 1.6L ± 0.1L oil tank has a larger capacity with 1.3 liters maximum oil output. Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure.
  • Durable Oil Pipe Included: This hydraulic air pump is equipped with a 6.56 ft / 2 m high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable, no worry about the oil leak.
  • 10,000 PSI for Wide Application: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.

Standard Air Inlet & Oil Outlet
Simple Foot Pedal Control
Premium Quality & Structure
1.6L Large Oil Tank
High-Pressure Hydraulic Hose
Multiple Application
Action: Single Acting,Air Connection: 1/4" Female NPT,Pressure Range: ≥ 0.5,Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm,Capacity Tolerance: ± 0.1L,Oil Output Pressure: 70MPa,Weight: 17.72 lbs / 8.04 kg,Oil Capacity: 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons,Maximum Oil Output: 1.3L,Flow Rate: 0.8 liters / 0.21 gallons per minute,Type: Air Powered Hydraulic Pump,Control: Foot pedal pump - Release pressure to return fluid,Input Air Pressure: 0.7-1MPa,Dimensions (L x W x H): 12.2 x 8.26 x 7.4" / 31 x 21 x 19 cm,Hydraulic Oil Type: HM22/HM32,Includes Hydraulic Hose: 6.56 ft / 2 m with 3/8'' NPT - Quick hydraulic coupler,Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler,Fuel Tank Capacity: 1.6L,Shell Material: Reinforced Aluminum Alloy
