Hydraulic Steering Kit 300HP Hydraulic Steering Compact Cylinder Hydraulic Outboard Steering Kit with Helm Pump for Boat Marine Steering System
About this item

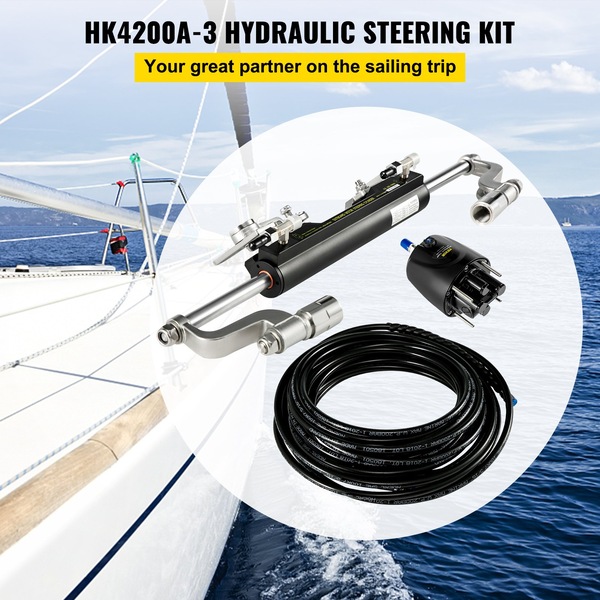

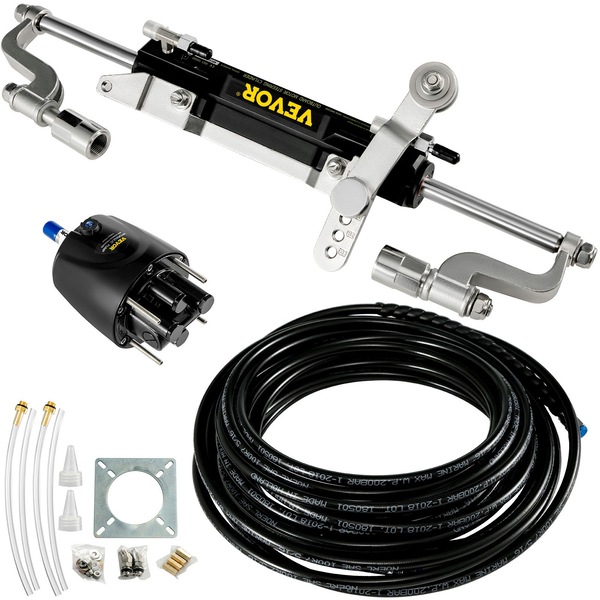

  • 300 HP Hydraulic Steering Kit: The hydraulic outboard boat steering kit includes a balanced steering cylinder, a low-friction helm, two lengths of 20ft hose, and a fill kit. It will perfectly replace your aging or broken equipment. Note: It's compatible with Yamaha, Honda, Suzuki below 300HP, not for Mercury.

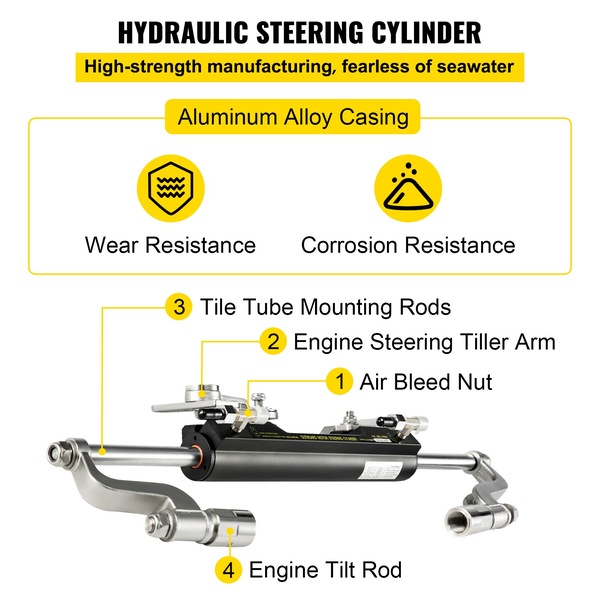

  • Built-in Two-way Lock Cylinder: Output force: 470 kgf. The cylinder has a built-in two-way locking valve, which eliminates rebound torque during torsion. With robust barrel design and efficient sealing, the system can withstand the harsh environment.

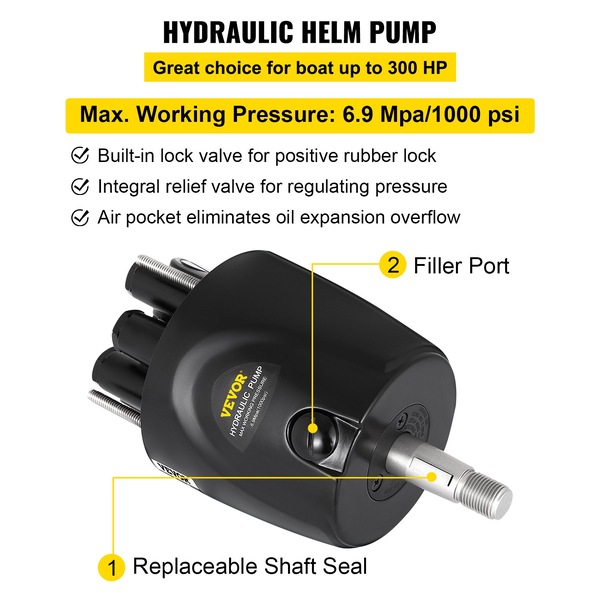

  • Max. 150HP Helm Pump: Max. Working pressure: 6.9 Mpa/1000 psi. The low friction helm ensures smooth and comfortable steering. And it has a replaceable shaft seal that can be easily replaced.

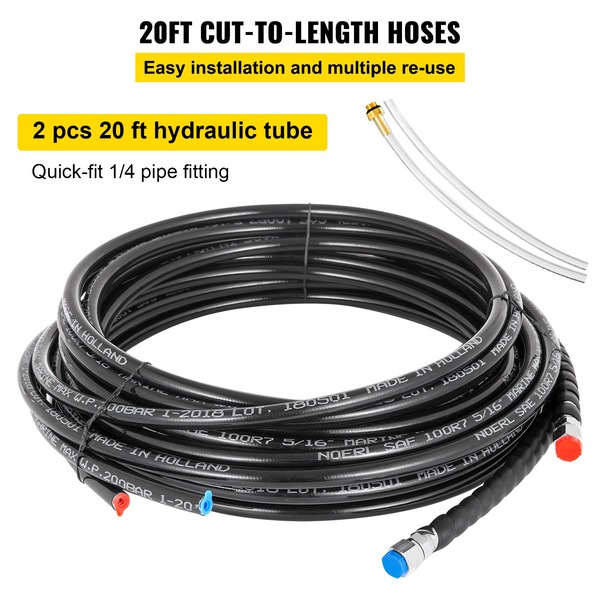

  • Cut-to-length Hoses: Our high-strength nylon hose is equipped with quick-fit 1/4'' pipe fitting for easy and fast installation and multiple re-uses. Each hose is 20' long and can be cut for your specific installation, accommodating most boats.
  • Great Partner for Your Boat: Our hydraulic steering kit is for single-outboard powered boats rated up to 300 HP, including runabouts and inflatables — and outboard engines with ABYC standard engine tilt tubes up to 300 HP (total). For single station, single-engine use only.

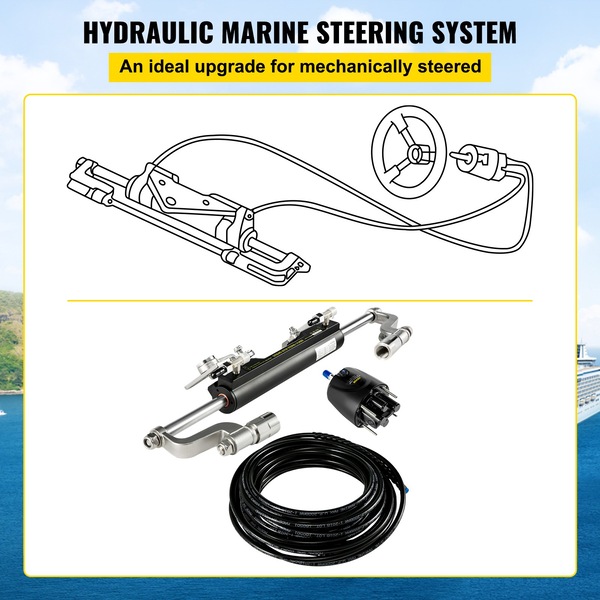

Hydraulic Directional System
Robust and Sleek Cylinder
Efficient Hydraulic Helm
2 x 20ft Hose
Standard Accessories
Wide Application

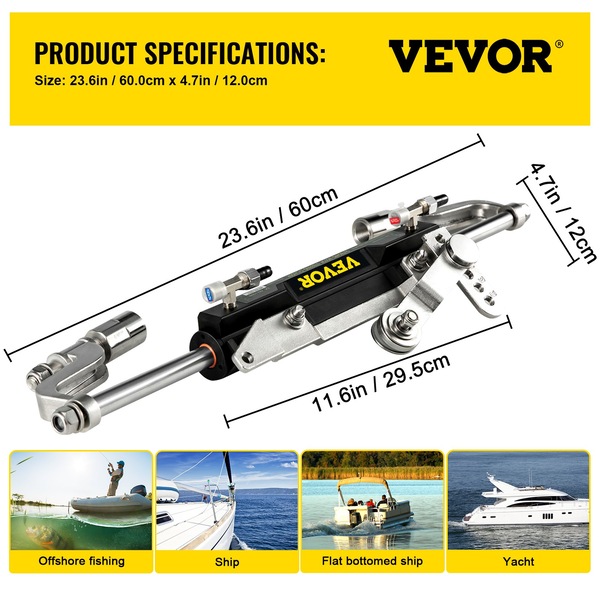

Volume: 141cc,Strode: 214 mm,Tube I.D:Φ35 mm,Model: Hydraulic Boat Steering Kit,Max Pressure: 6.9Mpa (1000psi),Output Force: 470 kgf,Application: Up to 300HP,Rod I.D: Φ18 mm
