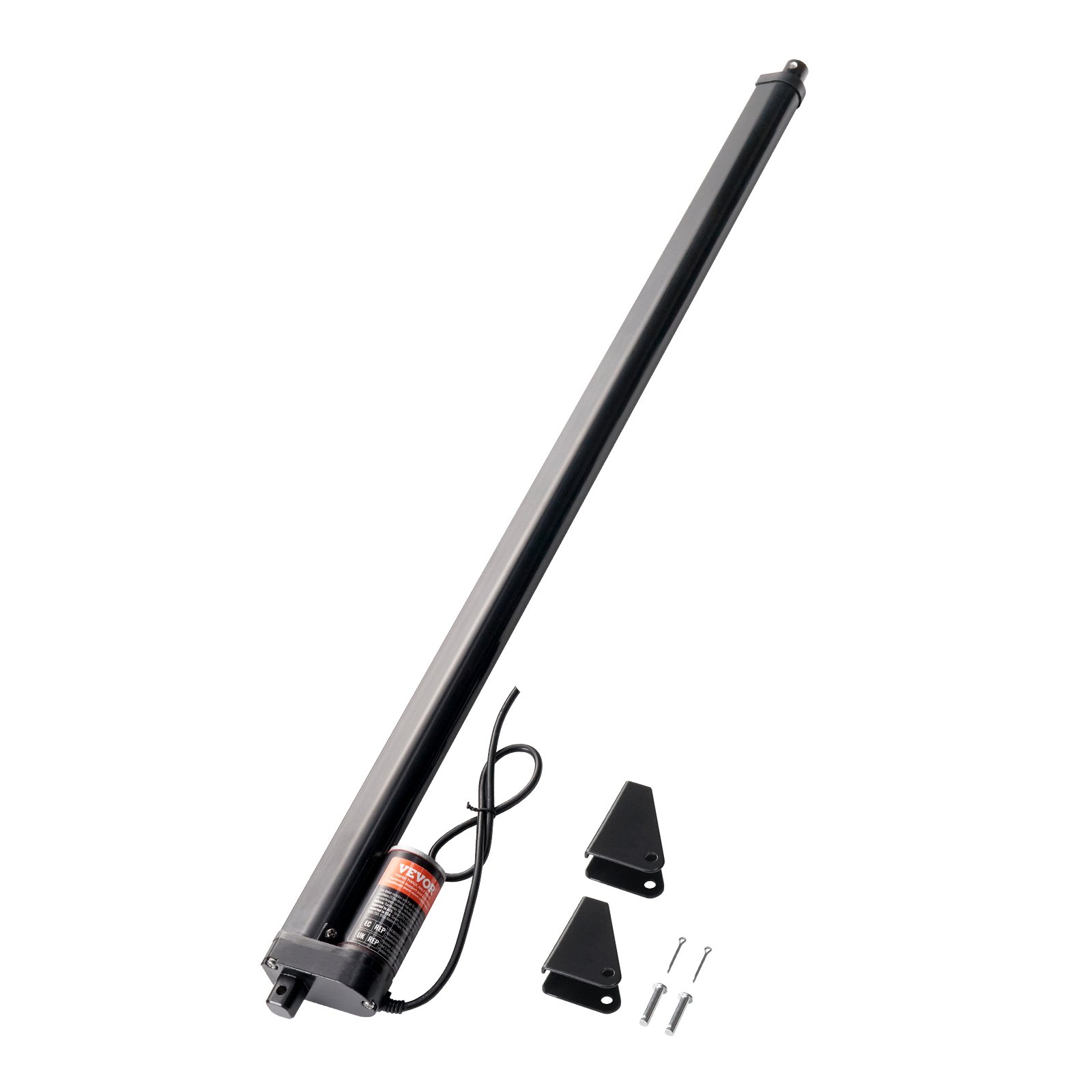

Linear Actuator 12V, 20 Inch High Speed 0.55"/s Linear Actuator, 220lbs/1000N Linear Motion Actuator with Mounting Bracket and IP54 Protection

Linear Actuator 12V, 20 Inch High Speed 0.55"/s Linear Actuator, 220lbs/1000N Linear Motion Actuator with Mounting Bracket and IP54 Protection

Hurry! 13 items left!

$79.99

Collect 79 Everyday Rewards points

Free Shipping

Dispatch in 2 business days

Sold & shipped by Potiva Deals

Secure ways to pay at checkout

(0)

Linear Actuator 12V, 20 Inch High Speed 0.55"/s Linear Actuator, 220lbs/1000N Linear Motion Actuator with Mounting Bracket and IP54 Protection

About this item

Fast & Efficient Stroke Adjustment: Lift or lower effortlessly with linear actuator, moving at a swift 0.55"/s. Perfect for applications requiring frequent height adjustments, whether it's altering furniture heights or raising and lowering office desks and chairs.
Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
Versatility Unleashed: 's 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

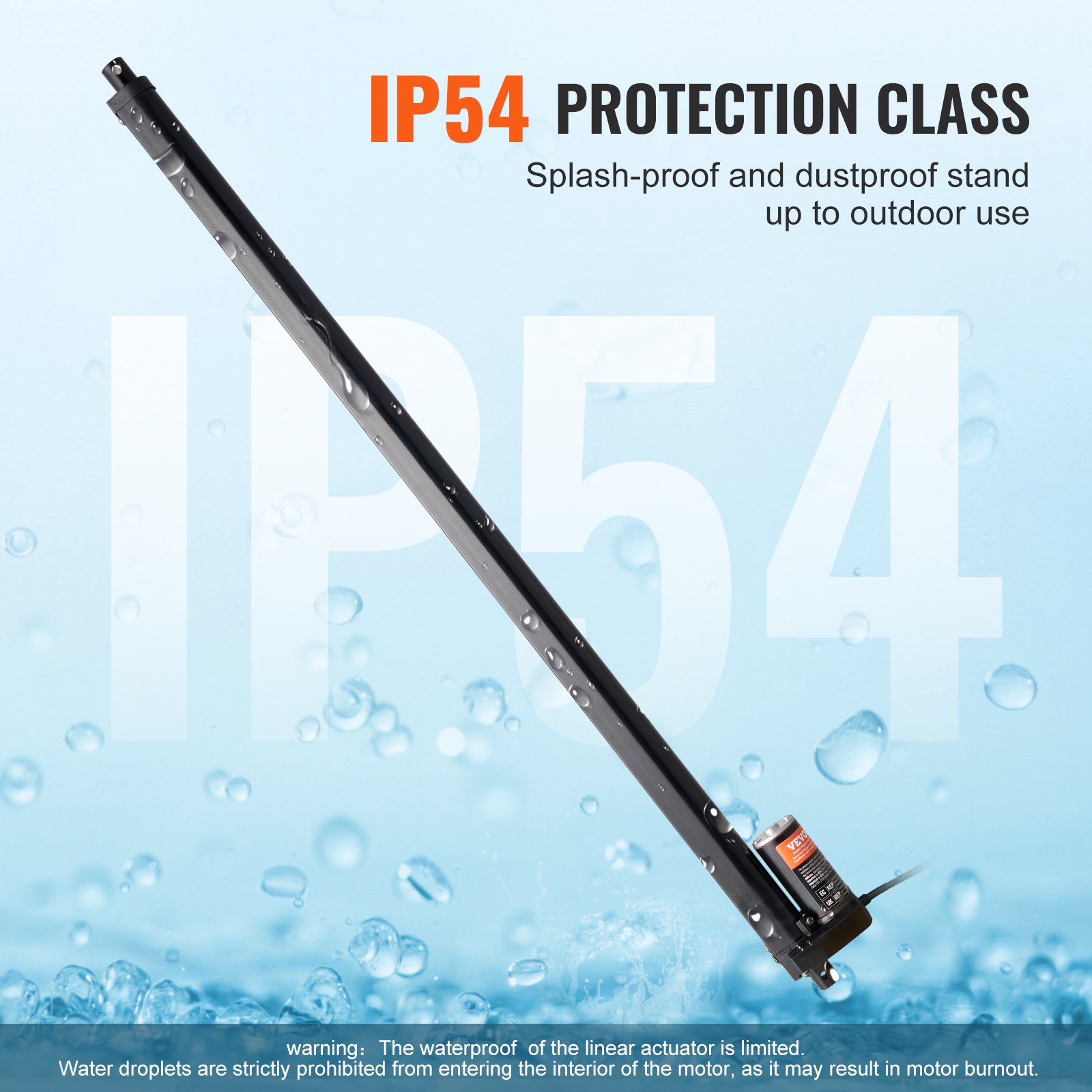

IP54 Protection Rating: Dust, splashing water, or light humidity? No problem. 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)

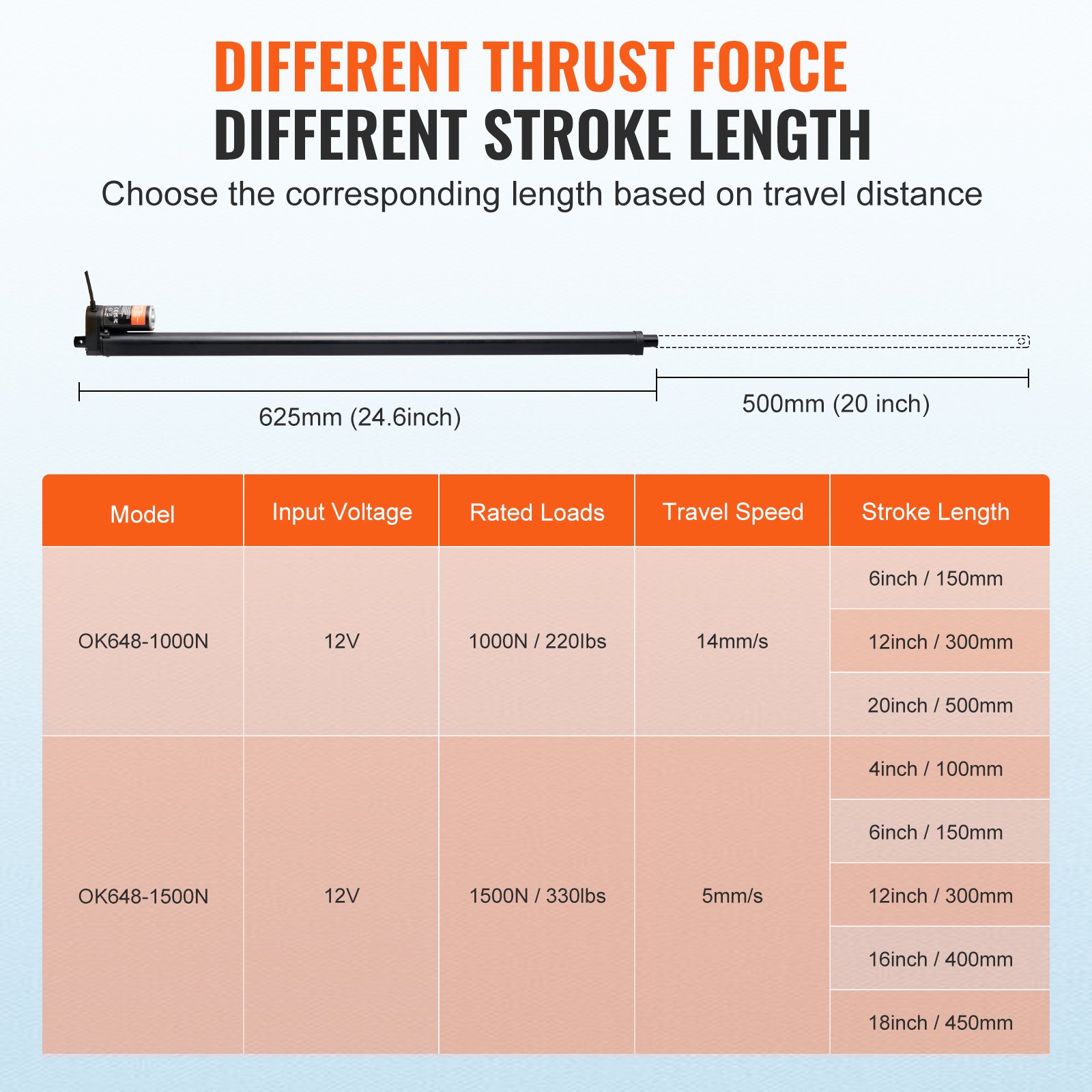

Key Specifications: Stroke Length: 20 inch (500mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 24.6" (625mm); Extended Length: 44.6" (1125mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

Enable Automation in Every Step
IP54 Protection

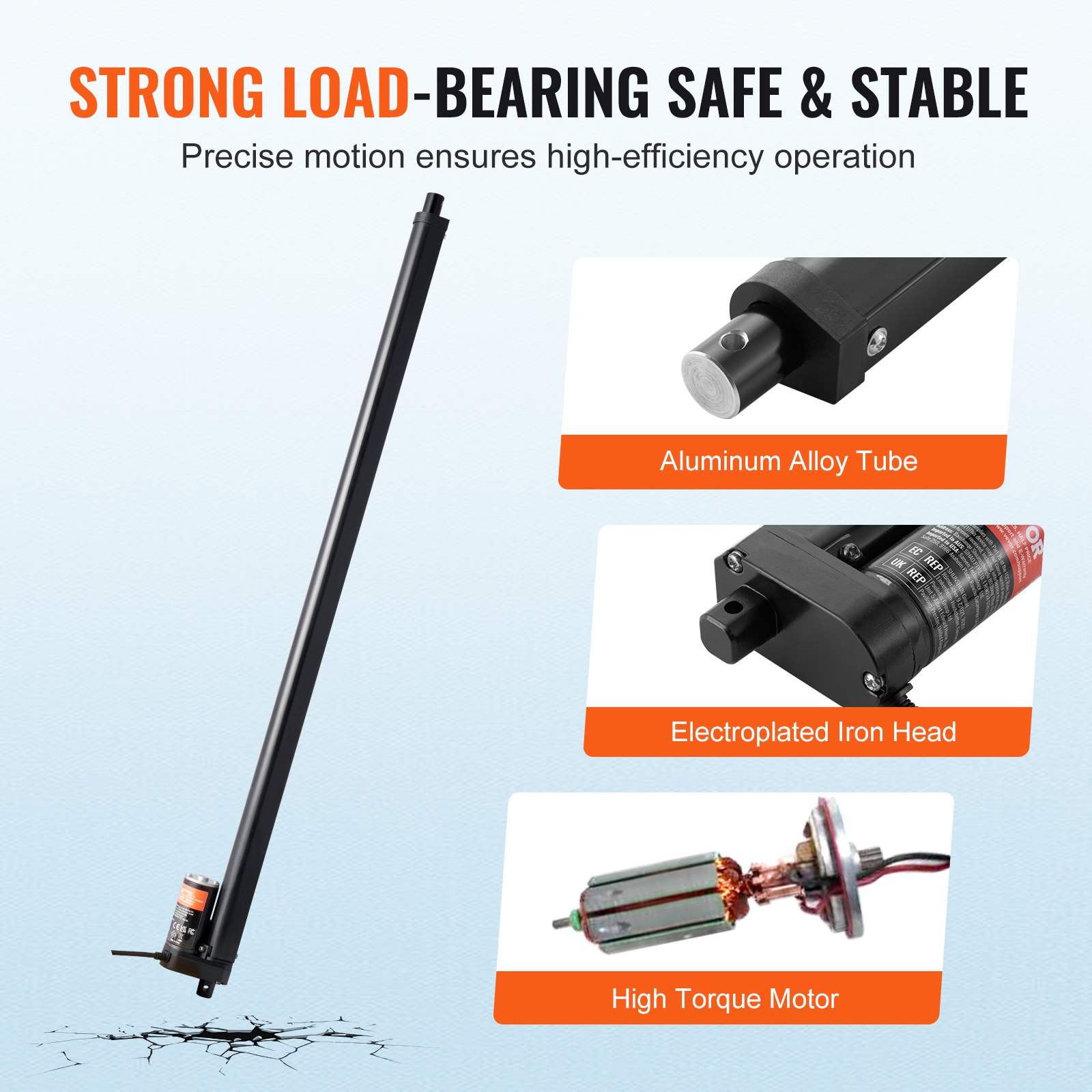

High-Quality & Durable

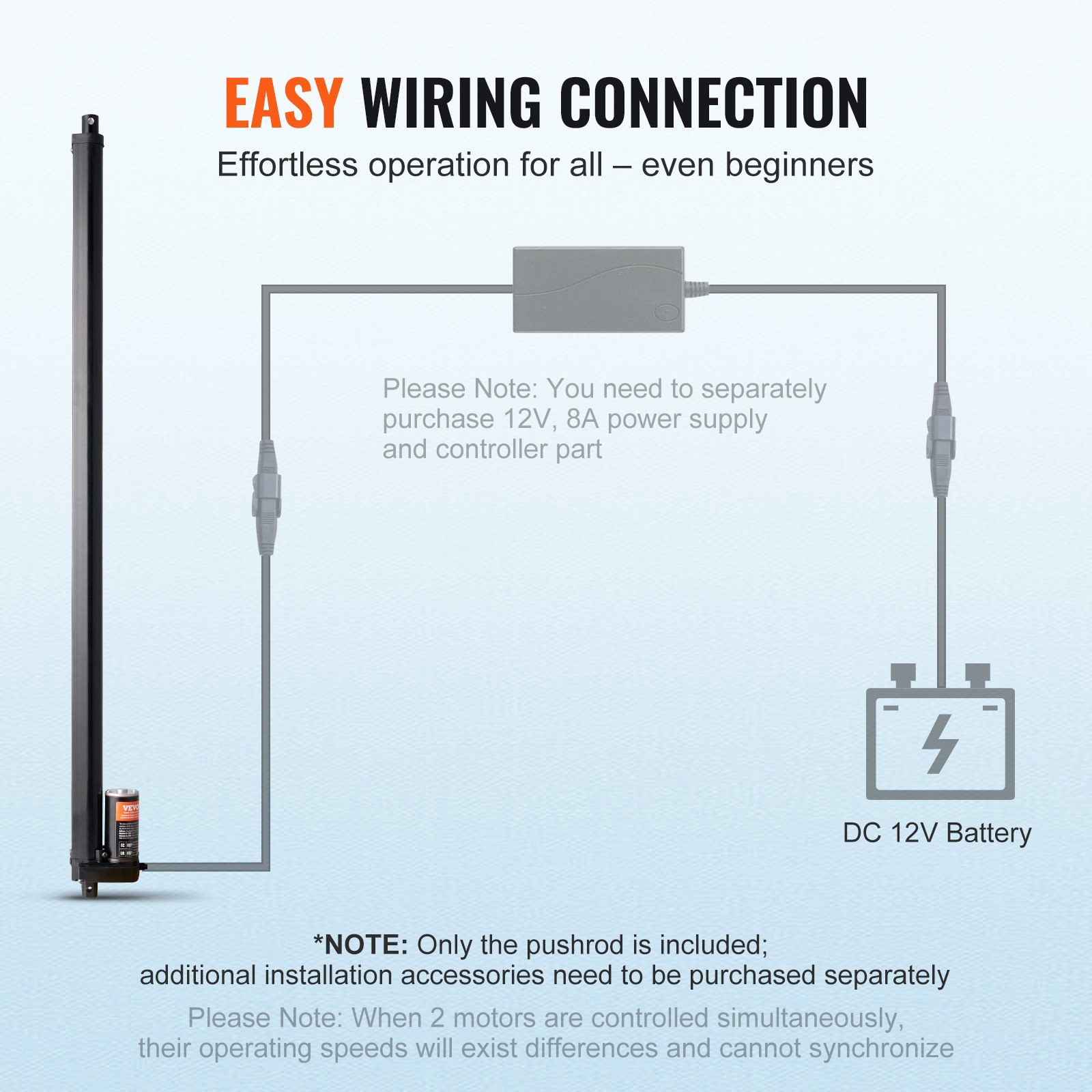

Easy Installation
Warm Tips

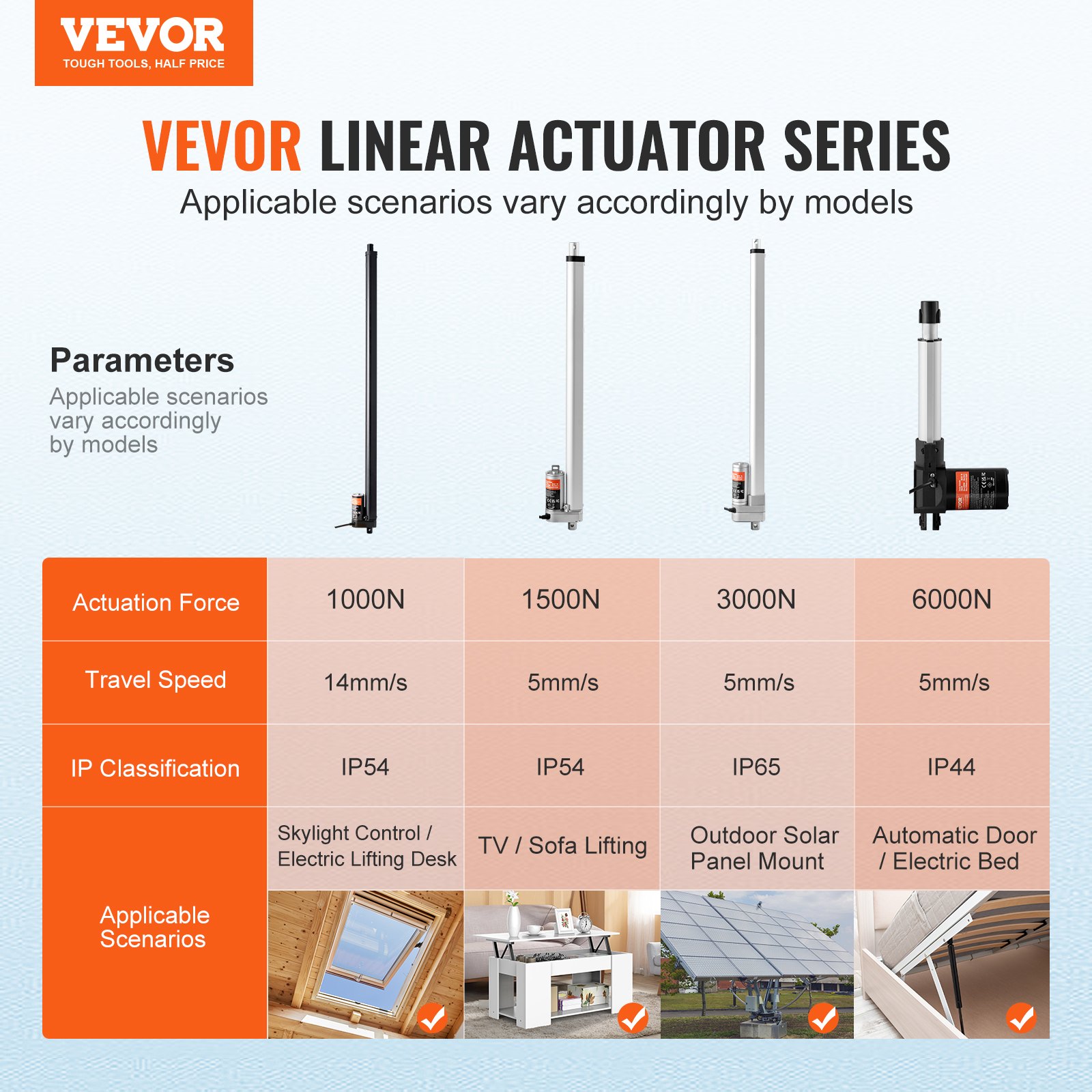

Wide Applications
Protection Class: IP54,Noise Level: ‚â§50dB,Maximum Load/Actuation Force: 1000N,Item Model Number: OK648-1000N,Travel Speed: >0.55 inch/s / >14mm/s,Rated Current: <5A,Stroke Length: 20 inch / 500 mm,Product Dimensions: 24.6 x 2.95 x 1.57 inch / 625 x 75 x 40 mm,Net Weight: 3.26 lbs / 1.48 kg (including all accessories),Main Material: Aluminum Alloy,Rated Voltage: DC12V
