Vgate iCar1 OBD2 Diagnostic Scanner Support J1850 Protocol Wifi Connection Optional Diagnostic Scan Tool

Vgate iCar 1 WIFI Version V2.1 supports IOS , Android and Windows?

?

Top 10 Reasons to Get VGATE Wifi ELM327:?

1. Software Version: V2.1

Hardware version: V2.1

2. Support for Android PC for iPhone and for iPad

3. Fully compatible with ELM327 V1.4b.

4. AlI ELM327 supported software are available to use.

5. Faster than ELM327 four times or higher. (ELM327 is RISC 8bit 44MHz MCU, iCar is ARM 16bit MCU)

6. Low standby power consumption sleep mode.

7. Lower power consumption than ELM327

8. LED indicator is in the front side toward user for easier check of linking status.

9. Support J1939 protocol more than ELM327.

10. WiFi 802.11 b/ g and encrypted for better security?

?

Support OBDlI /EOBD2 Protocols:?

ISO 15765-4 (CAN-B 125Kbps, started since 2003 in USA)

ISO 15765-4 (CAN-C 500Kbs, 11bit ID, 29bit ID, started since 2003 in USA)

ISO 14230-4 (KWP2OOO)

ISO 9141-2 (5 baud init. 10.4 kbaud, replaced by 142304 gradually, stopped in USA in 2008)

SAE J1850 VPW (10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)

SAE J1850 PWM (41.6 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)

SAE J1939 the Data link connector standard?

?

Function:

1. Read more than 3000 car manufacturers' stand DTC and private DTC (diagnostic trouble codes)

and its meaning.

2. Clear DTC, turn off dashboard MlL "Check Engine" Light

3. Display sensor data, including:

Engine RPM

Load

Coolant Temperature

Fuel Status

Vehicle speed

Intake Manifold pressure (MAF 1 MAP)

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltage / short term fuel trim

Fuel Pressure?

?

Product Specification:

OBDlI decode chip: ARM 16bit MCU

Firmware: ELM327 Version 1.4b compatible

Transfer baud rate: 4800/9600/10400/38400 / 5O0K

Input interface: OBDlI male 16pin

Output interface: Wifi 802.11b/g

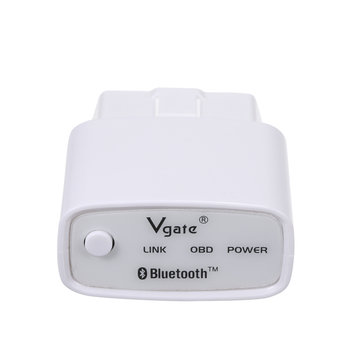

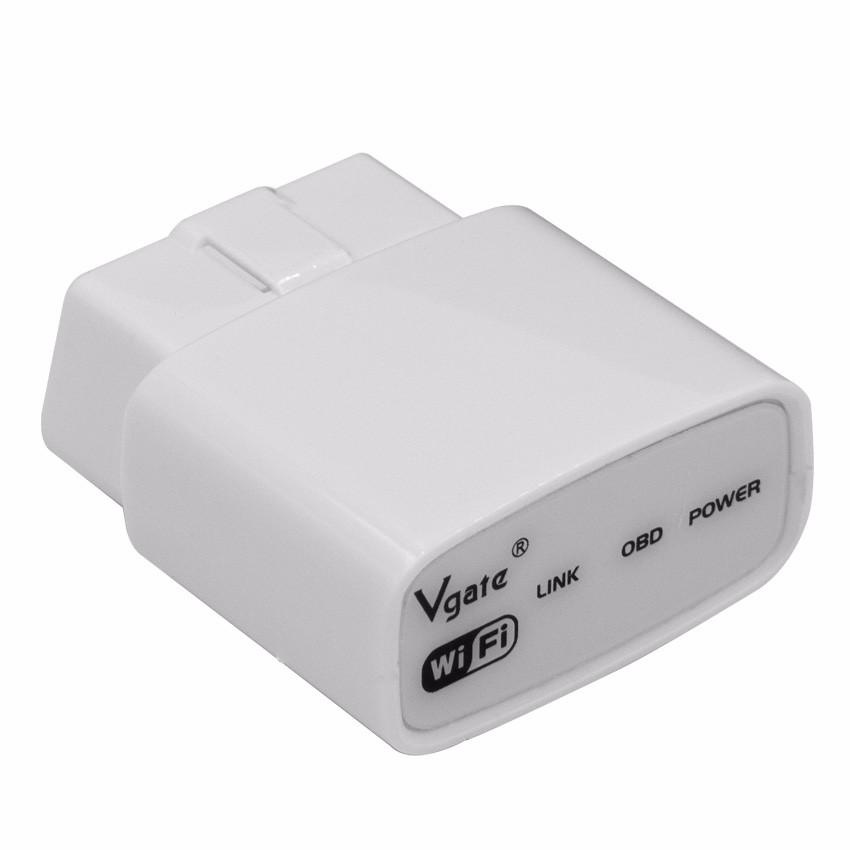

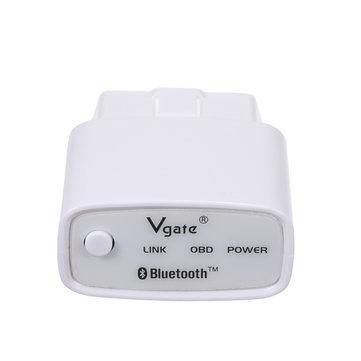

LED Indicator: Power (red) / OBD (green) / Link (blue) (PC or smart phone)

Operating Voltage: 12V, including over voltage / shortage protection

Nominal Idle current: 45mA

Net Weight: 31g

Gross Weight: 60g

Wire Length: 0 cm

SSID: BUYOBD

Password: See item label

IP: 192.1 68.0.10

HTTP local port: 35000

Encryption: WEP128

Power: supplied by car OBD socket?

?

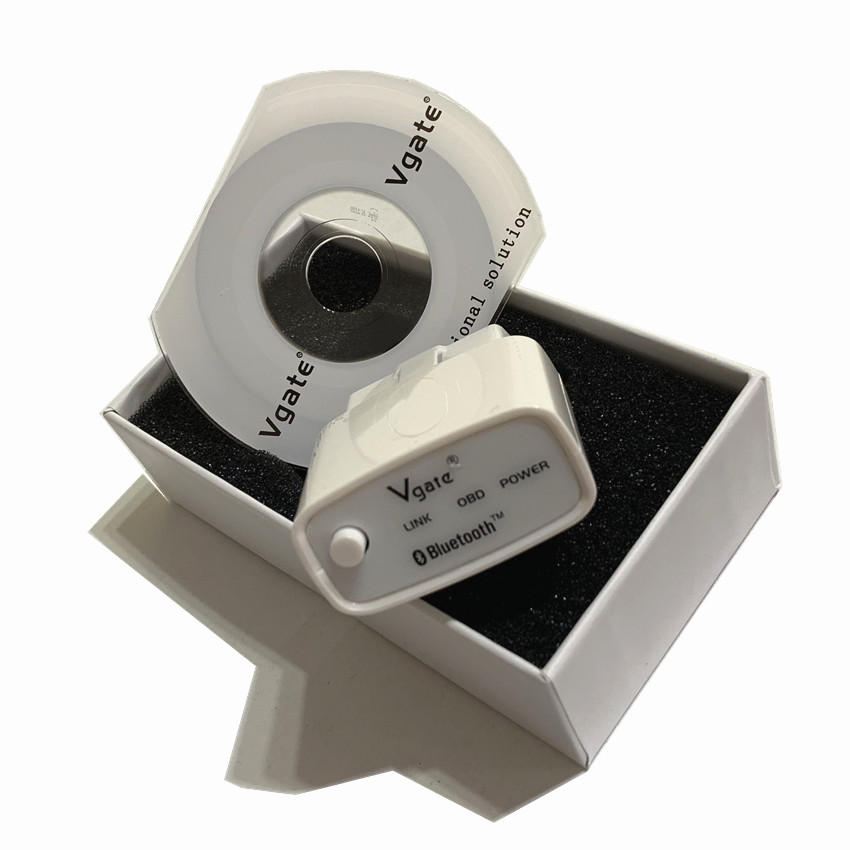

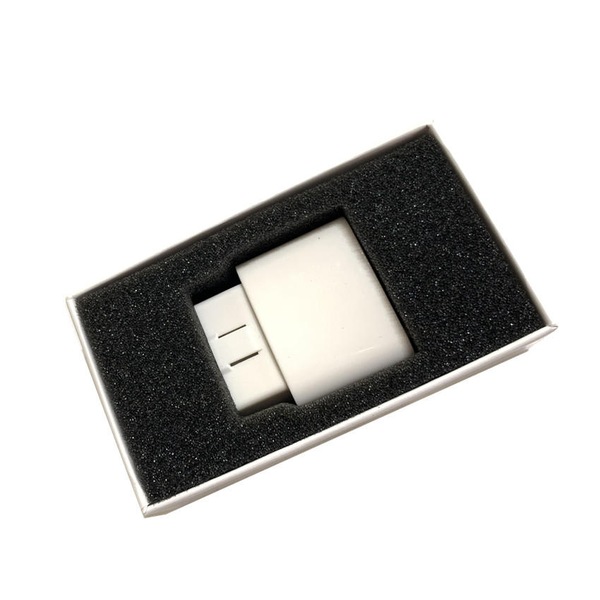

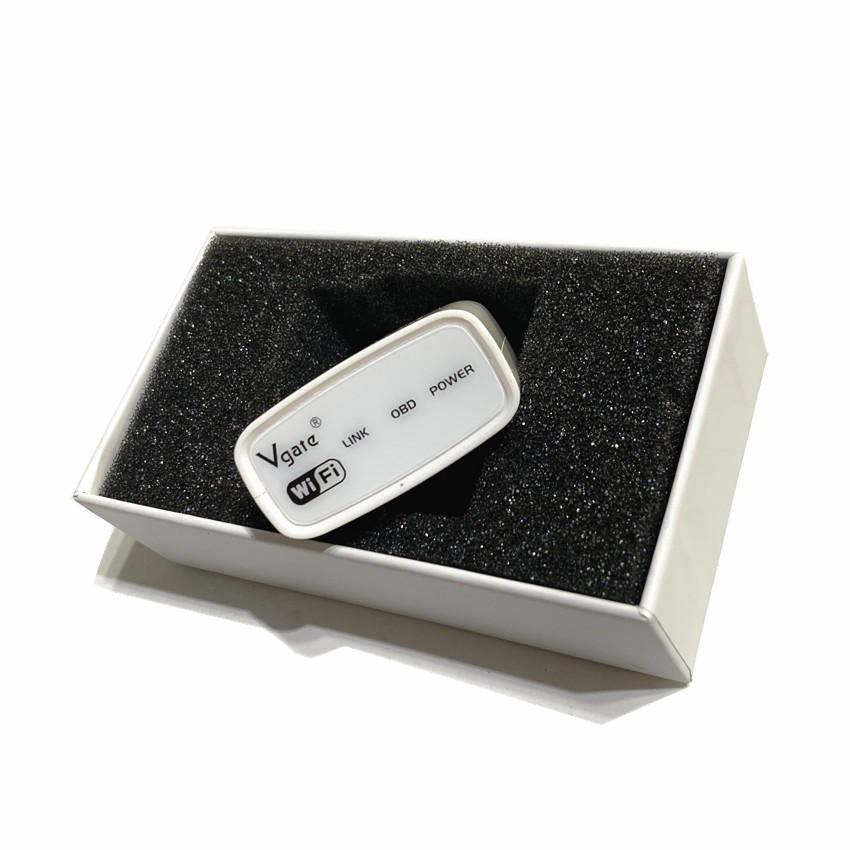

Package Included:

1 X Vgate iCar 1

1X CD
