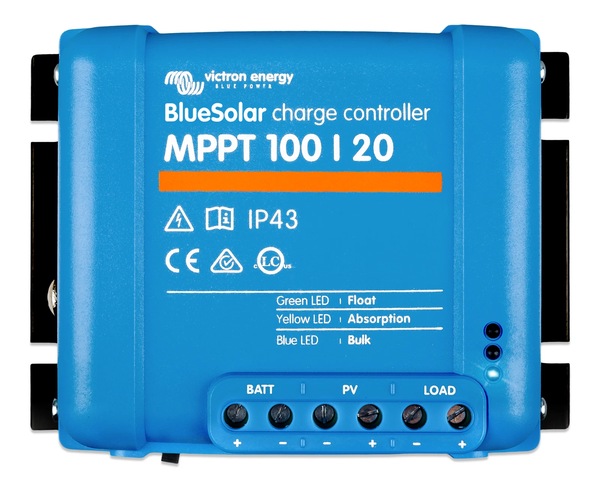

Victron Energy BlueSolar MPPT 100/20-48V Retail
- Unlocks maximum solar panel output using advanced MPPT technology
- Auto-selects 12V, 24V, or 48V battery systems for flexible integration
- Rated charge current: 20A, suitable for up to 1160W (48V) PV arrays
- Ultra-fast MPPT increases energy yield by up to 30% over PWM and 10% over slower MPPTs
- Max PV open circuit voltage: 100V, short circuit current: 20A
- Programmable charging algorithm supports AGM, Gel, Flooded, and Lithium batteries
- BatteryLife algorithm improves battery lifespan with intelligent load disconnect control
- Dedicated load output protects batteries from deep discharge
- High efficiency up to 98%, minimizing energy loss
- Self-consumption (load on): 26mA (12V), 20mA (24V), 19mA (48V); (load off): 10mA / 8mA / 7mA

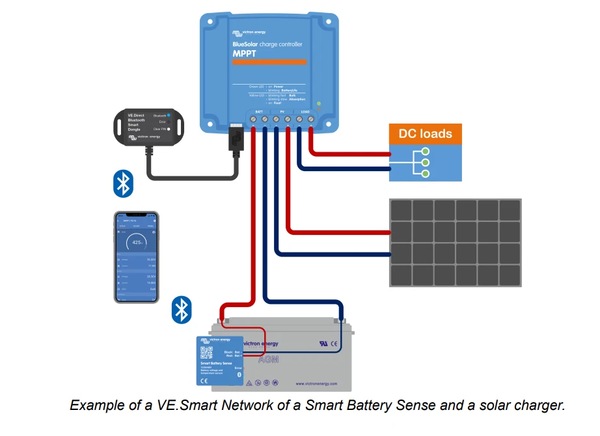

- VE.Direct port enables integration with GX devices or PC via USB interface
- Bluetooth not built-in � VE.Direct Bluetooth Smart dongle required for wireless monitoring
- Compatible with MPPT Control display for local configuration
- Durable IP43 housing (electronics), IP22 (connection area)
- Dimensions: 100�131�60 mm, Weight: 0.65?kg
- Operating temperature: -30�C to +60�C, full output up to 40�C
- Ideal for off-grid, RV, marine, and backup solar systems

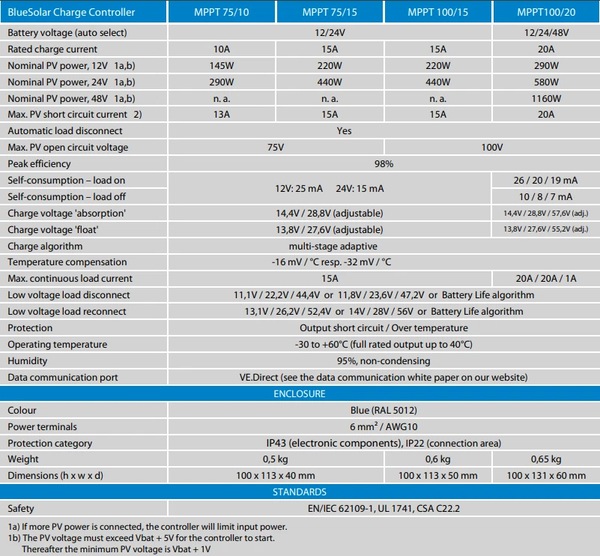

Specifications:
