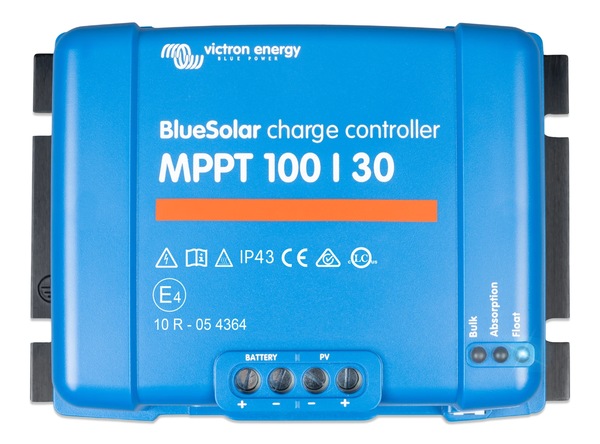

Victron Energy BlueSolar MPPT 100/30 Solar Charge Controller
- Ultra-fast MPPT tracking boosts solar harvest by up to 30% over PWM and 10% over slower MPPTs
- Automatically detects 12V or 24V battery systems for easy installation
- Rated charge current: 30A, suitable for PV arrays up to 440W (12V) or 880W (24V)
- Maximum PV open circuit voltage: 100V, short circuit current: 35A
- BatteryLife algorithm intelligently manages load disconnect for longer battery lifespan
- Programmable charging algorithm supports AGM, Gel, Flooded, and Lithium batteries
- Dedicated load output disconnects loads at pre-set voltage to prevent over-discharge
- Comprehensive protection against over-temperature, reverse polarity, short circuits, and reverse current
- VE.Direct port enables wired communication with GX devices and VictronConnect via USB
- Peak conversion efficiency of 98% for minimal energy loss
- Robust build quality for reliable operation in harsh conditions
- Operating temperature: -30?�C to +60?�C (full output to 40?�C)
- Self-consumption: 30?mA (12V), 20?mA (24V)
- Weight: 1.5?kg

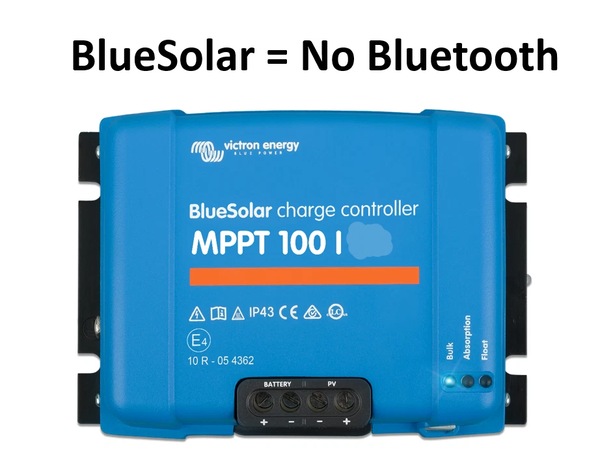

- Bluetooth not built-in � requires VE.Direct Bluetooth Smart dongle for wireless monitoring
- Compatible with Victron MPPT Control display for local configuration
- Ideal for off-grid solar, RVs, boats, and medium-sized renewable energy setups

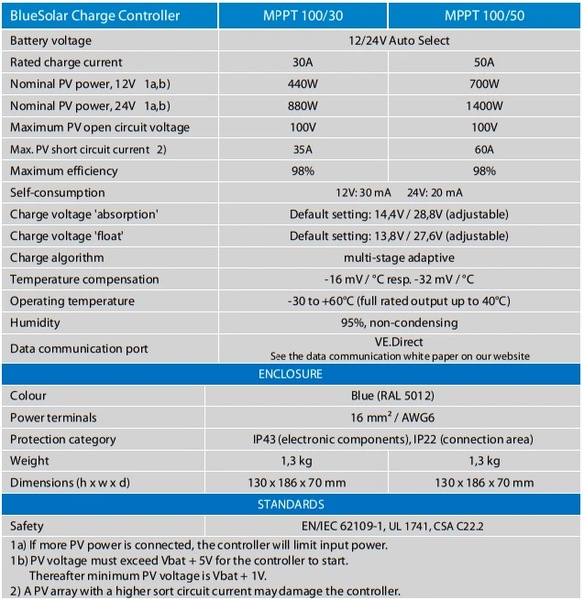

Specifications:
Check Description
