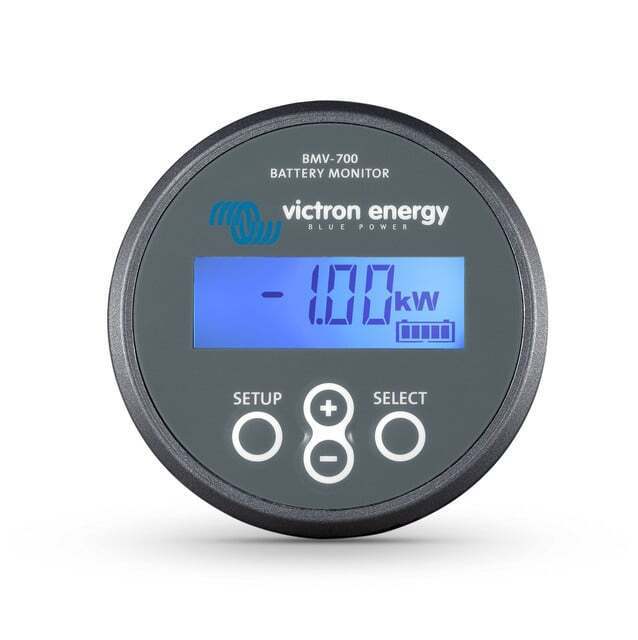

Victron Energy BMV-700 Battery Monitor Overview

BMV-700: An Advanced Battery ‘Fuel Gauge’, Time-to-Go Indicator, and Much More

The BMV-700's remaining battery capacity depends on several factors including the ampere-hours consumed, discharge current, temperature, and the age of the battery. It uses complex software algorithms to take all these variables into account. Apart from basic display options such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.

Easy to Install BMV-700 Battery Monitor

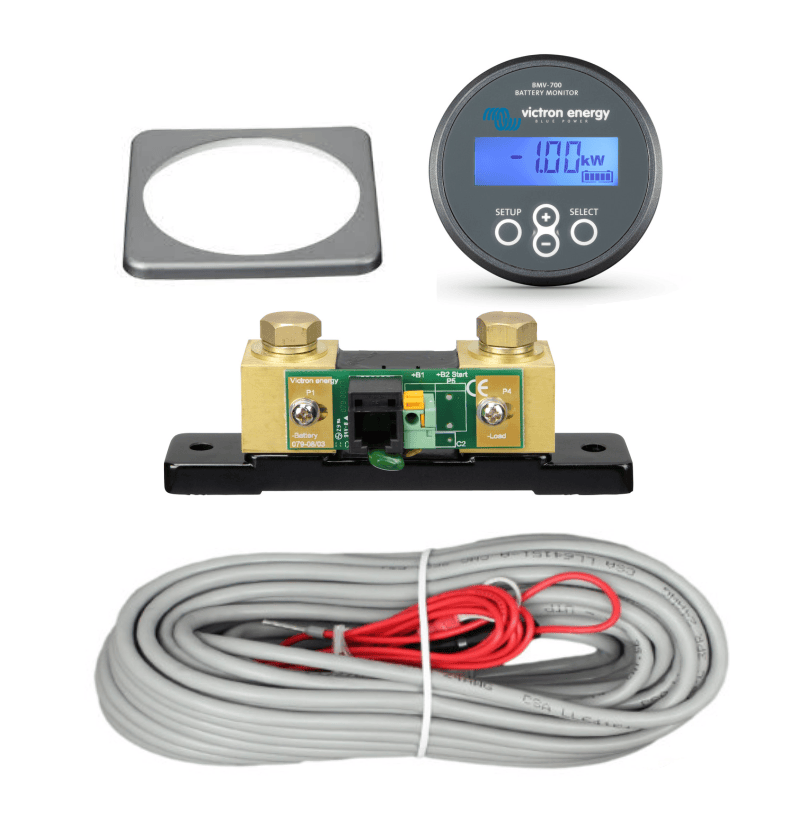

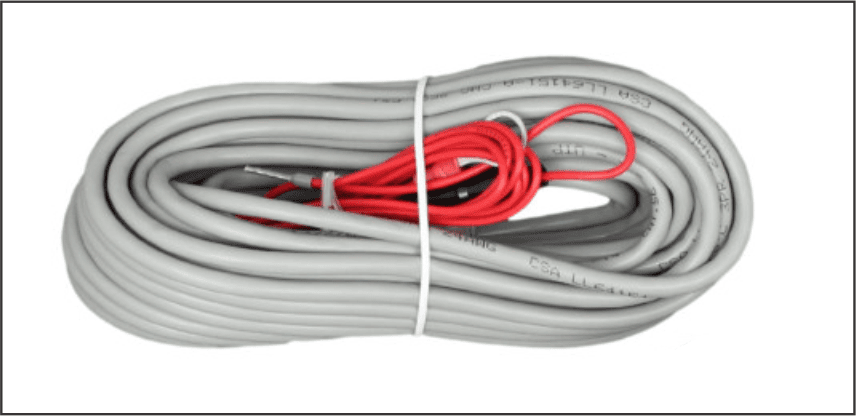

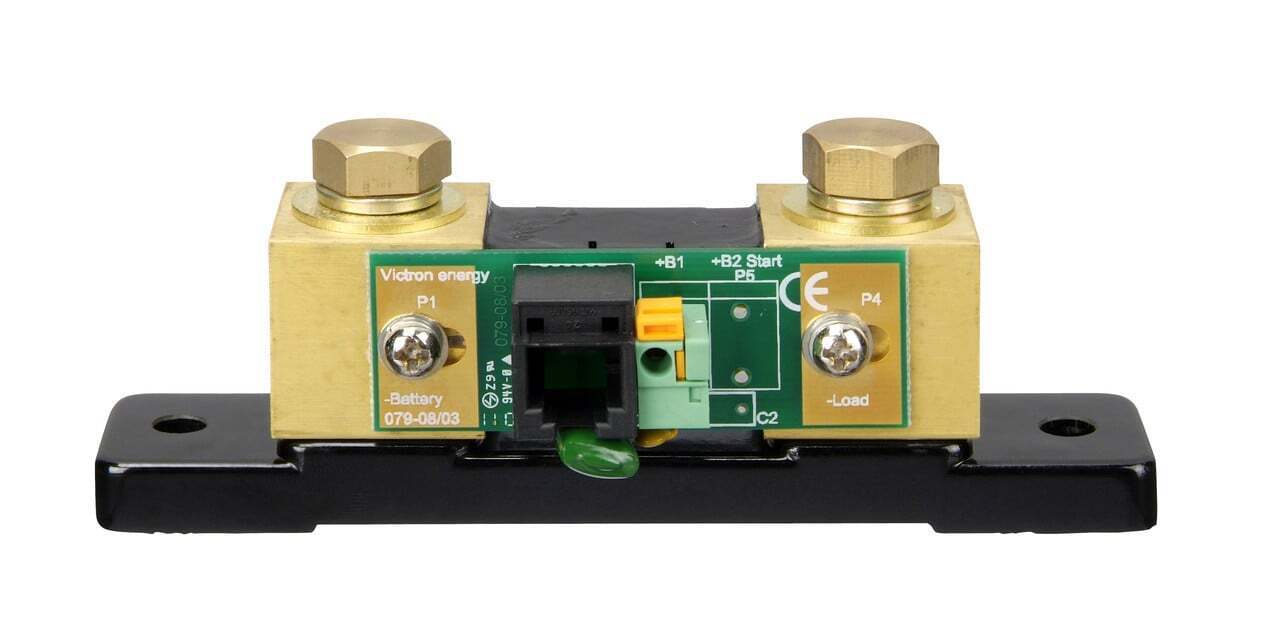

All electrical connections of the BMV-700 are made to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. The package includes an RJ 12 cable (10 m) and a battery cable with fuse (2 m). There are no other components needed for installation. Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting, and screws for the front mounting.

BMV-700 Battery Monitor: Standard Features

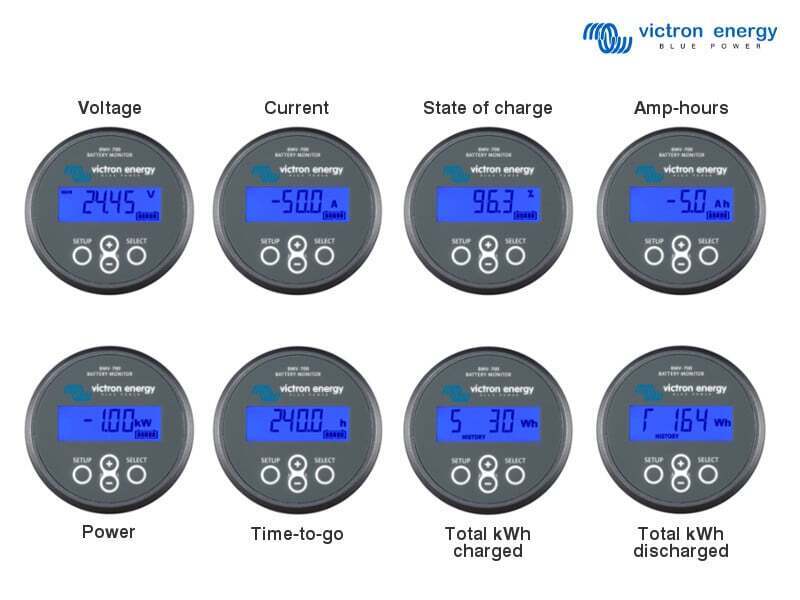

  • Displays battery voltage, current, power, ampere-hours consumed, and state of charge
  • Calculates remaining time at the current rate of discharge
  • Offers programmable visual and audible alarm
  • Includes programmable relay to turn off non-critical loads or to run a generator when needed
  • Comes with 500 Amp quick connect shunt and connection kit - Shunt selection capability up to 10,000 Amps
  • Features VE.Direct communication port
  • Stores a wide range of historical events for evaluating usage patterns and battery health
  • Supports a wide input voltage range: 6.5 – 95V
  • Provides high current measurement resolution: 10 mA (0.01A)
  • Offers low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V
Ideal for Caravans, RVs

The BMV-700 Battery Monitor is not just a piece of equipment; it's an essential companion for your RV and off-grid living. With its advanced features and easy-to-install design, it's perfect for anyone who values efficiency, reliability, and autonomy.

Perfect for RVs: The BMV-700 is an ideal choice for RV owners. It allows you to closely monitor your battery status, ensuring you never run out of power while on the road or parked at a camping site. The precise readings allow for efficient power management, reducing the risk of battery depletion and extending the lifespan of your battery. The BMV-700's compact design makes it an unobtrusive addition to your RV's electrical system.

Excellent for Off-grid Living: For those living off-grid, the BMV-700 is an invaluable tool. Whether you're running a remote cabin, a solar-powered workshop, or a boat, the BMV-700 helps you keep a close eye on your power consumption and battery health. Its wide input voltage range and low current consumption make it a versatile monitor for various off-grid setups.

Frequently Asked Questions about the BMV-700 Battery Monitor
What is the difference between the SmartShunt, BMV-712, and BMV-700?
All three devices are designed to monitor your battery, but they each have distinct features. The BMV-700 is a high precision battery monitor that tracks the status of your battery and displays information like voltage, current, and power. The BMV-712 has the added feature of built-in Bluetooth, which allows you to access your battery information remotely through the VictronConnect app. The SmartShunt is essentially a BMV but without a display. It is a good alternative if you have a system with Bluetooth and prefer to read the system’s data on your phone or tablet, via the VictronConnect app.

Is the BMV-700 compatible with all types of batteries?
Yes, the BMV-700 is designed to work with various types of batteries including AGM, Li-ion, Gel, and Flooded. However, for accurate readings, it's important to correctly set the battery capacity and other parameters in the BMV-700 settings.

Do I need any additional equipment to install and use the BMV-700?
The BMV-700 comes with all the necessary equipment for installation, including an RJ 12 cable and a battery cable with a fuse. It connects to a quick connect PCB on the current shunt. Assuming you have one battery negative lead, normally you can cut it, crimp 2x M10 lugs on to it, and connect them to the BMV. However, for remote monitoring, you may want to consider the BMV-712 which comes with built-in Bluetooth.

Specifications:

Victron Energy Limited Warranty Policy


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.


During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.


This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.


Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.


Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.


Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.


As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.


Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.


Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.


Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.


For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

GTIN: 8719076020066
