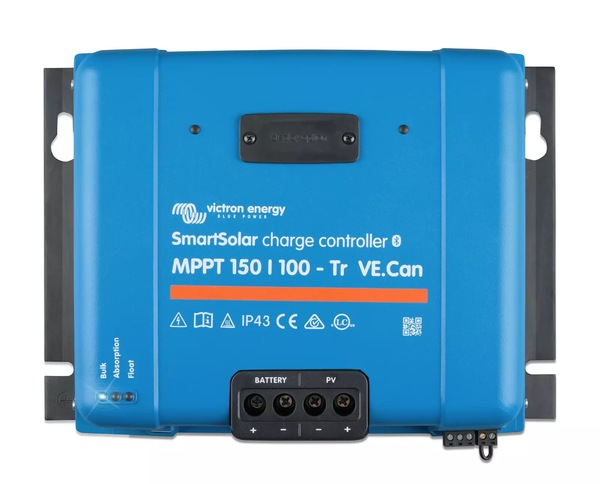

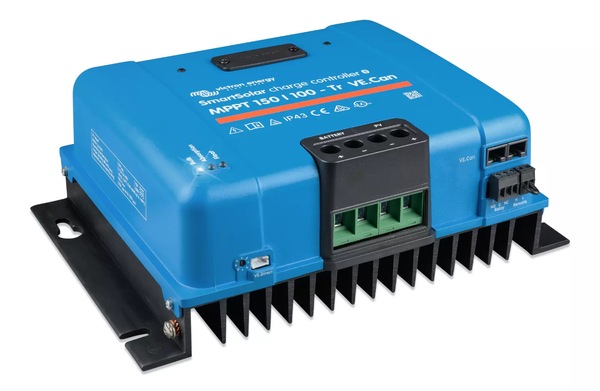

Victron SmartSolar MPPT 150/100-Tr VE.Can Solar Charge Controller - SCC115110411
- Ultra-fast Maximum Power Point Tracking (MPPT) for optimal energy harvest in changing light conditions
- Advanced MPPT detection algorithm locates the optimal power point even under partial shading
- Maximum efficiency exceeds 98%, with fanless design for silent operation
- Battery voltage auto-detect (12V/24V/36V/48V systems supported)
- Fully programmable charging algorithm with 8 selectable presets via rotary switch
- Extensive protection features: over-temperature derating, PV short circuit, PV reverse polarity, and reverse current protection
- Bluetooth Smart built-in for wireless setup, monitoring, and firmware updates via VictronConnect app
- Internal temperature sensor compensates charging voltage based on ambient conditions
- Optional external sensing for battery voltage, temperature, and current via Smart Battery Sense, BMV-712, or SmartShunt
- VE.Direct and VE.Can communication ports for wired integration with GX devices and PC
- VE.Can supports synchronization of up to 25 SmartSolar units, and 10 units via Bluetooth
- Remote on/off input suitable for VE.Bus BMS or external switch control
- Programmable relay output for alarm or system event-based automation
- Fully discharged battery recovery function: initiates charging even from 0V on Li-ion batteries
- Optional pluggable SmartSolar LCD display for real-time monitoring and local configuration
- Free Express Postage included Australia-wide
- Please check the datasheet or visit Victron Energy�s official website for full specifications
- 5-Year warranty backed by Victron Energy

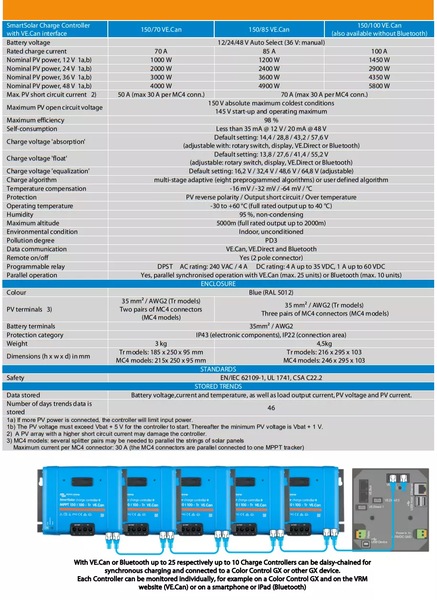

Specifications:
