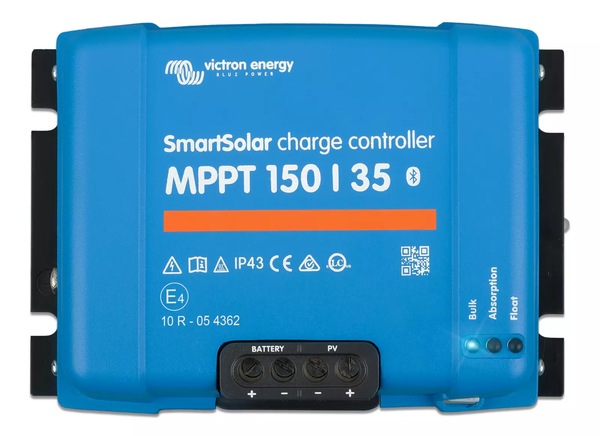

Victron SmartSolar MPPT 150/35 Bluetooth Solar Charge Controller
- Battery voltage: 12 / 24 / 48?V auto-select (36?V via software)
- Rated charge current: 35?A
- Nominal PV power: 500?W (12?V), 1000?W (24?V), 1500?W (36?V), 2000?W (48?V)
- Max PV short circuit current: 40?A
- Max PV open circuit voltage: 150?V (absolute, coldest conditions)
- Maximum efficiency: 98%
- Charge algorithm: Multi-stage adaptive with 8 pre-set profiles
- Data communication port: VE.Direct
- Power terminals: 16?mm� / AWG6
- Protection: PV reverse polarity, output short circuit, over-temperature, reverse current
- Protection rating: IP43 (electronics), IP22 (connection area)
- Dimensions: 130�186�70?mm
- Weight: 1.25?kg
- Bluetooth Smart built-in � no dongle required
- VE.Direct for connection to Color Control GX, PC, or other GX devices
- Ultra-fast MPPT improves energy harvest in variable light
- Advanced MPPT detection for shaded conditions
- High conversion efficiency � full output up to 40?�C
- Fully programmable charge profiles via software or rotary switch
- Internal temperature sensor adjusts charge voltage by temperature
- Optional Smart Battery Sense or BMV-712 for external sensing
- Recovers fully discharged batteries, including 0?V Li-ion with disconnect
- Ideal for residential, off-grid, RV, marine, and remote solar systems
- 5-Year Victron Energy warranty

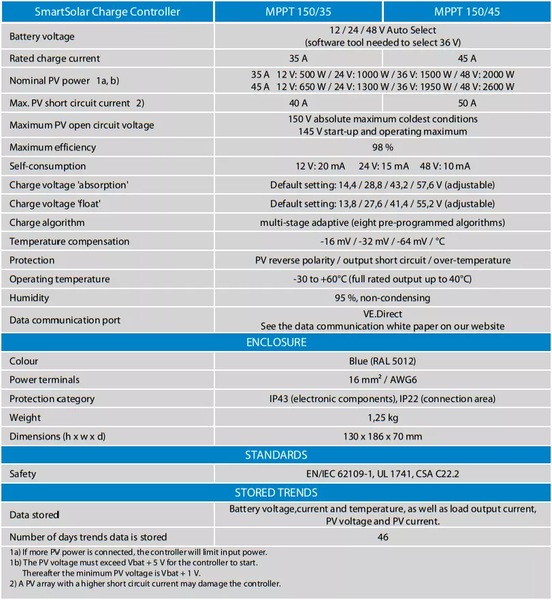

Specifications:
Check Description
