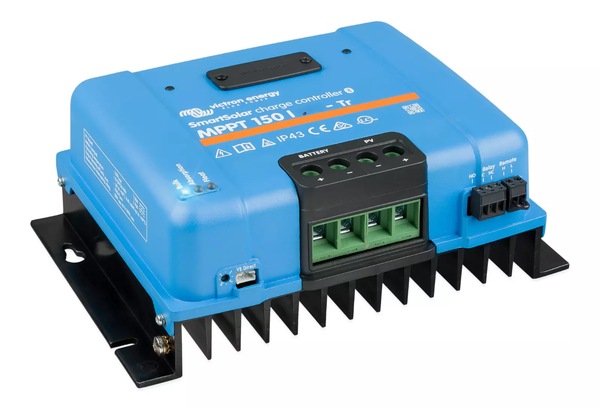

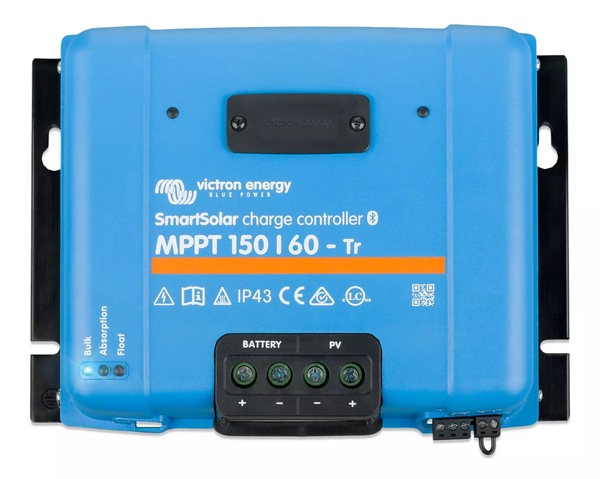

Victron SmartSolar MPPT 150/60-Tr 12/24/36/48V Solar Charge Controller - SCC115060211
- Built-in Bluetooth Smart for wireless setup, monitoring, and updates via VictronConnect
- Supports 12V, 24V, 36V, and 48V battery systems
- Maximum PV voltage: 150V DC
- Rated charge current: 60A
- Ultra-fast Maximum Power Point Tracking (MPPT) improves solar energy harvest by up to 30% over PWM and 10% over slower MPPTs
- Load output with automatic disconnect to prevent battery over-discharge
- Optional Battery Life algorithm dynamically adjusts disconnect thresholds for optimal charge recovery
- Short circuit-proof load output (relay interface on 48V model)
- Fully programmable charge algorithm with presets (see Victron website)
- Day/night timing and dimming functions available
- Internal temperature sensor for voltage compensation
- Optional Smart Battery Sense or BMV-712 integration for external voltage and temperature sensing via Bluetooth
- Battery recovery function starts charging from 0V, including fully disconnected Li-ion batteries

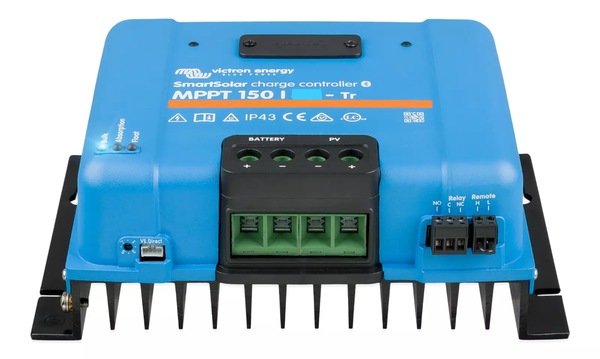

- Tr model with screw terminal PV connections
- Ideal for off-grid solar systems, RVs, marine, or remote power setups

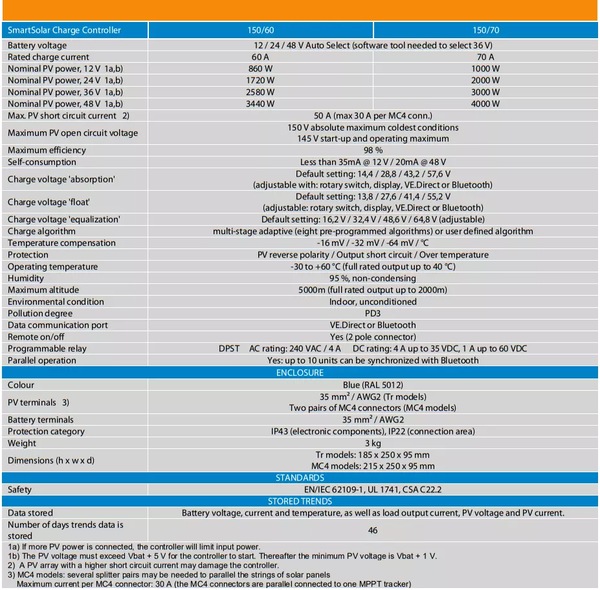

Specifications:
