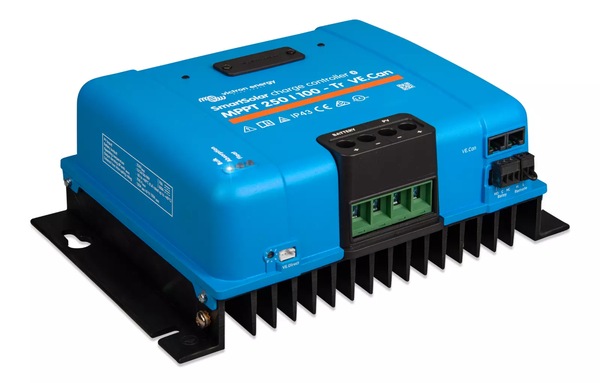

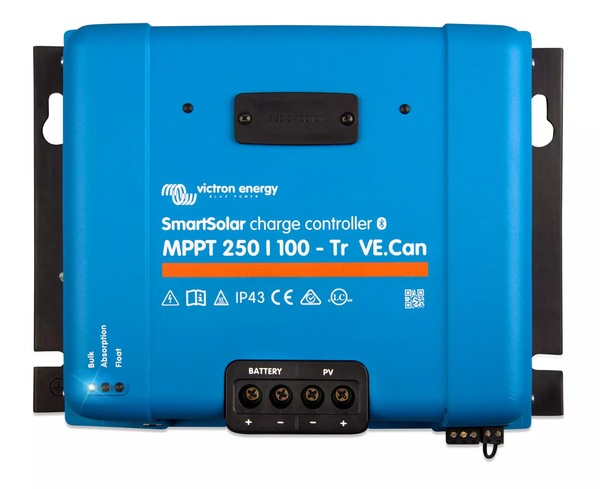

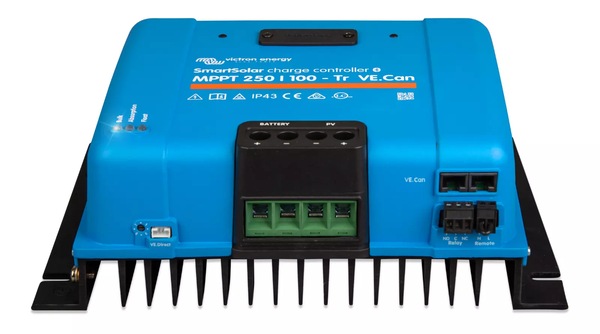

Victron SmartSolar MPPT 250/100-Tr VE.Can - SCC125110412
- Battery voltage: 12 / 24 / 48?V auto-select (36?V manual configuration)
- Rated charge current: 100?A
- Max PV open circuit voltage: 250?V
- Maximum PV power (48?V system): 5800?W
- Ultra-fast MPPT boosts energy harvest by up to 30% compared to PWM controllers
- Advanced MPP detection algorithm optimizes energy output in partial shading conditions
- Peak efficiency up to 99%, with fanless cooling for silent operation
- Fully programmable charging profiles with 8 preset algorithms via rotary switch
- VE.Can for syncing up to 25 units; Bluetooth for syncing up to 10 units
- VE.Direct and VE.Can ports for integration with GX devices and PCs
- Bluetooth Smart built-in for wireless monitoring and setup via VictronConnect App
- Protection features: over-temperature, PV short circuit, reverse polarity, and reverse current
- Recovers fully discharged batteries, including 0V Li-ion with disconnect
- Supports Smart Battery Sense, BMV-712, and SmartShunt for external voltage/temp sensing
- Remote on/off functionality with VE.Bus BMS support
- Optional plug-in SmartSolar LCD display for local monitoring and control
- Operating temperature: -30?�C to +60?�C
- Humidity tolerance: up to 95%, non-condensing
- Dimensions: 216�295�103?mm
- Weight: 4.5?kg
- Includes: SmartSolar MPPT 250/100-Tr VE.Can and user manual
- Optional accessories: LCD Display, Smart Battery Sense, BMV-712, SmartShunt
- Ideal for large residential, off-grid, or commercial solar installations

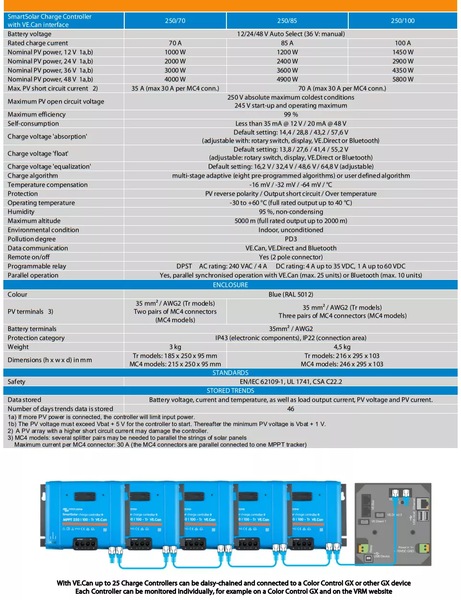

Specifications:
