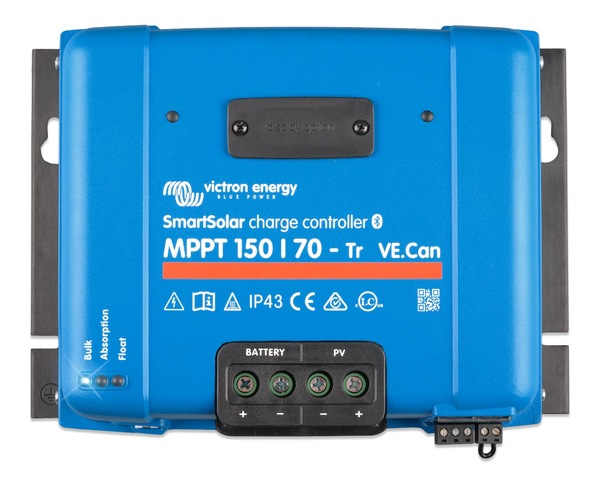

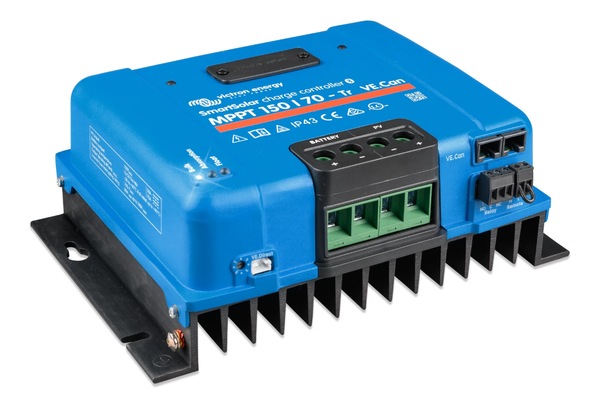

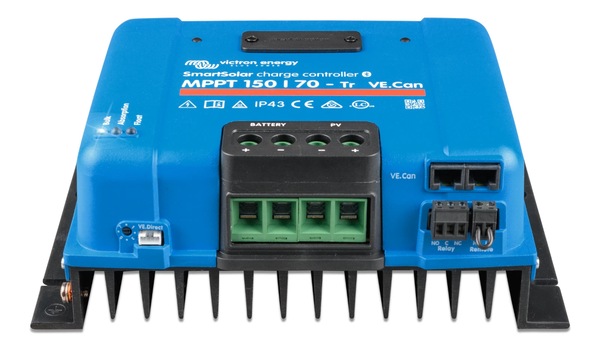

Victron Energy SmartSolar MPPT 150/70-Tr VE.Can - SCC115070411
- Ultra-fast MPPT technology boosts solar energy harvest by up to 30% vs PWM and 10% vs slower MPPTs
- Supports 12V, 24V, and 48V battery systems with auto voltage detection
- High 70A charge current handles PV arrays up to 1000W (12V), 2000W (24V), 4000W (48V)
- Max PV open circuit voltage: 150V, PV short circuit current: 70A
- Built-in Bluetooth for wireless monitoring and configuration via VictronConnect app
- VE.Can communication enables synchronization and integration with other Victron VE.Can devices
- VE.Direct port for wired data connection to GX devices or USB interface
- BatteryLife algorithm manages load disconnect for extended battery health
- Programmable charge algorithm compatible with AGM, Gel, Flooded, and Lithium batteries
- Load output prevents battery over-discharge by disconnecting at pre-set voltage
- Peak efficiency of 99% ensures minimal energy loss during conversion
- Comprehensive electronic protection: over-temp, reverse polarity, short circuit, and reverse current
- Self-consumption: 50mA (12V), 35mA (24V), 20mA (48V)
- Operating temperature: -30�C to +60�C (full output up to 40�C)
- Ideal for large-scale off-grid, commercial, RV, marine, and high-demand solar installations

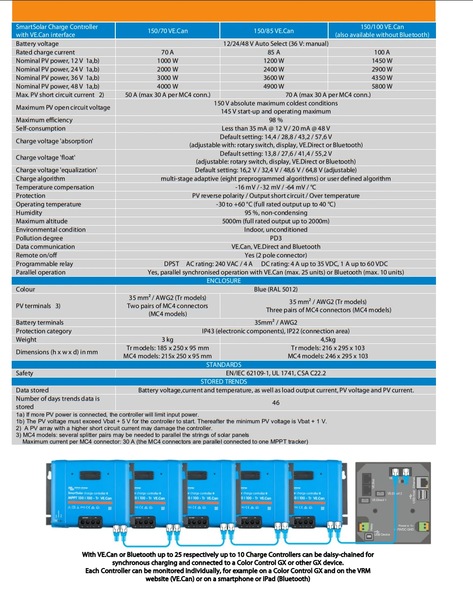

Specifications:
