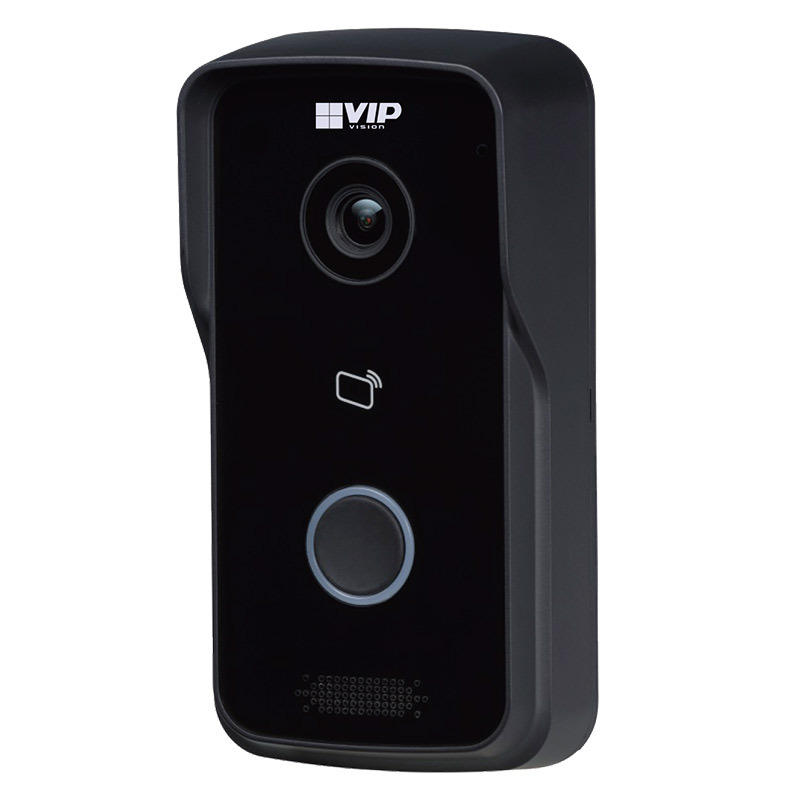

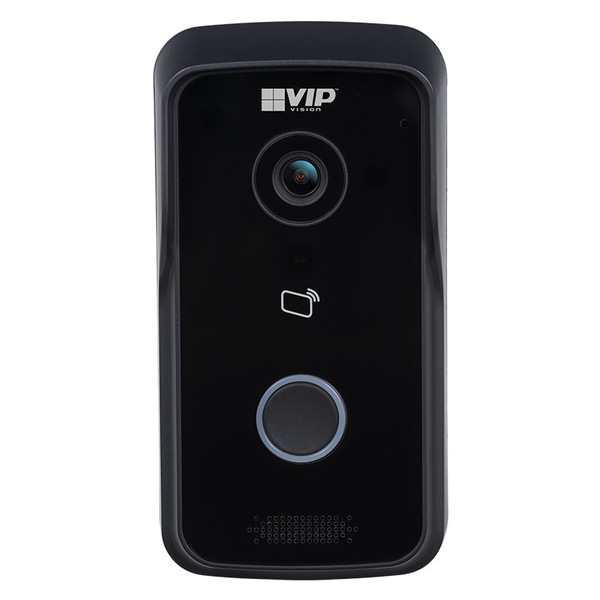

The INTIPRDSJ is a single channel video intercom solution ideal for homes and single-premises buildings. It can be operated via a single backlit button or via NFC-capable card, with voice prompts to inform the user about door lock, call & resident status. Also features door sensor and door strike integration, remote unlock via smartphone and visitor audio/video messaging functions.

Product features:

• 1/4’’ 1.0MP camera with 122° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Power over Ethernet (12VDC, 802.3af)
• IP65 rated weather resistant matte plastic body (front plate)

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

General

• Main Processor: Embedded Microprocessor
• Camera System: 1/4’’ 1.0 Megapixel CMOS (Horizontal FoV: 122°)
• Low-Light Application: Day/Night ICR
• Card Support: Built-in NFC Card Reader
• Keypad: 1 Mechanical Button
• Tamper Detection: Yes
• Input / Output: 1 x alarm input / 1 x alarm output / 1 x RS485
• Audio / 2-Way Talk: Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
• Internal MicroSD Slot: Yes, up to 64GB
• Ethernet / Network: 10M/100Mbps Self-adaptive / TCP/IP protocol
• Max. Additional Door Stations: 20
• Max. Indoor Monitors: 10
• App Connection: QR Code

Environmental

• Vandal Resistant: N/A
• Ingress Protection: IP65 (Front plate)
• Installation Options: Surface mount
• Construction: PC + Acrylic
• Installation Kit: N/A
• Power Input: / Use 12VDC 1A, PoE (802.3af) / Operation < 5W

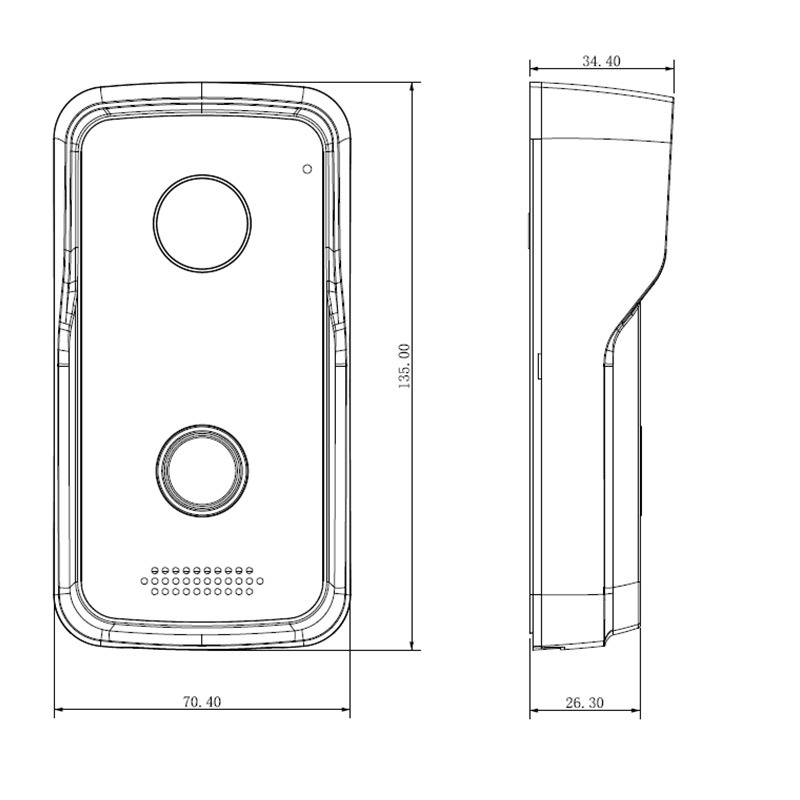

• Weight / Dimensions: 0.32kg / 71 x 35 x 135mm
