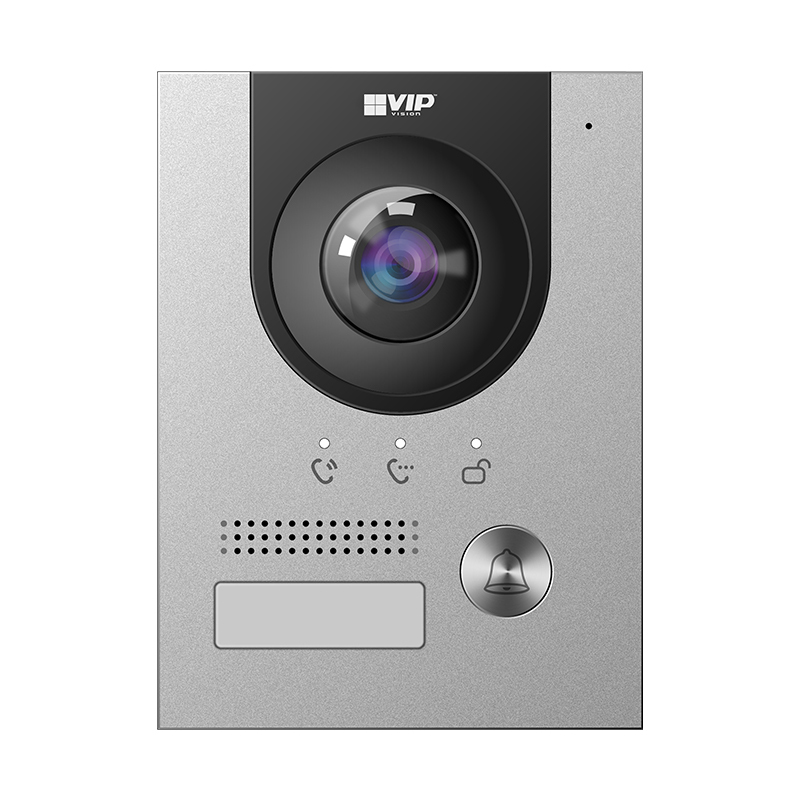

The INTIPRDSG3 is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.

Features

• 1/2.8’’ 2.0MP 1.95mm lens camera with 160° FOV
• Built-in microphone and speaker for 2-way talk
• Connect with intercom monitor(s) via Ethernet
• Alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP55/IK07 aluminium body
• Power via 48VDC or Power over Ethernet (802.3af)
• Flush and surface mount installation options sold seperatley

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

General

• Main Processor: Embedded Microprocessor
• Camera System: 1/2.5’’, 2.0 Megapixel CMOS camera with 1.9mm lens (Horizontal FoV: 169°), WDR
• Low-Light Application: Infrared
• Card Support: N/A
• Keypad: 1 Mechanical Button
• Tamper Detection: Yes
• Input / Output: 1 x alarm input / 1 x alarm output / 1 x RS485
• Audio / 2-Way Talk: Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
• Internal MicroSD Slot: Yes, up to 64GB
• Ethernet / Network: 10M/100Mbps Self-adaptive / TCP/IP protocol
• Max. Additional Door Stations: 20
• Max. Indoor Monitors: 10
• App Connection: QR Code

Environmental

• Vandal Resistant: IK07
• Ingress Protection: IP55

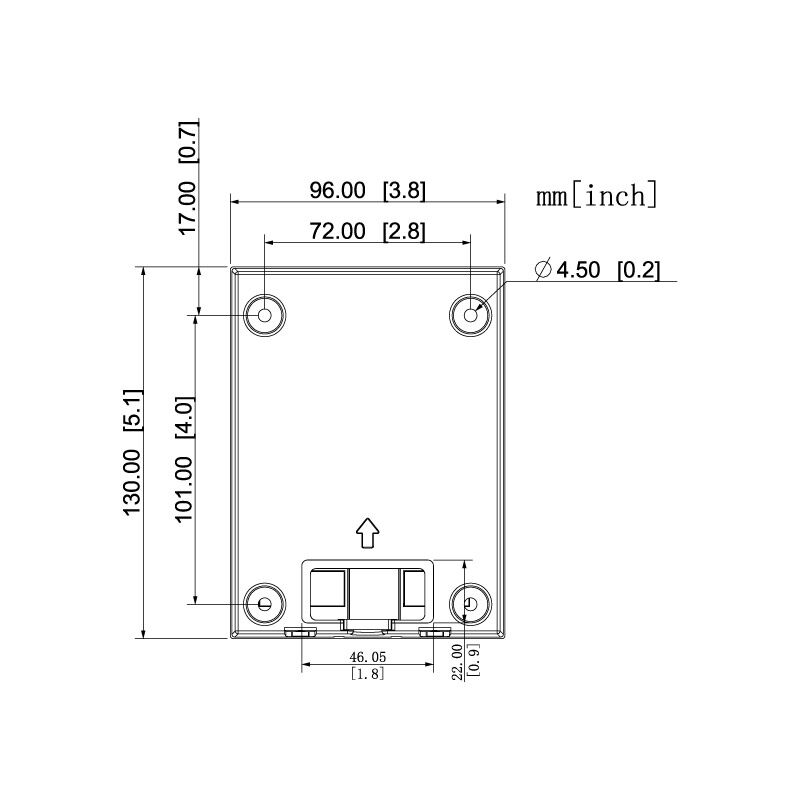

• Installation Options: Supports surface box and flush box mount
• Construction: Aluminium
• Installation Kit: N/A
• Power Input / Use: 48VDC 1A, PoE (802.3af) / Operation < 12W

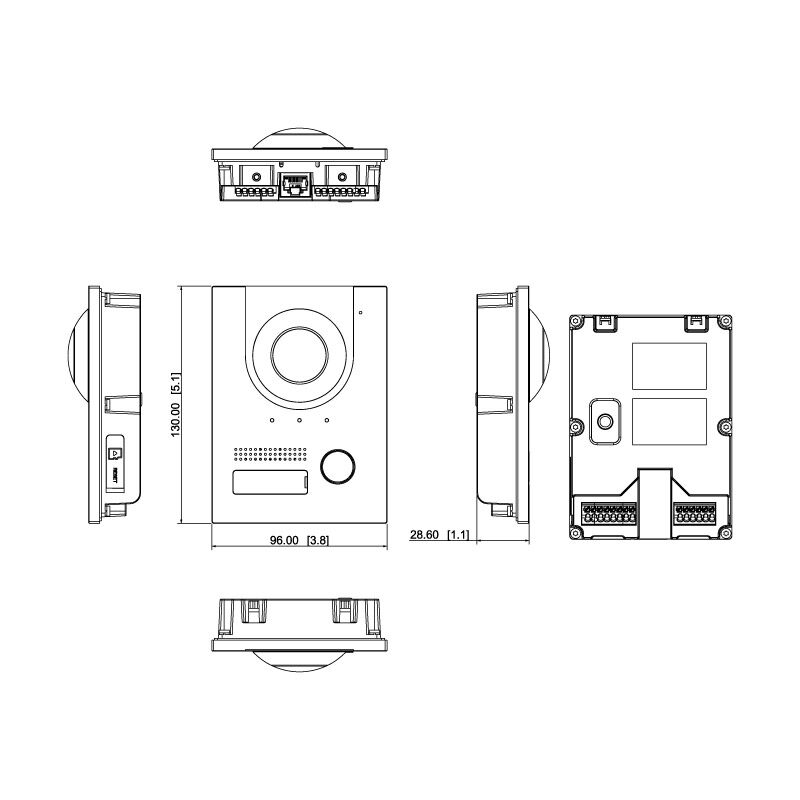

• Weight / Dimensions: 0.35kg / 130 x 96 x 29mm
