Compatible with a variety of tripods such as 1/4 inch, 3/8 inch and tripods for astronomical telescopes

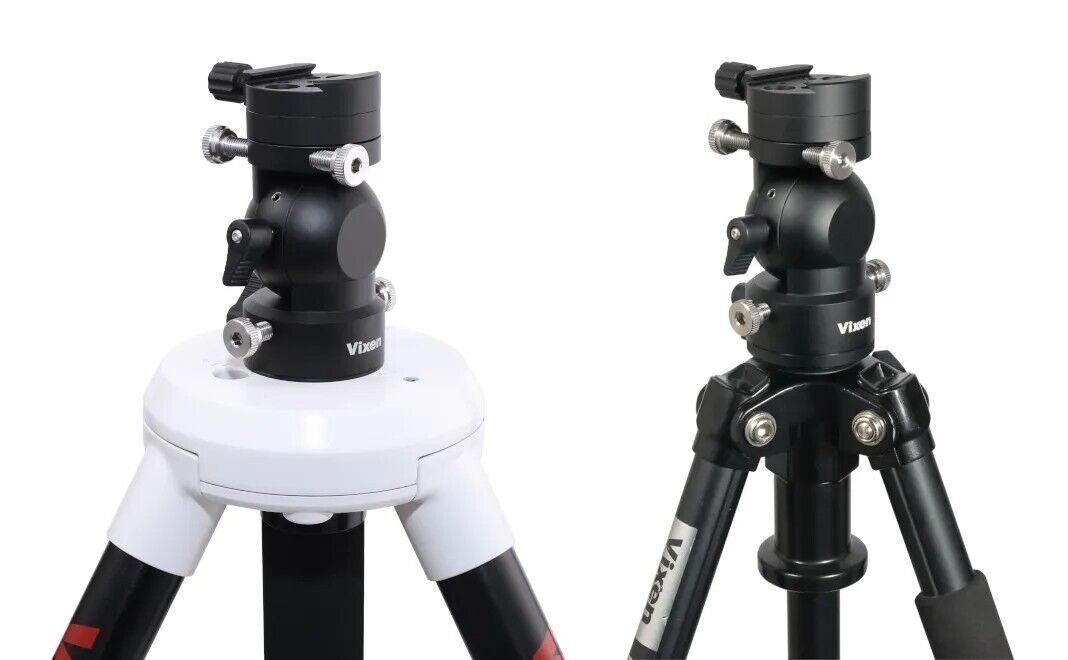

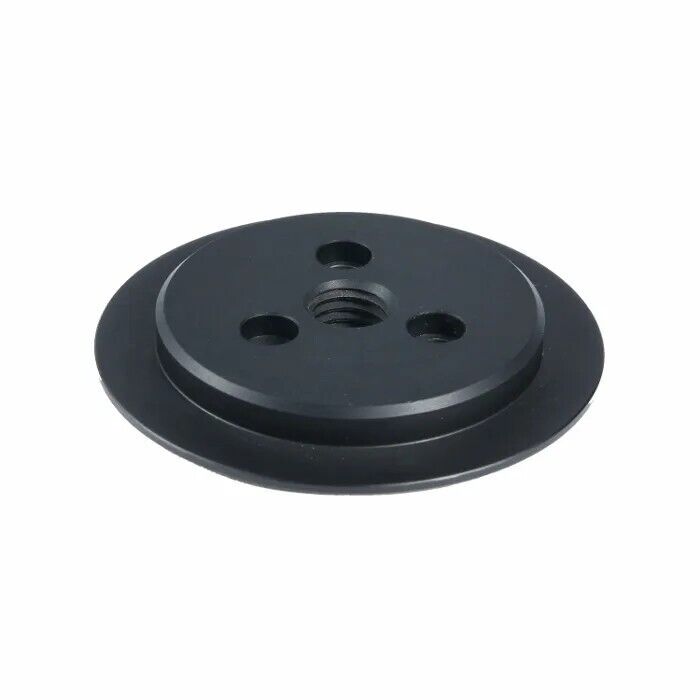

Equipped with a removable tripod adapter on the bottom. The tripod adapter is equipped with a 3/8 inch screw, and it also supports the 1/4 inch standard by using the conversion adapter together. Can be widely installed on camera tripods sold separately or on the market. Also, by replacing the camera tripod adapter plate (installed in the main body) with the attached astronomical telescope tripod adapter, it can also be mounted on our astronomical telescope tripod such as APP-TL130. Compatible with APP-TL30, ASG-CB90, SXG-HAL130, SXG-P85DX, SXG half pillars.

Wide setting range: altitude -35 to 90o, azimuth 360o (stepless)

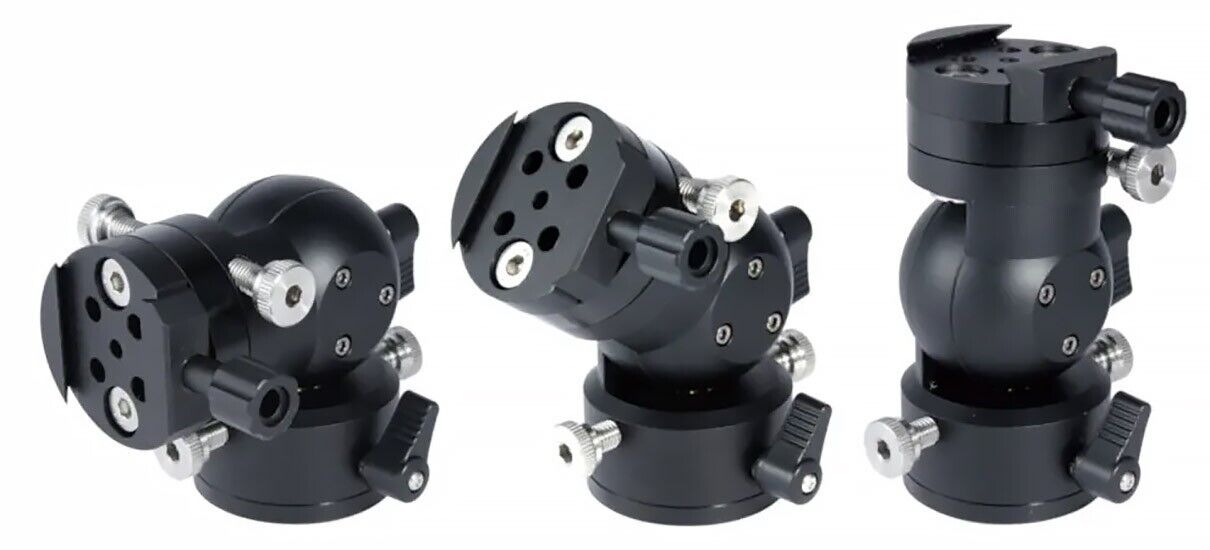

The platform surface can be freely moved at an altitude of 0o to 90o and azimuth of 360o by loosening the clamp, and it can be used in a wide range of areas and situations. Fine adjustment allows fine adjustment up to 7.5o. Movable over 90o up to about 35o (-35o) on the other side

Double screw type fine adjustment screw that can be securely fixed

The altitude fine movement and the direction fine movement have adopted the double screw type which operates by loosening one screw and tightening the other. Since it is sandwiched with screws from both sides, it is possible to achieve both fine movement and strong fixing. If you like, you can use the included hex wrench to tighten the screws.

Features:

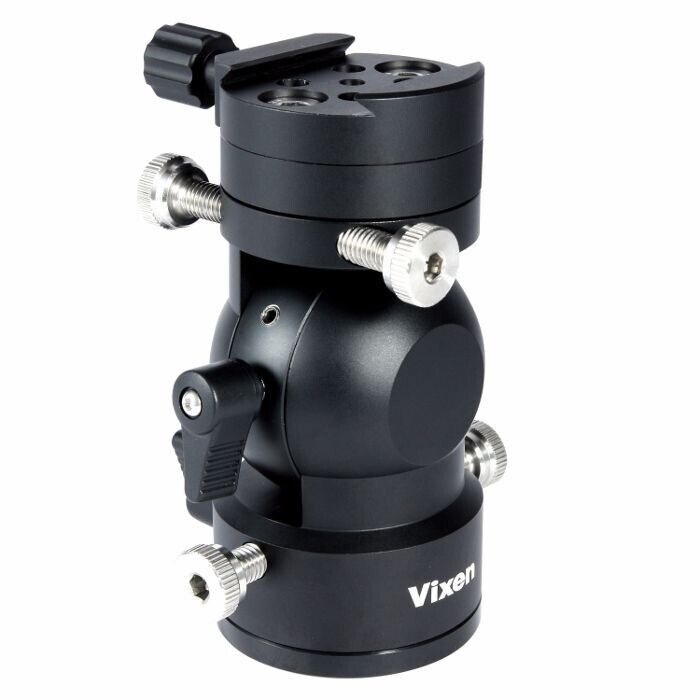

This accessory is used when installing the Starry Sky Platform Polarie U. When adjusting the polar axis precisely using the polar axis telescope PF-LII, it is necessary to move the starry sky platform itself vertically (horizontally) (fine movement), but by using the polar axis fine movement platform, this fine movement Operation is possible. The polar axis fine motion platform is used by mounting it between the camera tripod (head).

Specifications:

- Altitude angle range: 0 to 90o (-35 to 90o) Coarse, movement range Approx. 110o Fine movement range 7.5o

- Azimuth range: 0 to 360o Coarse, movement range 360o Fine movement range 7.5o

- Altitude tremor: Double screw type, fine movement screw specification, 1 rotation about 2o

- Azimuth: Double screw type, fine movement screw specification, 1 rotation about 2o

- Available weight (recommended): About 8 kg

- Compatible models: Starry Sky Platform Polarie U, Starry Sky Platform Polarie, AP Starry Sky Platform, single-lens camera body (commercially available product), thin attachment plate standard compatible

- Mountable tripod etc.: Camera tripod (1/4 inch, 3/8 inch screw), APP-TL30, ASG-CB90, SXG-HAL130, SXG-P85DX, SXG half pillar

- Size: 59 x 126 x 59 mm (excluding protrusions)

- Weight: 795g

In the Box:

Mode: VX35492

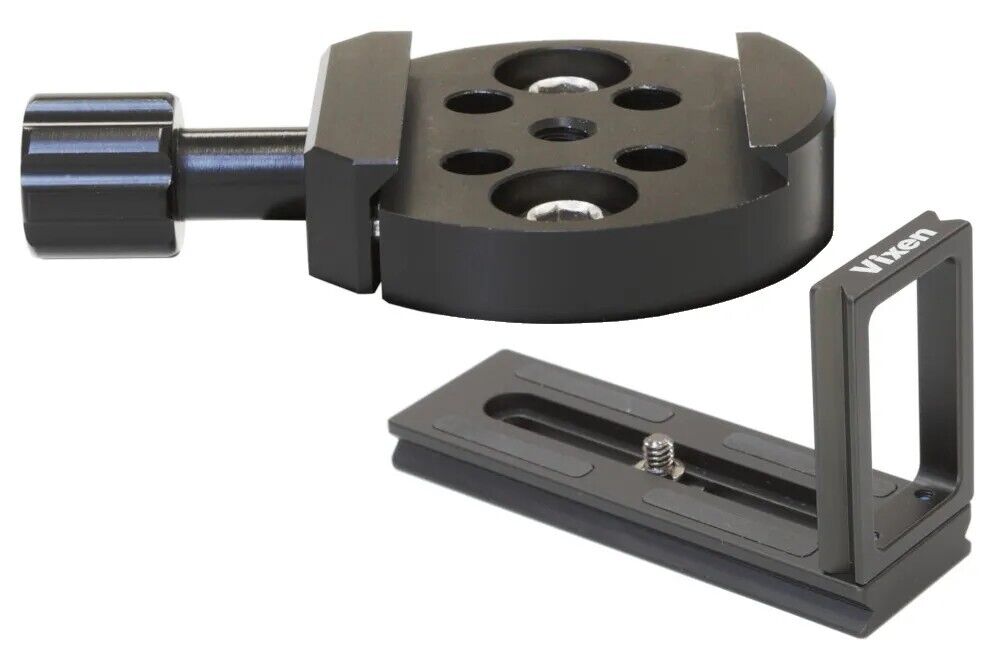

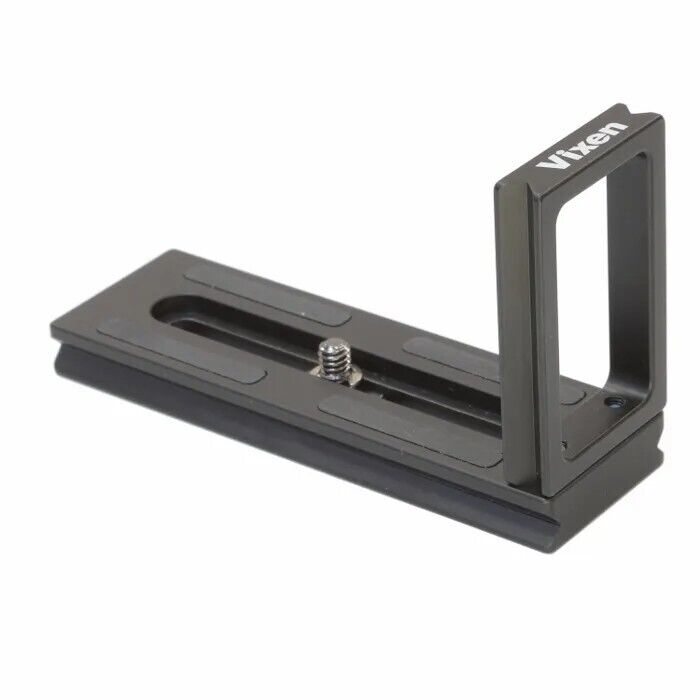

- Quick release angle plate

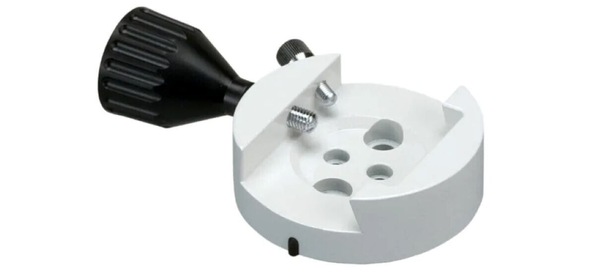

- Astronomical tripod adapter plate

- Hex wrench 5 mm

- Hex wrench 3 mm

- Hex wrench 2.5 mm

- 1/4-3/8 inch screw conversion AD detachable tool

- Instruction manual
