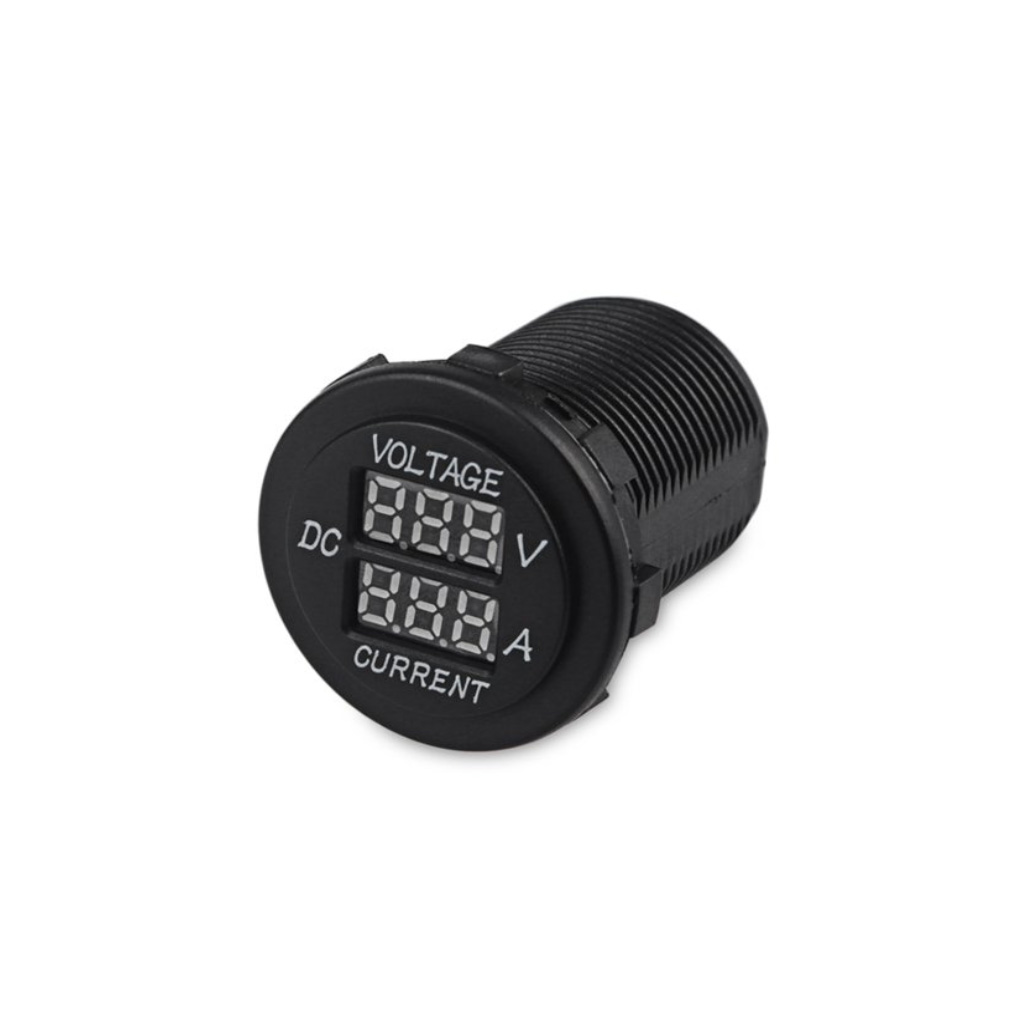

Volt & Amp Meter Round Panel Mount LED Display
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 24 Everyday Rewards points
Dispatch in 2 business days
Collect 24 Everyday Rewards points
Dispatch in 2 business days
Volt & Amp Meter with LED Display
Operating Volts - 12 - 24v
Measuring Volts - 0-29v
Max Amps - up to 10 amps
inc wire crimps
Panel Mount
Round with Screw Lock
Size: 40.7mm (l) x 26.5mm (dia)
Face Diameter: 37mm
Made from high temperature resistant ABS plastic
Volt & Amp Meter with LED Display
Operating Volts - 12 - 24v
Measuring Volts - 0-29v
Max Amps - up to 10 amps
inc wire crimps
Panel Mount
Round with Screw Lock
Size: 40.7mm (l) x 26.5mm (dia)
Face Diameter: 37mm
Made from high temperature resistant ABS plastic
Easy to install
Requires a hole approx 26.5mm in diameter

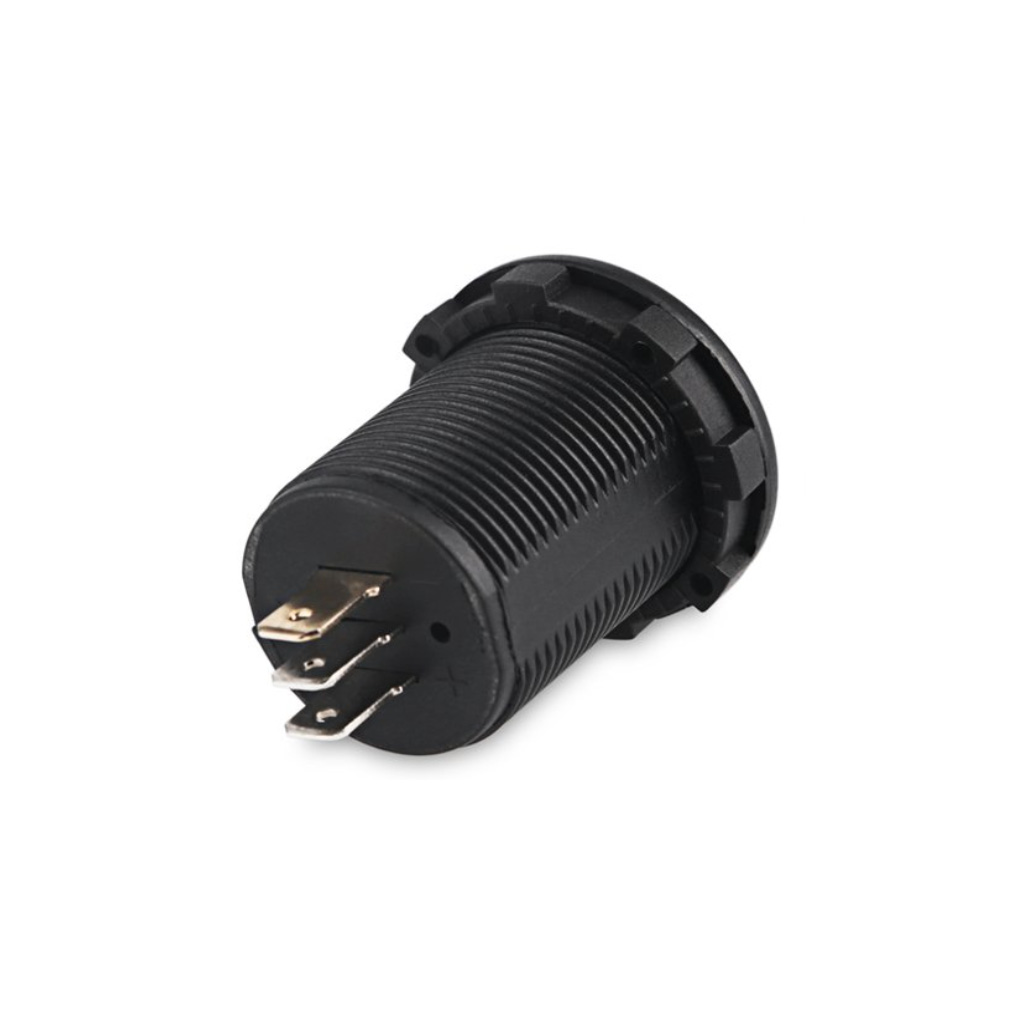

Connect battery positive and load positive to positive terminal
Connect battery negative to battery negative terminal
Connect load negative to load negative terminal
Please not: Built in shunt is up to 10 amps
Includes over current / volt and short circuit protection
MPN: 10021
