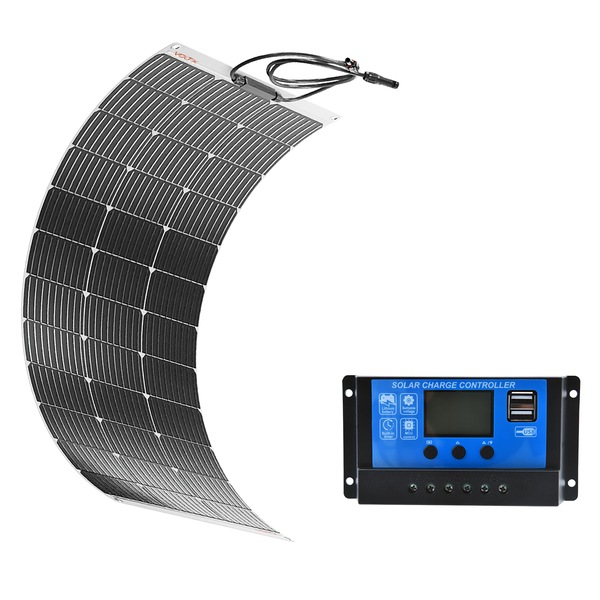

VoltX 100W Solar Panel Flexible + 10A Solar Charge Controller PWM

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$129.95

Collect 129 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 24-48 hours

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

Popular Products

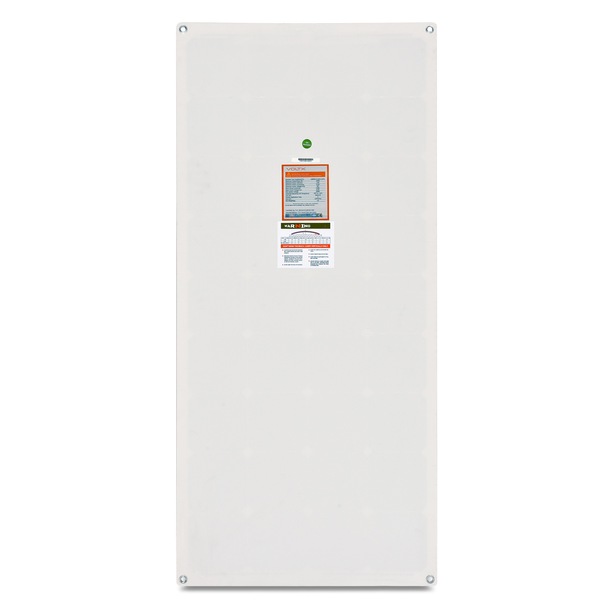

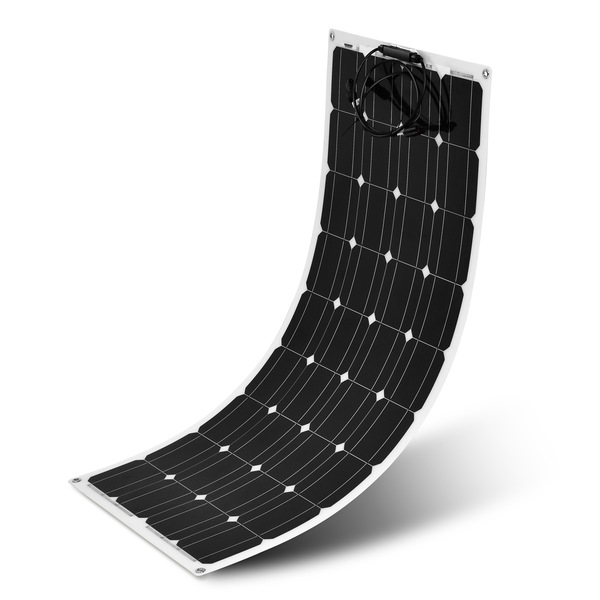

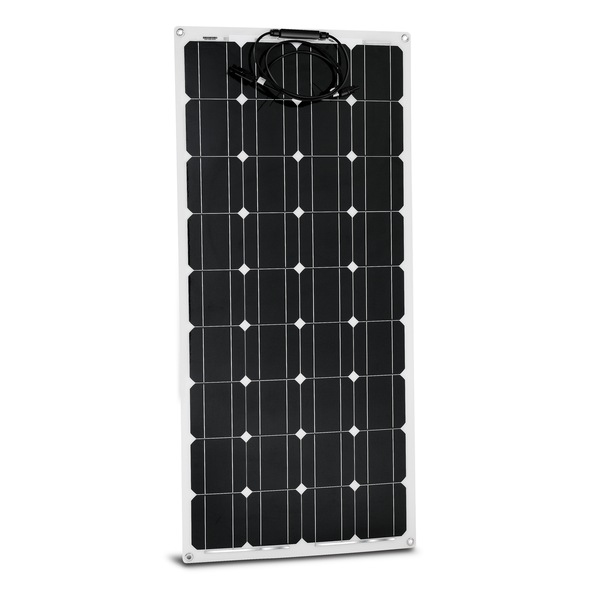

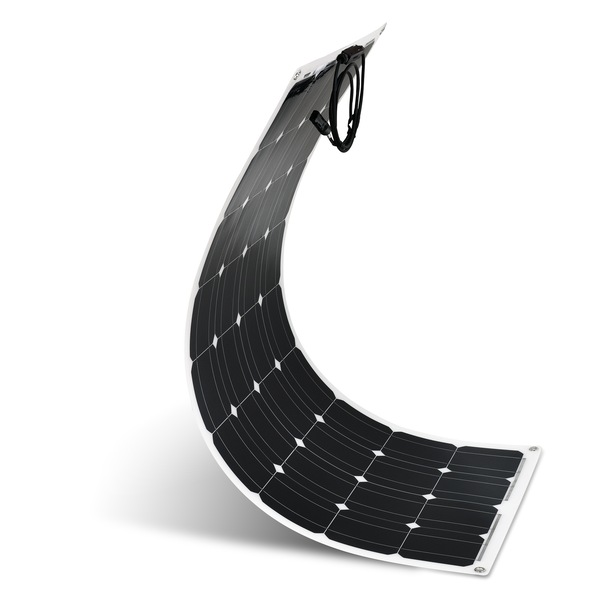

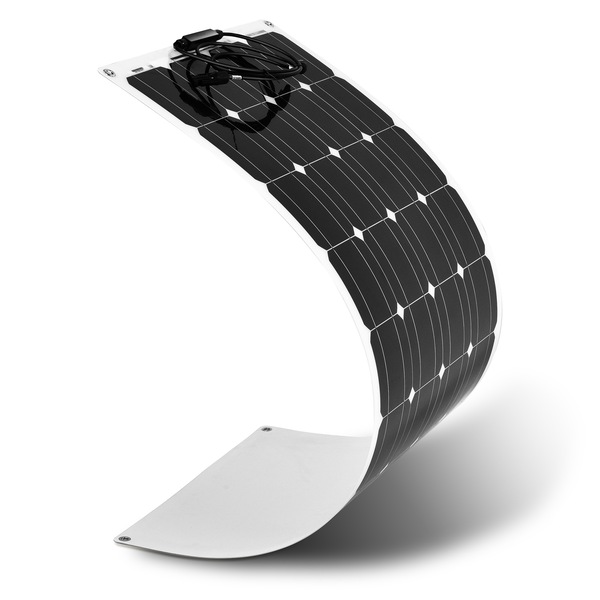

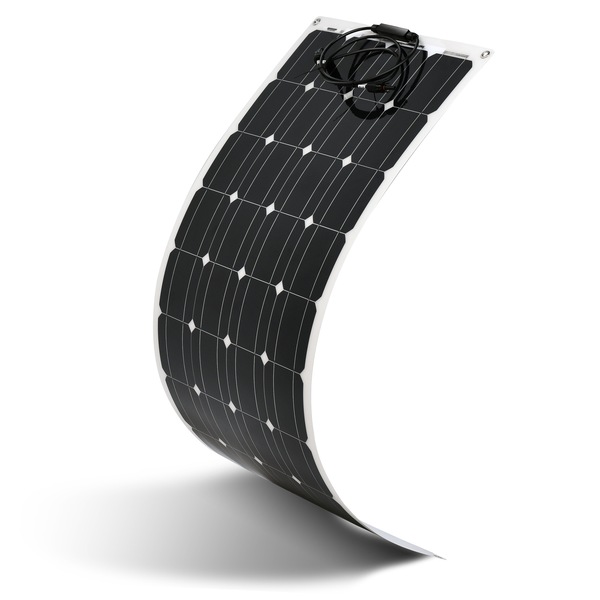

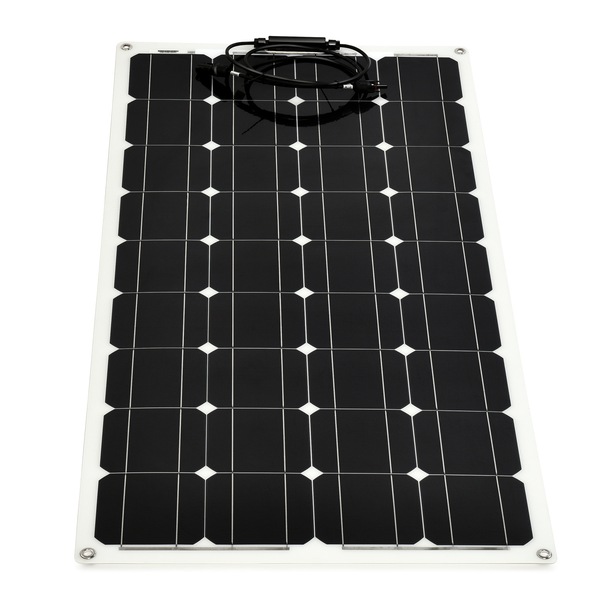

Product 1: VoltX 100W Solar Panel Flexible

  • Specifications

    • Brand: VoltX
    • Max Power: 100W
    • Max Power Voltage (Vmp): 20V
    • Max Power Current (lmp): 5A
    • Open-Circuit Voltage (Voc): 24V
    • Short-Circuit Current (Isc): 5.32A
    • Max System Voltage: 1000V
    • Max Series Fuse Rating: 15A
    • Cell Efficiency: 22.5%
    • Power Tolerance: 0-3W
    • Module Efficiency STC (%): 18.2%
    • Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
    • Working Temperature: -20°C-60°C
    • Temperature Coefficients of Pmax: TkPower: -0.38%/K
    • Temperature Coefficients of Voc: TkVoltage: -0.36 %/K
    • Temperature Coefficients of lsc: TkCurrent: +0.07%/K
    • Nominal Operating Cell Temperature (NOCT): 45±2°C
    • Type: Flexible
    • Solar Cell: Mono-Si, Class A
    • Cell Material: CPC
    • Cell Tech: PERC
    • Panel Leads (Pair-AWG): 4mm²

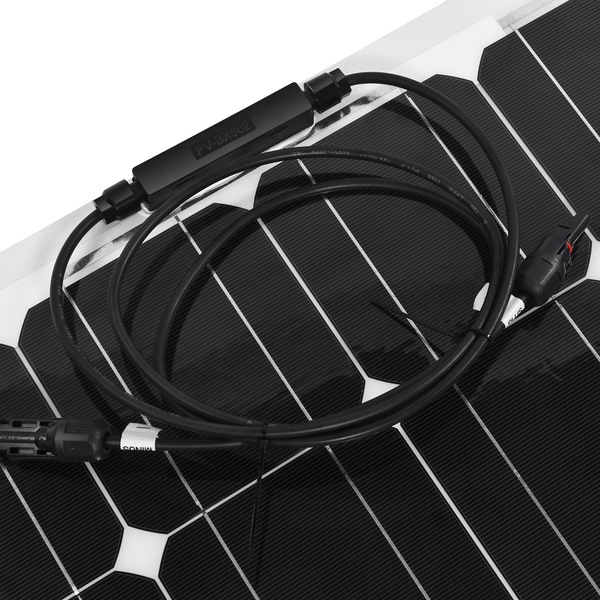

    • Solar Connectors: 0.9m Cable With MC4 Connector

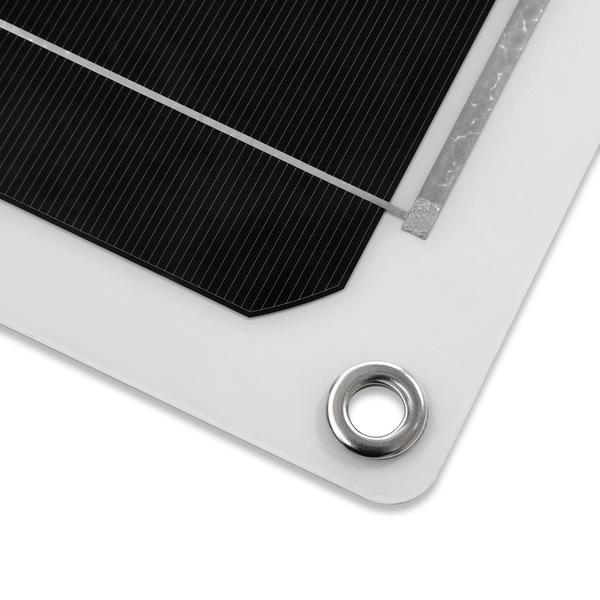

    • Tie Down Points: Yes, 4 Points
    • IP Rating: IP67
    • Certifications: CE, ISO
    • Warranty: 1 Years

  • Dimensions & Weight

    • Product Dimensions: L1085xW512xH2mm
    • Package Dimensions: L1110xW560xH37mm
    • Net Weight: 1.5kg
    • Gross Weight: 2.6kg

  • Package List

    • 1x VoltX 100W Flexible Solar Panel
    • 1x 0.9m Cable With MC4 Connector

    Product 2: 10A Solar Charge Controller PWM

  • Specifications

    • Material: ABS
    • System voltage: 12V / 24V AUTO
    • Rated charge current :10A
    • Max PV Input Power: Input voltage: ≤50V
    • 12V battery: 130W
    • 24V battery: 260W
    • Float charge voltage: 13.7V (adjustable)
    • Discharge stop: 10.7V (adjustable)
    • Discharge reconnect: 12.6V (adjustable)
    • Suitable battery: Flood, AGM, GEL, and Lithium batteries
    • USB output: 5V/2A
    • Operating temperature: -35°C-60°C
    • Product size:
    • 133*70*34mm
    • Weight: 154g
    • Self-consume: <10mA
    • Colour: Blue and black

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348071825

    Estimated Delivery Time Frame:3-8 business days
