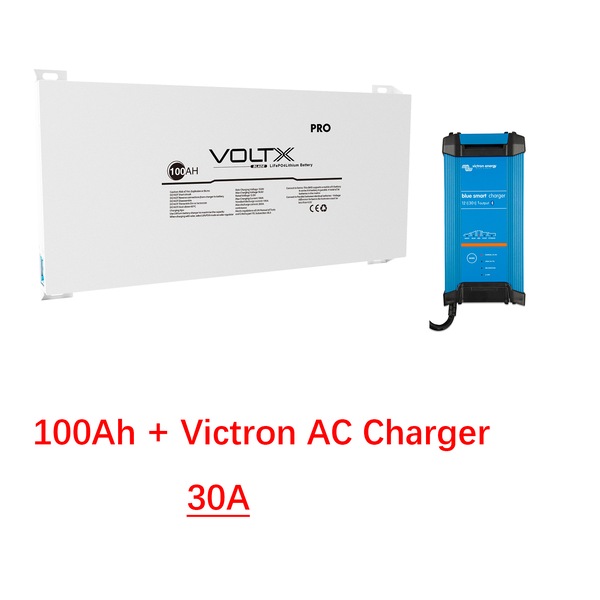

VoltX 12V 100Ah Blade Lithium Battery with 30A AC Charger

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Limited Stock
$1279

Collect 1279 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

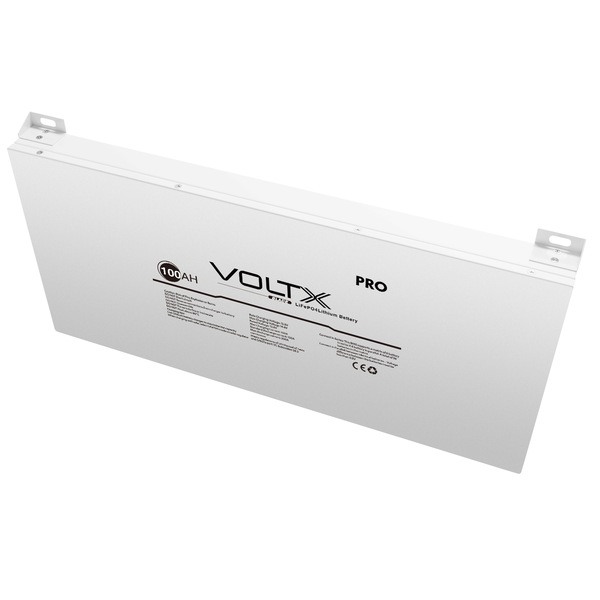

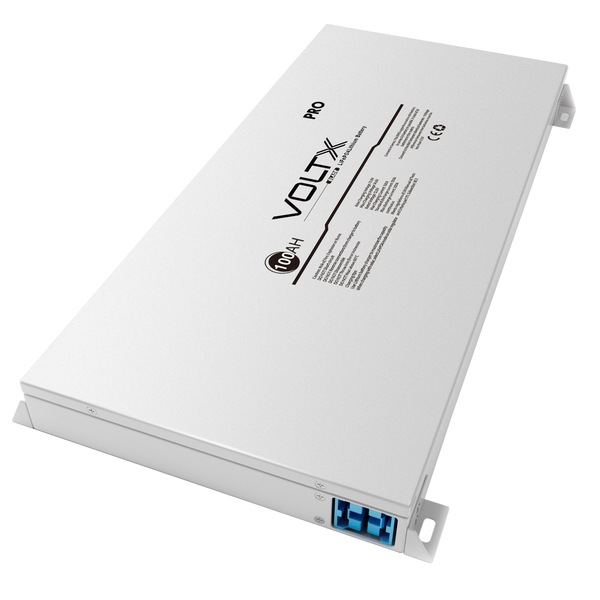

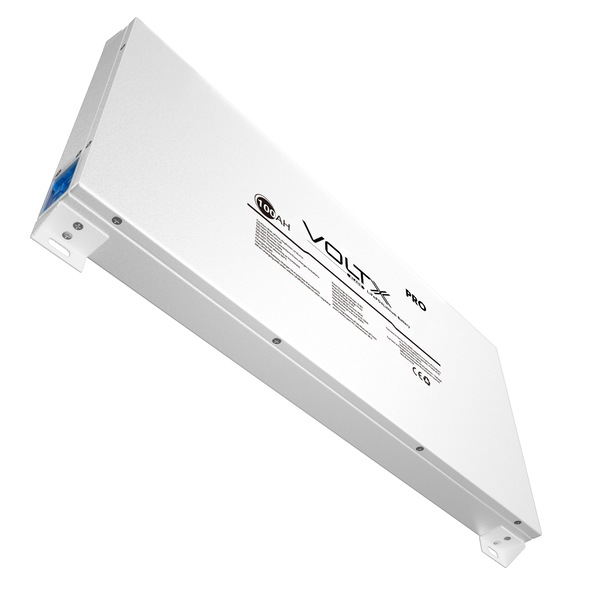

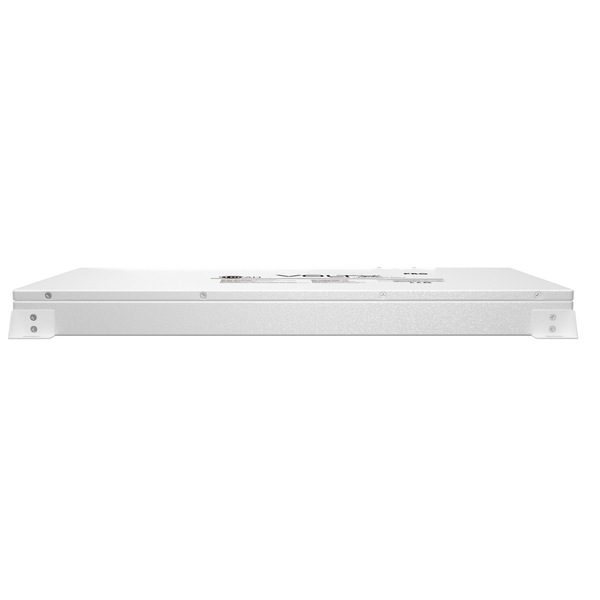

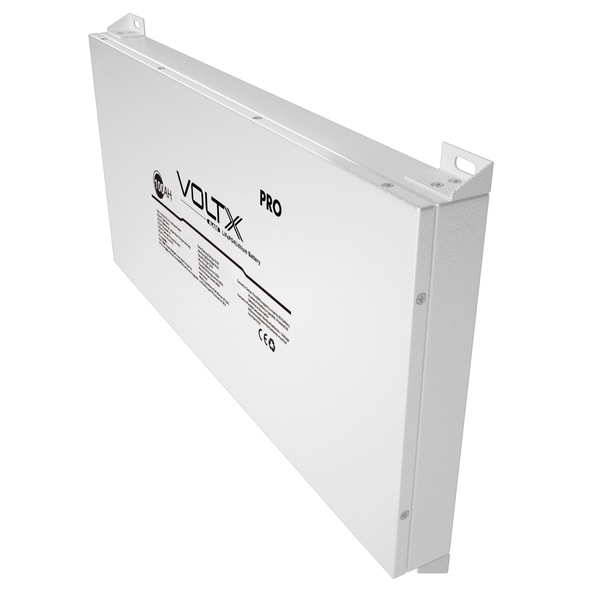

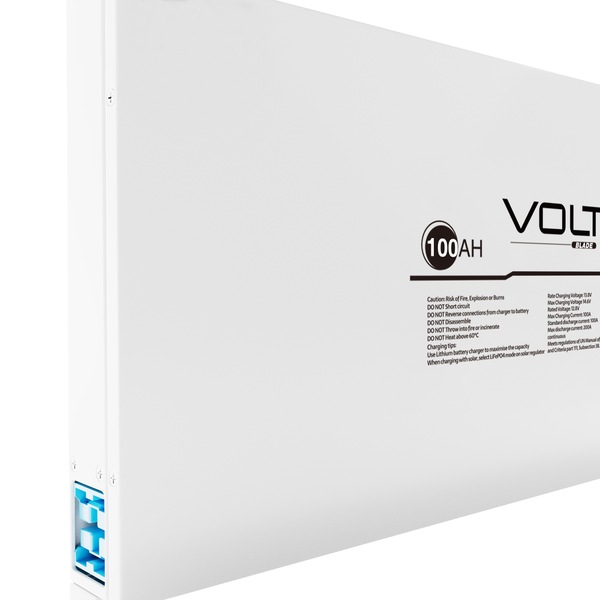

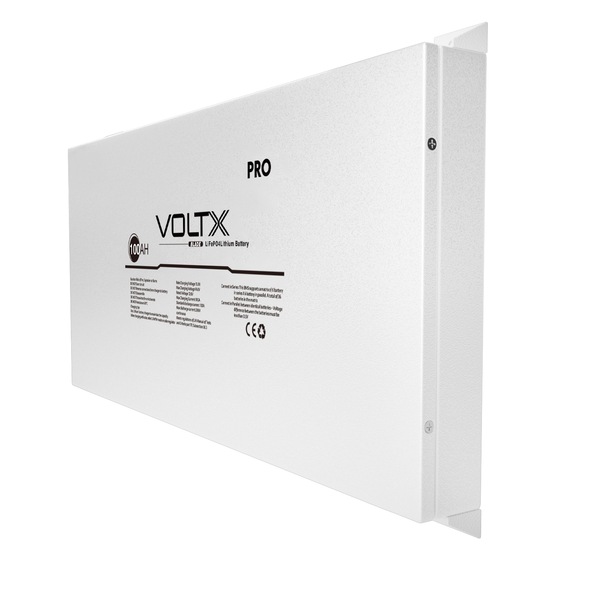

Product 1: VoltX 12V 100Ah Blade Lithium Battery

  • Specifications

    • Brand: VoltX
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Rated Energy: 1280Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 200A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 200A
    • Max. Discharge Current 5 sec: 600A

    • Charger: 14.6V 50A
    • Charging Voltage: 14.6V
    • Absorption Voltage: 14.4V
    • Float Voltage: 13.6V
    • Overcharge Protection: 14.4V
    • Overcharge Recovery: 14V
    • Overdischarge Protection: 10.8V
    • Overdischarge Recovery: 11.2V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Battery Cells: Prismatic
    • Cell Grouping: 4S1P
    • Parallel Connection: Max 6
    • Series Connection: Max 6
    • Mounting Hole: 4

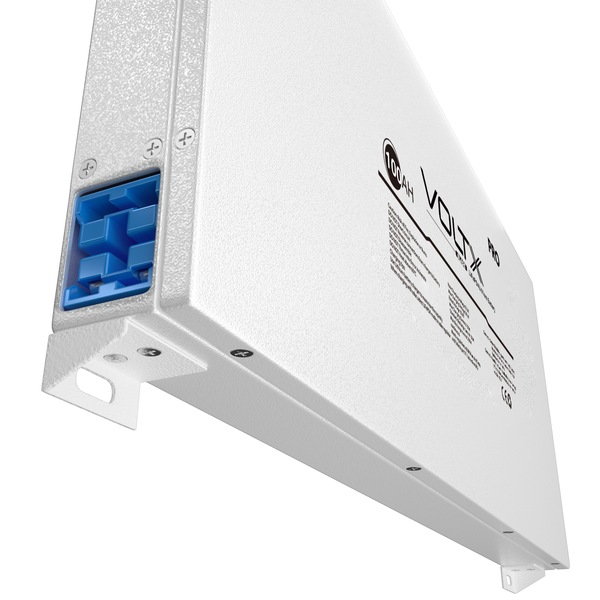

    • Anderson Plug: 175A
    • Case Material: SPCC
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Pro 100Ah
    • Certifications: IEC 62619
    • Warranty in Years: 5

  • Dimensions & Weight

    • Product Size: L600 x W270 x H65mm
    • Package Size: L680 x W355 x H135mm
    • Net Weight: 15.3kg
    • Gross Weight: 16.6kg

  • Package List

    • 1x VoltX Pro 100Ah Lithium Battery
    • 1x User Manual

    Product 2: Victron 30A AC to DC LiFePO4 Battery Charger Bluetooth

  • Specifications

    • Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14.4V) / HIGH (14.7V) / RECONDITION / LI-ION.
    • Input voltage range: 180 - 265 VAC
    • Charge current, normal mode: 15 / 20 / 30 A
    • Charge current, NIGHT or LOW: 7.5 / 10 / 15 A
    • Efficiency: 93 %
    • No load power consumption: 0.5 W
    • Frequency: 45 - 65 Hz
    • Number of outputs : 1
    • Charge voltage 'absorption' Normal: 14.4 V High: 14.7 V Li-ion: 14.2 V
    • Charge voltage 'float' Normal: 13.8 V High: 13.8 V Li-ion: 13.5 V
    • Charge voltage 'storage' Normal: 13.2 V High: 13.2 V Li-ion: 13.5 V
    • Charge algorithm: 6-stage adaptive
    • Can be used as power supply: Yes
    • Protection: Battery reverse polarity (fuse) Output short circuit Over temperature
    • Operating temp. range: -40 to +60 °C (full rated output up to 40 °C)
    • Humidity (non-condensing): Max 98 %
    • ENCLOSURE
    • Material & Colour: Aluminium (blue RAL 5012)
    • Battery connection: Screw terminals 16 ² / AWG6
    • 230 VAC connection: Cable of 1.5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
    • Protection category: IP22
    • Weight :1.3 kg
    • Dimensions (h x w x d): 235 x 108 x 65 mm
    • STANDARDS
    • Safety : EN 60335-1, EN 60335-2-29
    • Emission:EN 55014-1, EN 61000-6-3, EN 61000-3-2
    • Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
    • Automotive : ECE R10-5

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348087901

    Estimated Delivery Time Frame:3-8 business days
