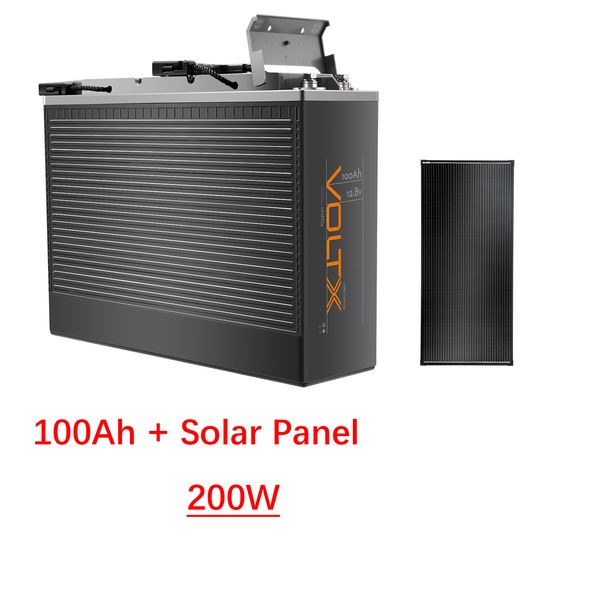

VoltX 12V 100Ah Slim Lithium Battery with 200W Fixed Solar Panel

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 1 items left!
$699

Collect 699 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

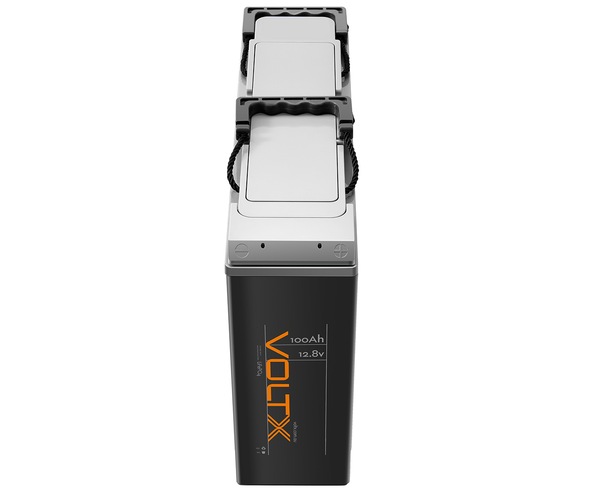

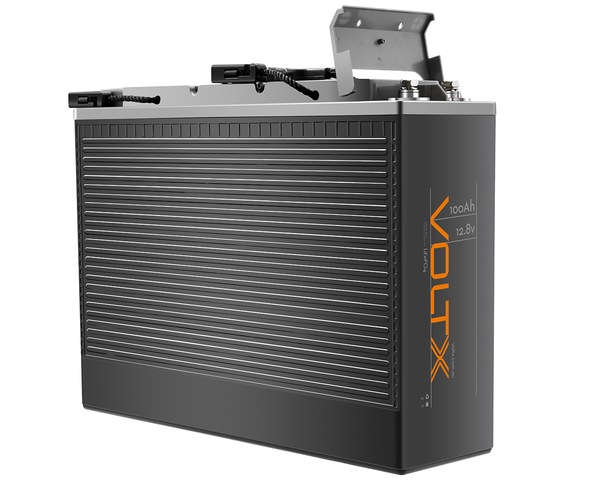

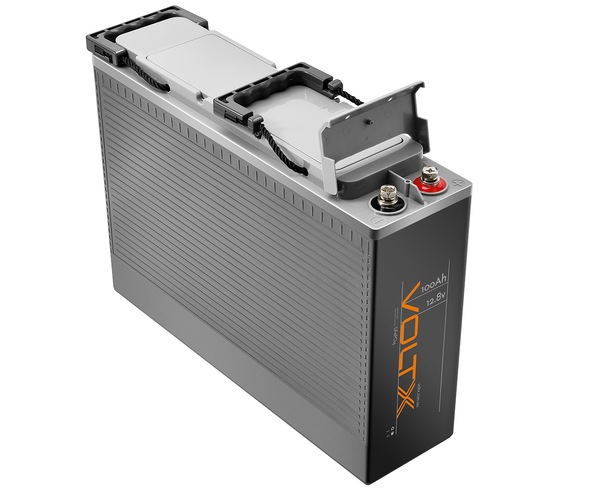

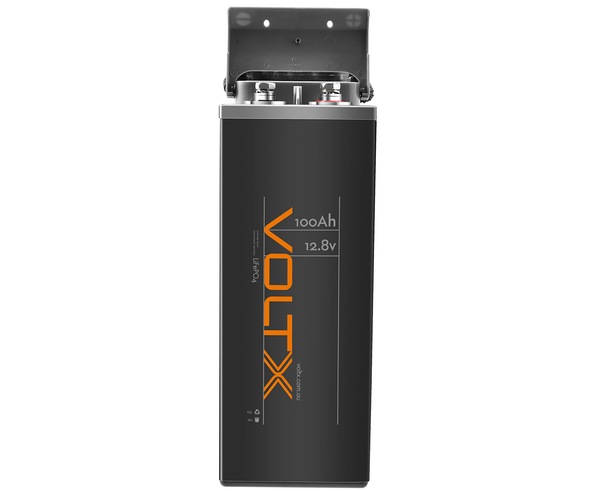

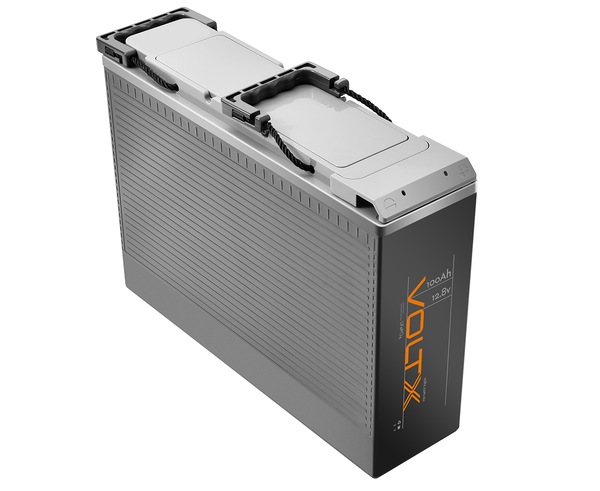

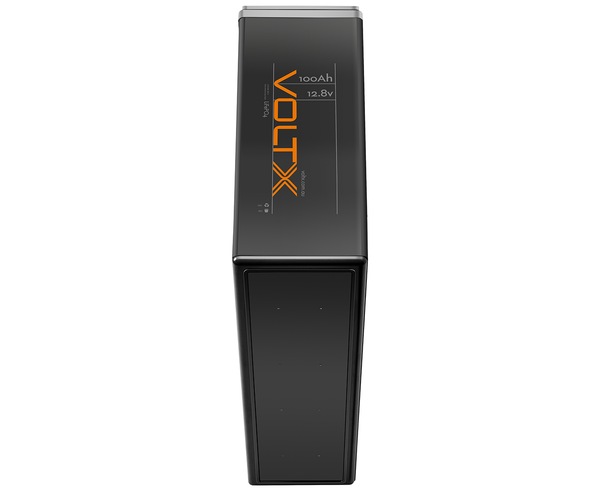

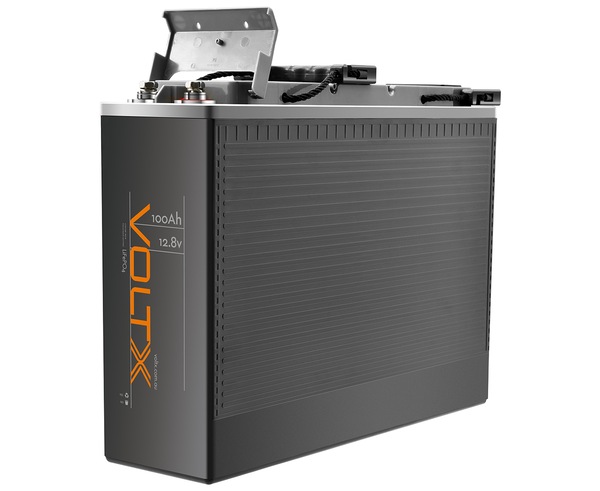

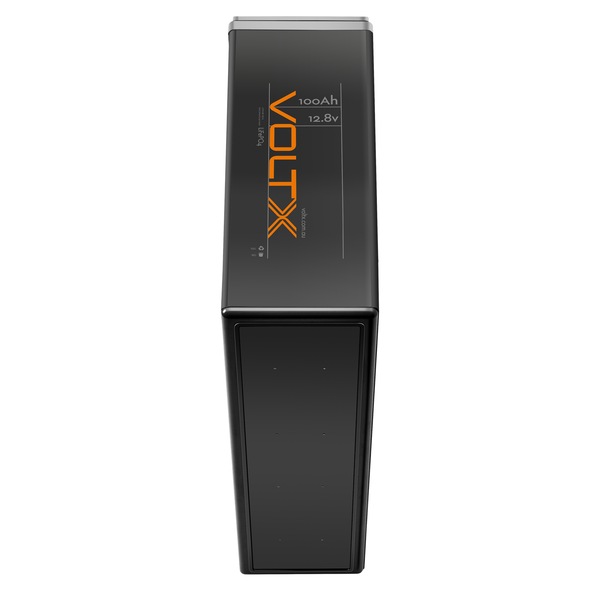

Product 1: VoltX 12V 100Ah Slim Lithium Battery

  • Specifications

    • Brand: VoltX
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Rated Energy: 1280Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 14.6V 50A
    • Charging Voltage: 14.2-14.6V
    • Absorption Voltage: 13.8V
    • Float Voltage: 13.5V
    • Overcharge Protection: 14.4V
    • Overcharge Recovery: 14V
    • Overdischarge Protection: 10.8V
    • Overdischarge Recovery: 11.2V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Battery Cells: Prismatic
    • Cell Grouping: 4S1P
    • Parallel Connection: Max 6
    • Series Connection: Max 6
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Slim 100Ah
    • Certifications: IEC 62619
    • Protection Class: IP65
    • Warranty in Years: 3

  • Dimensions & Weight

    • Product Size: L395 x W110 x H297mm
    • Package Size: L450 x W165x H358mm
    • Net Weight: 11kg
    • Gross Weight: 12.1kg

  • Package List

    • 1x VoltX 12V 100Ah Lithium Battery
    • 2x Terminal Bolts M8*16
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: VoltX 200W Fixed Solar Panel

  • Specifications

    • Brand: VoltX
    • Max Power: 200W
    • Max Power Voltage (Vmp): 18.74V
    • Max Power Current (lmp): 10.41A
    • Open-Circuit Voltage (Voc): 22.86V
    • Short-Circuit Current (Isc): 10.93A
    • Max System Voltage: 1000V
    • Max Series Fuse Rating: 15A
    • Module Efficiency STC (%): 19.66%
    • Cell Efficiency: 23%
    • Power Tolerance: 0-5W
    • Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
    • Working Temperature: -40°C-85°C
    • Temperature Coefficients of Pmax: -0.34%℃
    • Temperature Coefficients of Voc: -0.28%℃
    • Temperature Coefficients of lsc: +0.05%℃
    • Nominal Operating Cell Temperature (NOCT): 45±2°C
    • Type: Fixed
    • Solar Cell: Monocrystalline Grade A
    • Cell Tech: PERC
    • Panel Leads (Pair-AWG): 2.5mm²
    • Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector
    • Tie Down Points: Yes, 4 Points
    • Frame: Anodized Aluminium Alloy
    • IP Rating: IP65
    • Certifications: CE, ISO
    • Warranty: 5 Years

  • Dimensions & Weight

    • Product Dimensions: L1480xW670xH35mm
    • Package Dimensions: L1500xW690xH50mm
    • Net Weight: 11kg
    • Gross Weight: 11.9kg

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348088557

    Estimated Delivery Time Frame:3-8 business days
