VoltX 12V 100W Solar Panel ETFE + MC4 to Anderson Cable

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$299

Collect 299 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

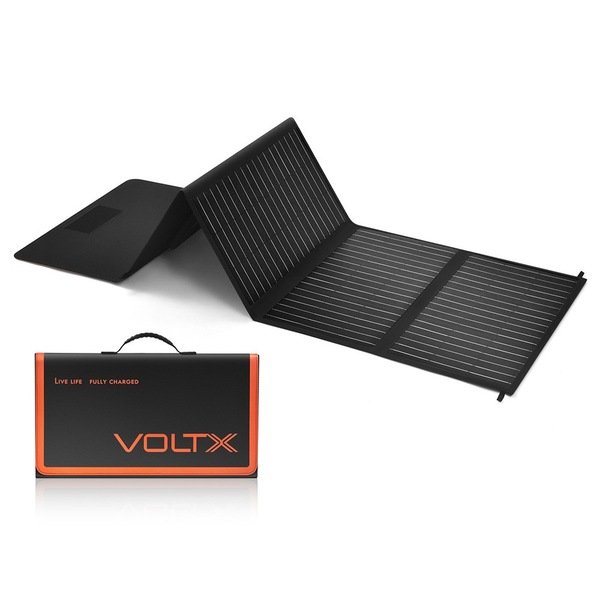

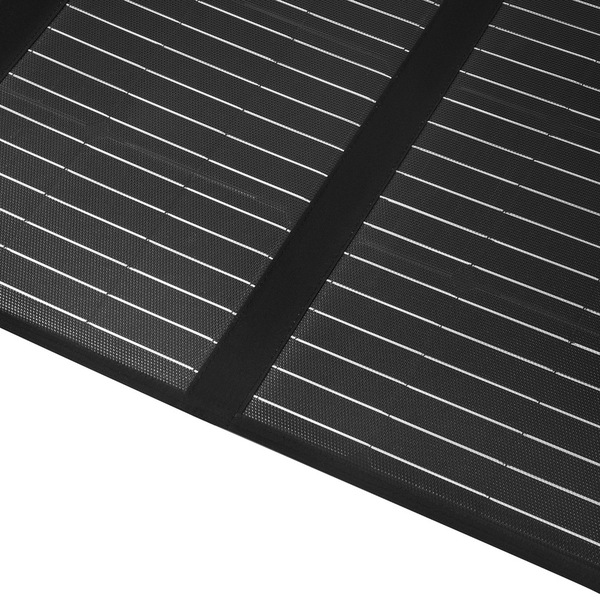

Product 1: VoltX 100W Solar Panel ETFE

  • Specifications

    • Brand: VoltX
    • Max Power: 100W
    • Max Power Voltage (Vmp): 18V
    • Max Power Current (lmp): 5.56A
    • Open-Circuit Voltage (Voc): 21.96V
    • Short-Circuit Current (Isc): 5.83A
    • Max System Voltage: 500V
    • Max Series Fuse Rating: 15A
    • Cell Efficiency: 23.5%
    • Power Tolerance: 0-3%
    • Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
    • Working Temperature: -20°C-65°C
    • Temperature Coefficients of Pmax: -0.34%℃
    • Temperature Coefficients of Voc: -0.265%℃
    • Temperature Coefficients of lsc: +0.05%℃
    • Nominal Operating Cell Temperature (NOCT): 45±2°C

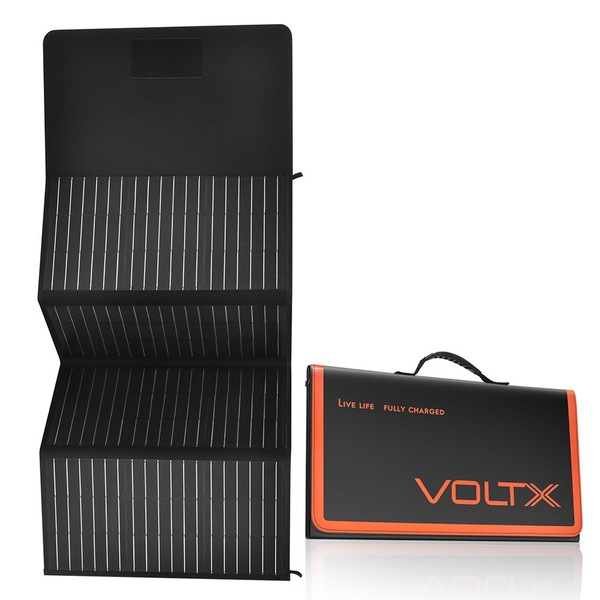

    • Type: Foldable
    • Solar Cell: Monocrystalline Grade A
    • Cell Tech: ETFE
    • Panel Leads (Pair-AWG): 2.5mm²
    • Solar Connectors: Junction Box + 1.5m Cable With MC4 Connector

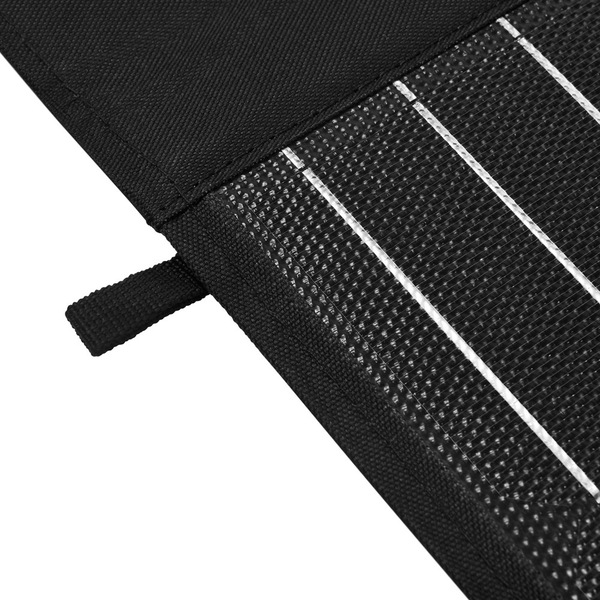

    • Tie Down Points: Yes, 2 Hanging Ropes
    • IP Rating: IP65
    • Certifications: CE, ISO
    • Warranty: 1 Year

  • Dimensions & Weight

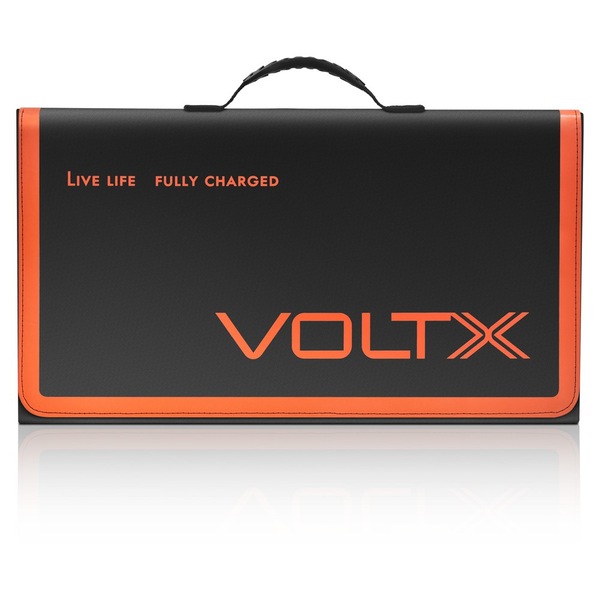

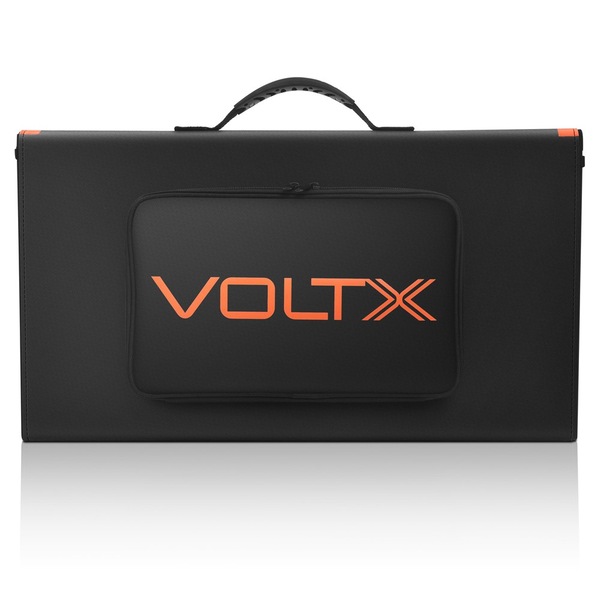

    • Folded Dimensions: L540xW310xH40mm

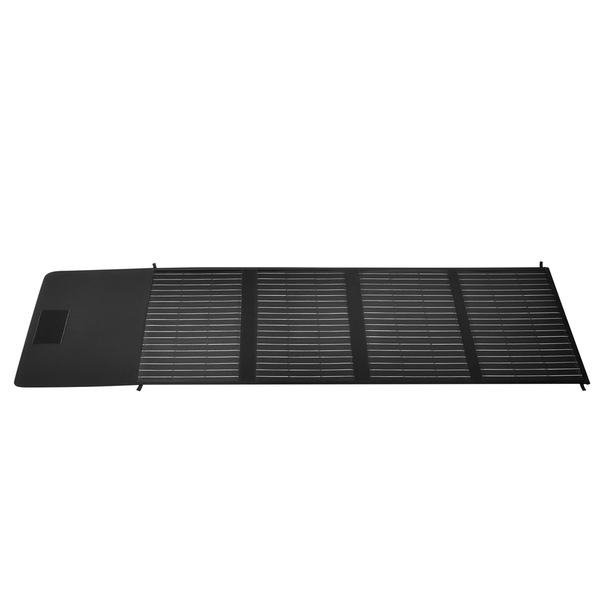

    • Open Dimensions: L1515xW540xH12mm
    • Package Dimensions: L560xW330xH90mm
    • Net Weight: 3.1kg
    • Gross Weight: 3.6kg

  • Package List

    • 1x VoltX 100W Foldable Solar Panel

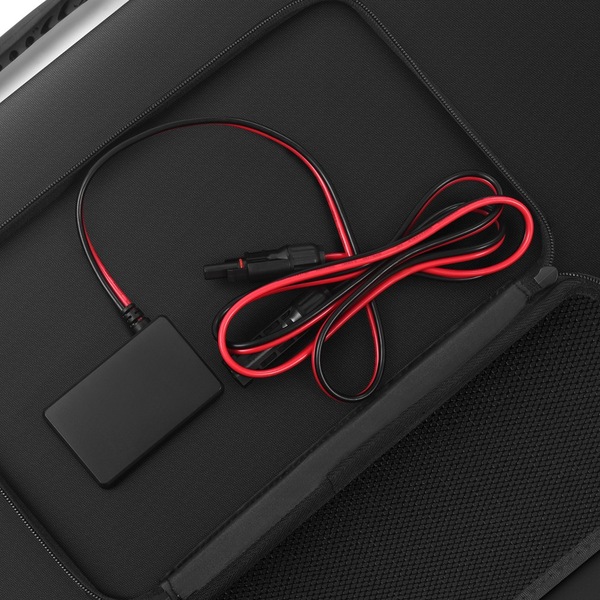

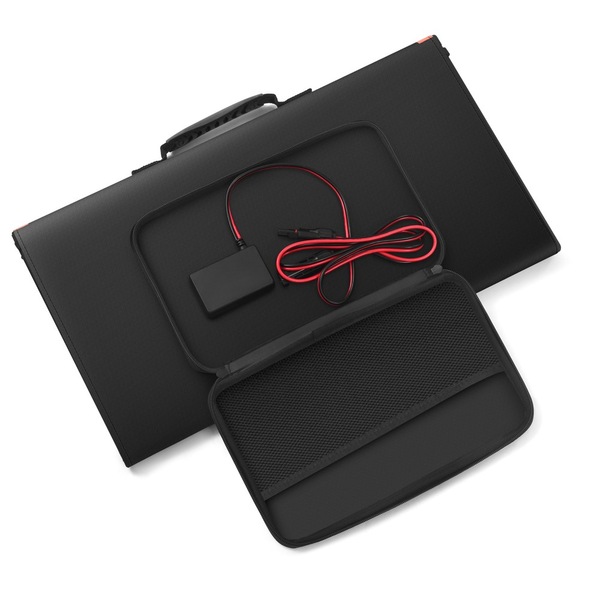

    • 1x Junction Box (Contain 2x USB Port & 1x USB-C Port)
    • 1x 1.5m Cable With MC4 Connector
    • 1x User Manual

    Product 2: MC4 to Anderson Cable

  • Specifications

    • Length(total length):20cm
    • Length(Wire length): 10cm
    • Wire Gauge: 14AWG
    • Max. Current: 16A
    • Rating Voltage: AC220V, DC24V
    • Temperature: -20°C~70°C
    • Weight (N.W): 0.05kg
    • Weight (G.W): 0.06kg
    • Warranty: 1 year
    • Certification: CE

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348065244

    Estimated Delivery Time Frame:3-8 business days
