VoltX 12V 160W Solar Panel Mono Fixed RV Camping Portable Battery Charger PERC Tech

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Shop More Products


Profile

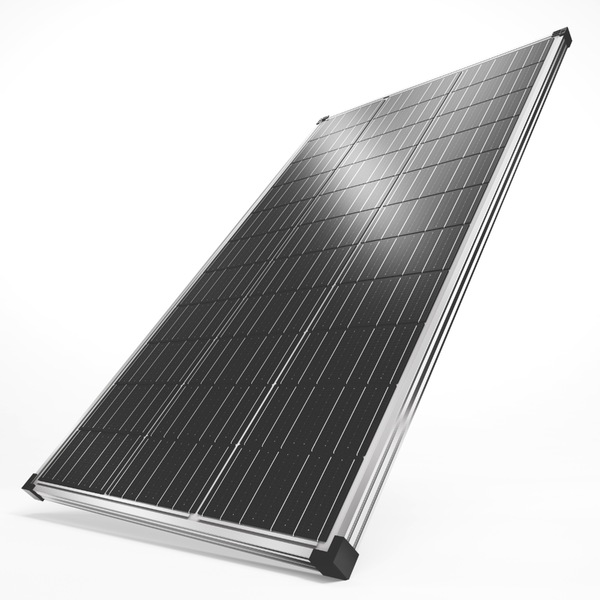

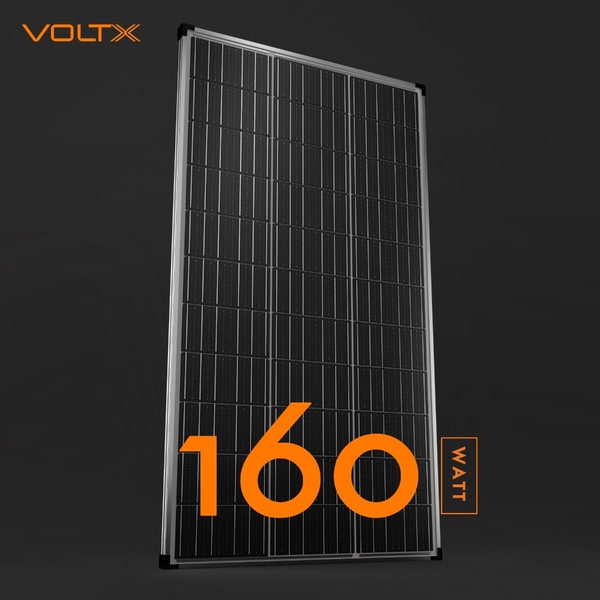

Introducing the VoltX 160W Fixed Solar Panel, designed to deliver top-notch performance and reliability. With grade-A monocrystalline silicon cells and PERC technology, this panel achieves an impressive 23.5% efficiency, ensuring optimal power generation even in low-light conditions. Boasting a maximum power output of 160W, it’s perfect for residential rooftops, commercial setups, RVs, boats, and camping. Lightweight at 8.5kg and compact with dimensions of 1220x680x30mm, it’s easy to transport and install. Experience stable, efficient, and versatile energy solutions with VoltX.

Features

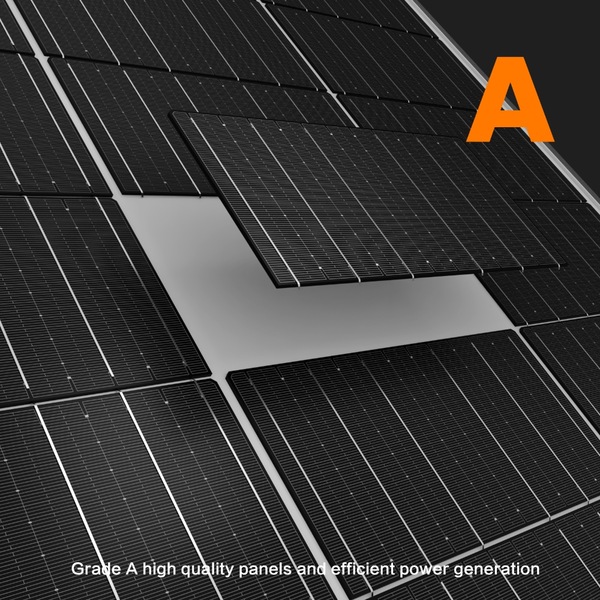

  • 【Superior Efficiency】Featuring grade-A monocrystalline silicon cells with 23.5% efficiency, VoltX 160W solar panel ensures rapid and reliable power generation. PERC technology enhances light absorption, maintaining high performance even in low-light conditions, making it perfect for your home or outdoor adventures.
  • 【Consistent Power Output】With a maximum power of 160W, voltage of 18V, and current of 8.88A, this solar panel provides a stable power supply for your devices. The open-circuit voltage of 21.6V and short-circuit current of 9.35A guarantee reliable performance, ensuring your devices stay charged and ready.
  • 【Durable Construction】 Built to withstand harsh environments, VoltX 160W solar panel operates effectively from -40°C to 85°C. Constructed with 3.2mm tempered glass and an anodized aluminum alloy frame, it boasts an IP65 rating for dust and water resistance. Backed by CE and ISO certifications, it's a mark of our commitment to quality, giving you peace of mind with every use.
  • 【Your Long-term Reliable Power】Ideal for home rooftops, commercial setups, campgrounds, RVs, and boats, this solar panel keeps you powered and connected. Designed for convenience, the panel includes four tie-down points for quick and secure setup. The 0.9m cable with MC4 connectors simplifies the wiring process, while its lightweight design (8.5kg) and compact dimensions (1220x680x30mm) make it easy to transport and install wherever you need reliable power.
  • 【Professional After-sales Service】We commit to shipping from our Sydney warehouse within 24 hours. VoltX 160W fixed solar panel not only comes with a 5-years warranty, but also offers professional technical support to provide you with personal service and solutions. We offer reliability not just in our products but in our commitment to you.

Specifications
  • Tech Specs

    • Brand: VoltX
    • Max Power: 160W
    • Max Power Voltage (Vmp): 18V
    • Max Power Current (lmp): 8.88A
    • Open-Circuit Voltage (Voc): 21.6V
    • Short-Circuit Current (Isc): 9.35A

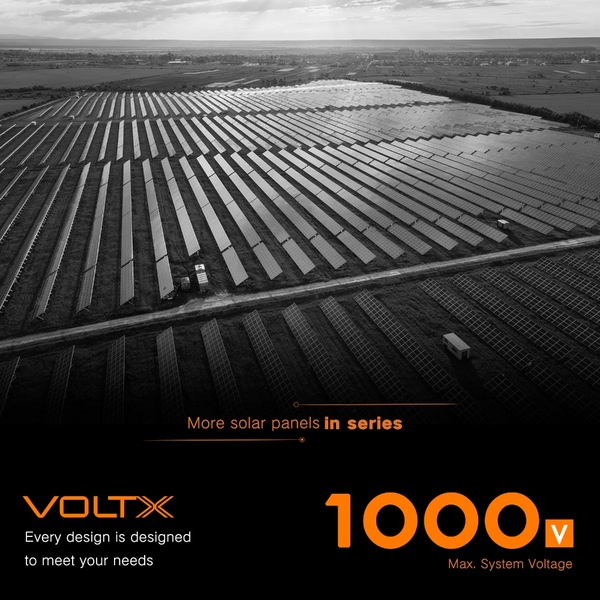

    • Max System Voltage: 1000V
    • Max Series Fuse Rating: 15A
    • Cell Efficiency: 23.5%
    • Power Tolerance: 0±3%
    • Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
    • Working Temperature: -40°C-85°C
    • Temperature Coefficients of Pmax: -0.34%℃
    • Temperature Coefficients of Voc: -0.265%℃
    • Temperature Coefficients of lsc: +0.05%℃
    • Nominal Operating Cell Temperature (NOCT): 45±2°C
    • Type: Fixed
    • Solar Cell: Monocrystalline Grade A
    • Cell Material: 3.2mm Tempered Glass
    • Cell Tech: PERC
    • Panel Leads (Pair-AWG): 2.5mm²
    • Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector
    • Tie Down Points: Yes, 4 Points

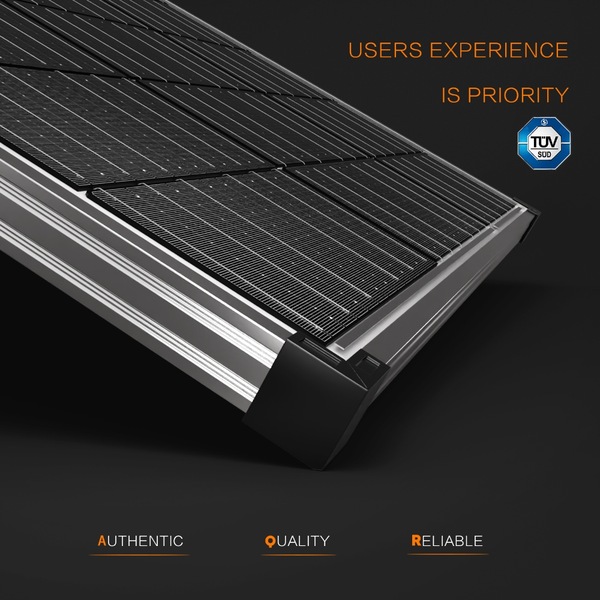

    • Frame: Anodized Aluminium Alloy
    • IP Rating: IP65
    • Certifications: CE, ISO
    • Warranty: 5 Years

  • Dimensions & Weight

    • Product Dimensions: L1220xW680xH30mm
    • Package Dimensions: L1240xW700xH45mm
    • Net Weight: 8.5kg
    • Gross Weight: 9.5kg

  • Package List

    • 1x VoltX 160W Fixed Solar Panel
    • 1x 0.9m Cable With MC4 Connector
    • 1x User Manual

Guideline

Please note: Plastic corner protectors are one of the accessories specially designed to protect solar panel, but they are not part of the solar panel. Therefore, when installing, maintaining or replacing solar panel, please recycle or dispose of discarded plastic corner protectors properly to reduce the impact on the environment.

Seamless Power for Your Life - VoltX 160W Fixed Solar Panel
Discover the freedom and convenience of reliable power with the VoltX 160W Fixed Solar Panel. Perfect for enhancing your daily life, it provides stable energy for your home, farm, or business, ensuring your devices are always powered. Take it on your RV trips, boating adventures, or camping excursions, and stay connected wherever you go. Lightweight and easy to install, it fits seamlessly into any setup, transforming how you experience energy. Make uninterrupted power a part of your lifestyle with VoltX, and never worry about running out of energy again.
