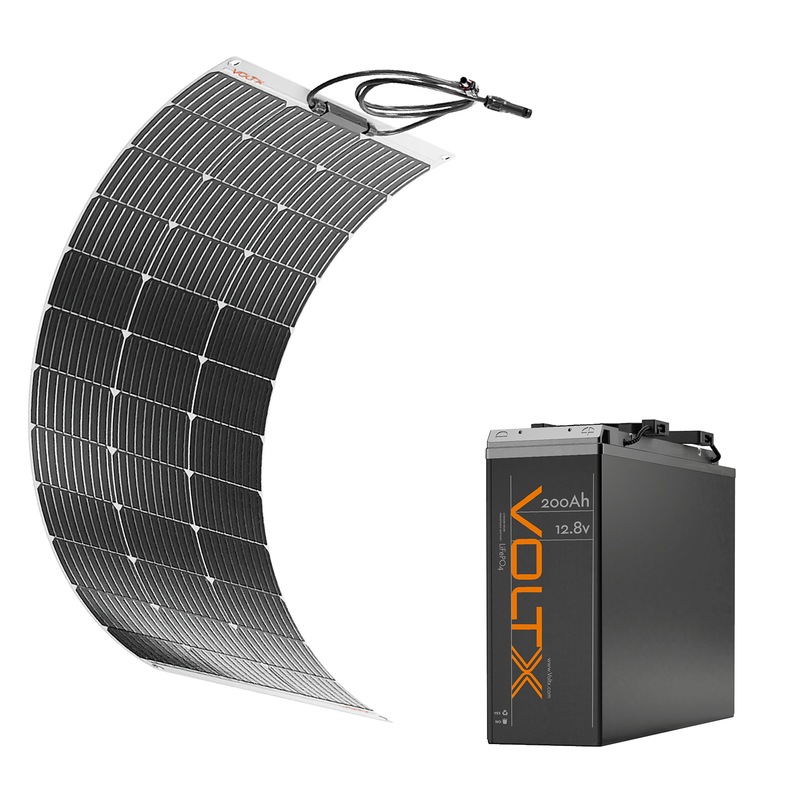

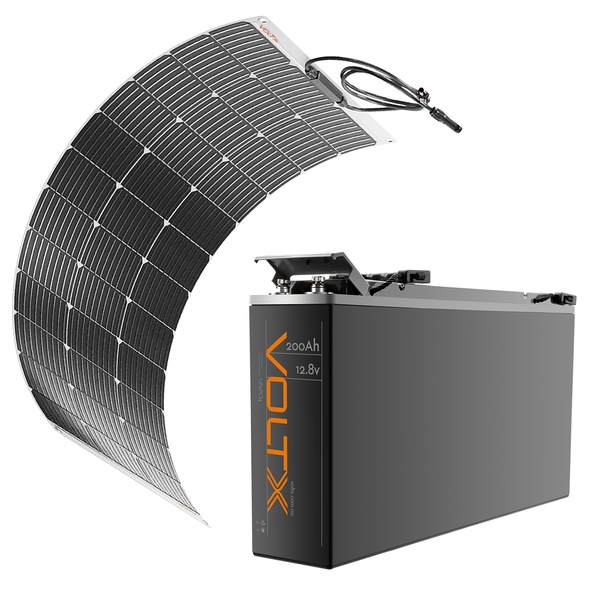

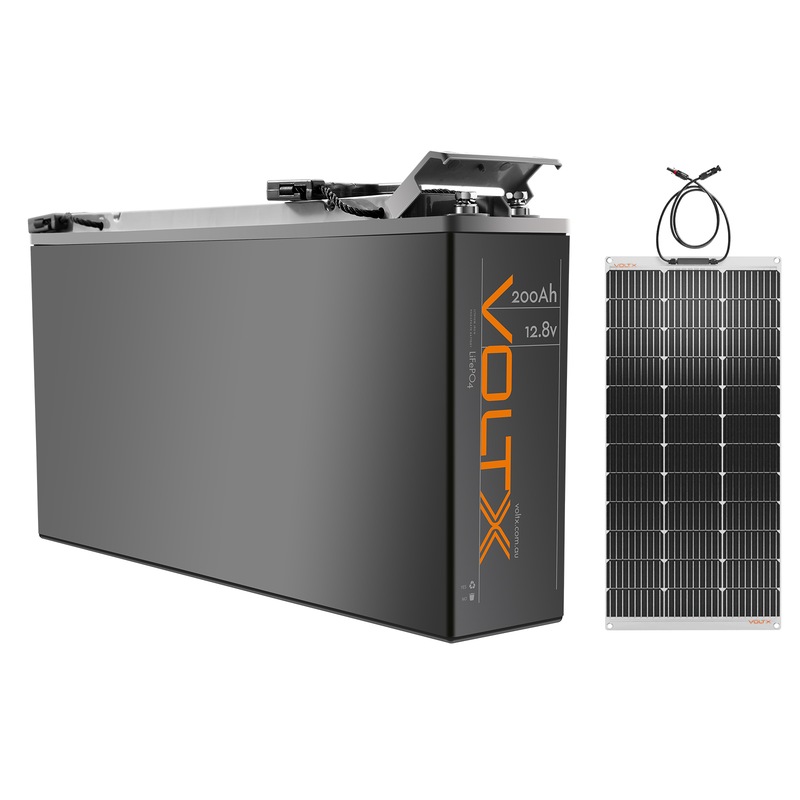

VoltX 200Ah Slim 12V Lithium Battey + Solar Panel 100W Flexible

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$1419

Collect 1419 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

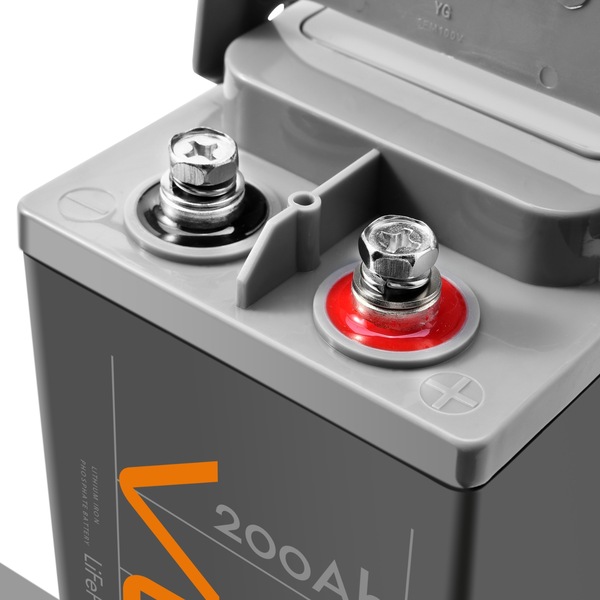

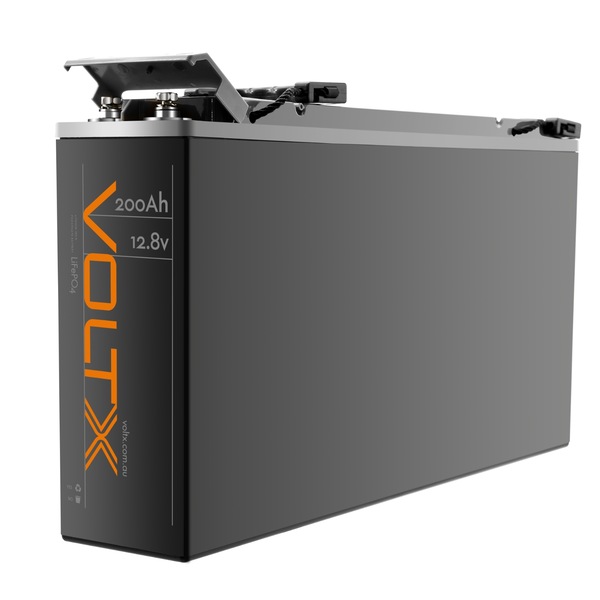

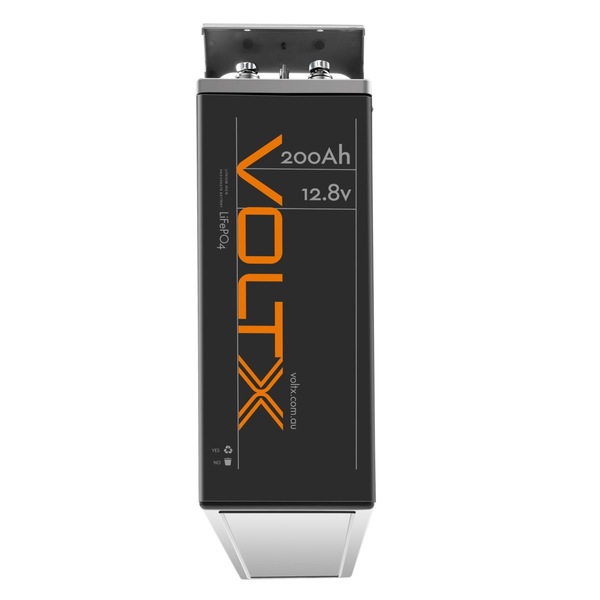

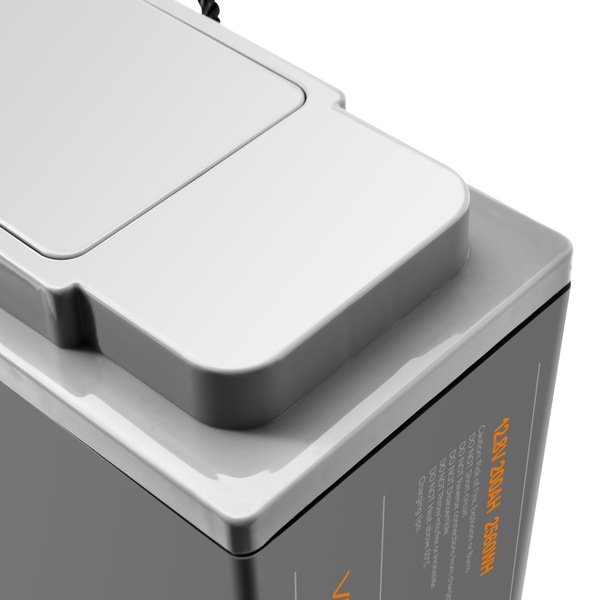

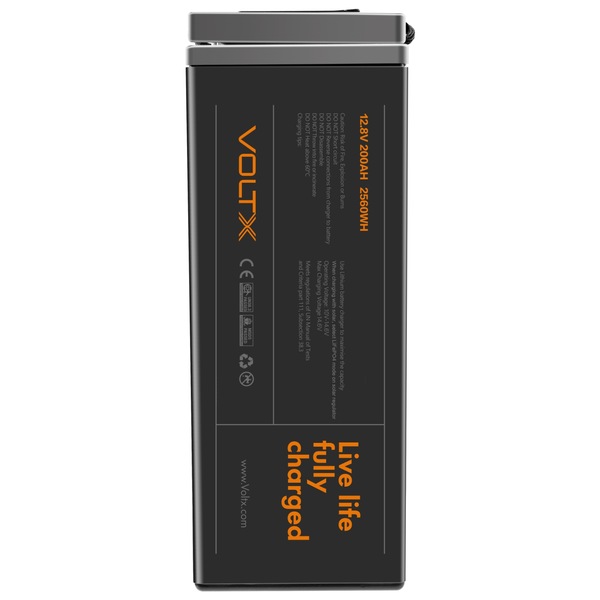

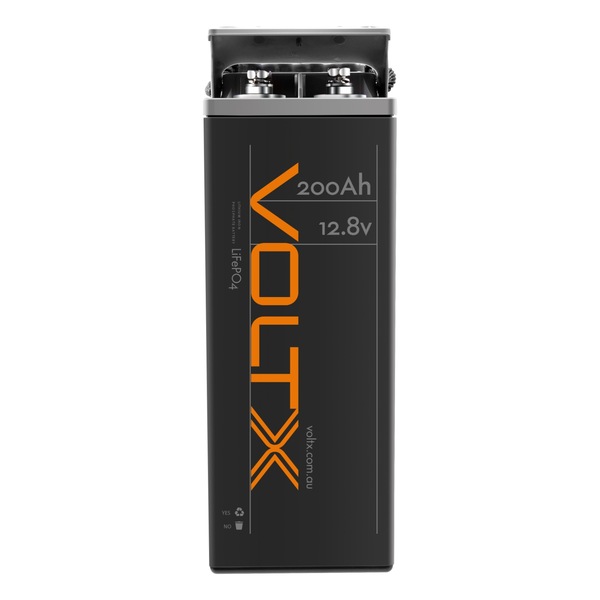

Product 1: VoltX 12V 200Ah Slim Lithium Battery

Specifications
  • Quick Look

    • Capacity: 12.8V 200Ah
    • Rated Energy: 2560Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 150A
    • Product Size: L552 x W110 x H290mm

  • Tech Specs

    • Brand: VoltX
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 200Ah
    • Rated Energy: 2560Wh
    • Approx Life Cycles: 4000
    • Battery Manage System: 150A
    • Standard Charging Current: 75A
    • Max. Charging Current: 150A
    • Standard Discharge Current: 150A
    • Max. Continuous Discharge Current: 150A
    • Max. Discharge Current 5 sec: 300A

    • Charger: 14.4V 75A
    • Charging Voltage: 14.2-14.6V
    • Absorption Voltage: 14.4V
    • Float Voltage: 13.8V
    • Overcharge Protection: 14.6V
    • Overcharge Recovery: 14.2V
    • Overdischarge Protection: 10V
    • Overdischarge Recovery: 10.6V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Battery Cells: Prismatic
    • Cell Grouping: 4S2P
    • Parallel Connection: Max 6
    • Series Connection: Max 6
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Slim 200Ah
    • Certifications: IEC,FCC,UN38.3,CE
    • Protection Class: IP65
    • Warranty in Years: 5

  • Dimensions & Weight

    • Product Size: L552 x W110 x H290mm
    • Package Size: L615 x W175x H333mm
    • Net Weight: 20.5kg
    • Gross Weight: 22kg

  • Package List

    • 1x VoltX Slim 200Ah Lithium Battery
    • 2x Terminal Bolts M8*16
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: VoltX 100W Solar Panel Flexible

  • Specifications

    • Brand: VoltX
    • Max Power: 100W
    • Max Power Voltage (Vmp): 20V
    • Max Power Current (lmp): 5A
    • Open-Circuit Voltage (Voc): 24V
    • Short-Circuit Current (Isc): 5.32A
    • Max System Voltage: 1000V
    • Max Series Fuse Rating: 15A
    • Cell Efficiency: 22.5%
    • Power Tolerance: 0-3W
    • Module Efficiency STC (%): 18.2%
    • Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
    • Working Temperature: -20°C-60°C
    • Temperature Coefficients of Pmax: TkPower: -0.38%/K
    • Temperature Coefficients of Voc: TkVoltage: -0.36 %/K
    • Temperature Coefficients of lsc: TkCurrent: +0.07%/K
    • Nominal Operating Cell Temperature (NOCT): 45±2°C
    • Type: Flexible
    • Solar Cell: Mono-Si, Class A
    • Cell Material: CPC
    • Cell Tech: PERC
    • Panel Leads (Pair-AWG): 4mm²
    • Solar Connectors: 0.9m Cable With MC4 Connector
    • Tie Down Points: Yes, 4 Points
    • IP Rating: IP67
    • Certifications: CE, ISO
    • Warranty: 1 Years

  • Dimensions & Weight

    • Product Dimensions: L1085xW512xH2mm
    • Package Dimensions: L1110xW560xH37mm
    • Net Weight: 1.5kg
    • Gross Weight: 2.6kg

  • Package List

    • 1x VoltX 100W Flexible Solar Panel
    • 1x 0.9m Cable With MC4 Connector

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

GTIN: 9355348071412

Estimated Delivery Time Frame:3-8 business days
