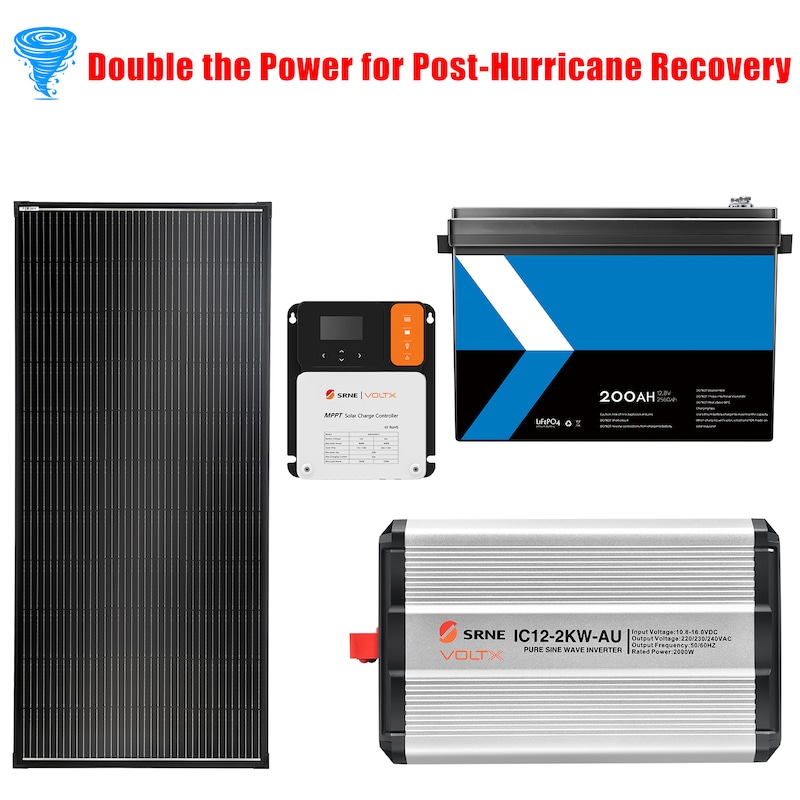

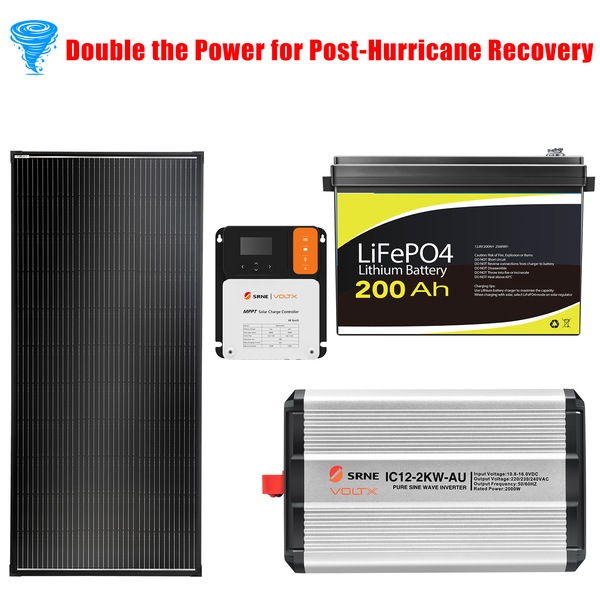

VoltX 200W Solar Panel + 12V 200Ah Lithium Battery + 2000W Inverter + 30A Solar Charge Controller

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$1999

Collect 1999 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

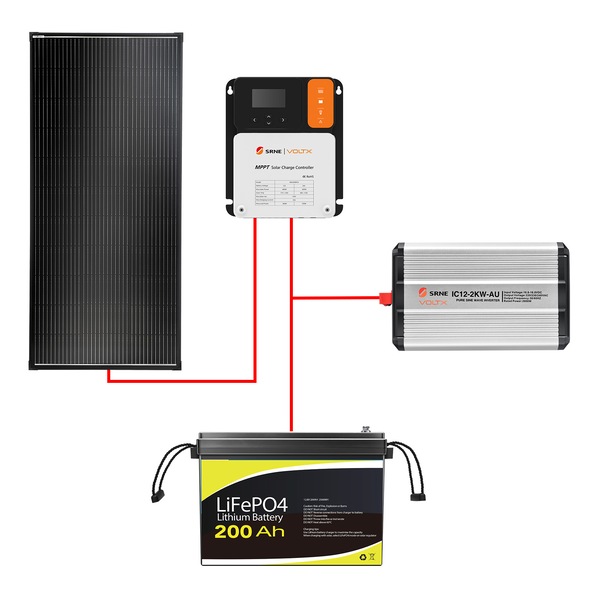

Fear No Storm, Enjoy a Comfortable Life - 200W Solar Panel + 200Ah LiFePO4 Battery + MPPT Controller, Smart Energy Storage!

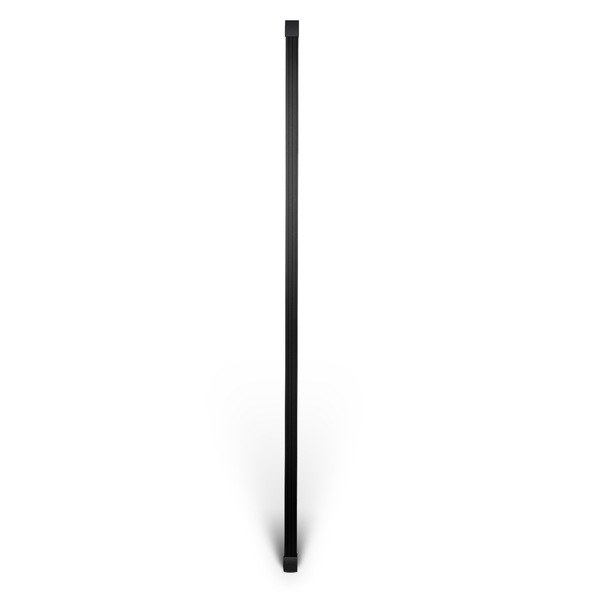

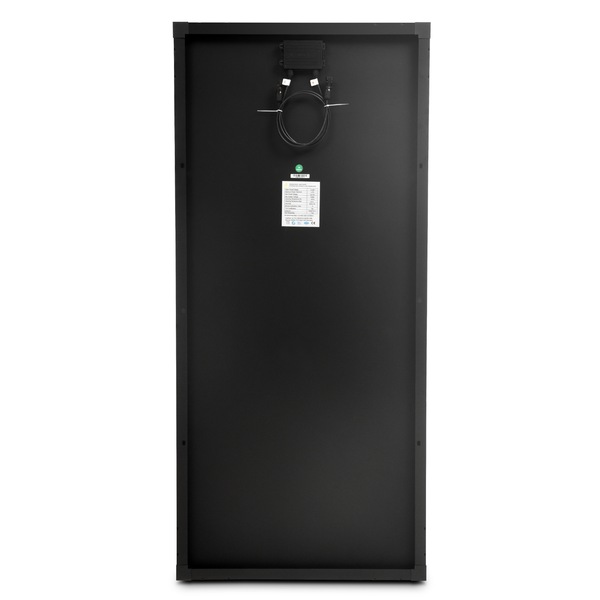

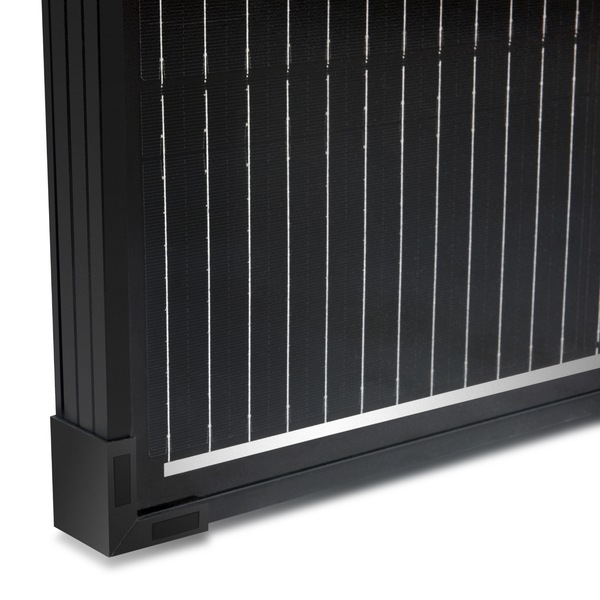

MODEL1: 1* 12V 200W Solar Panel
Open-Circuit Voltage (Voc): 22.86V
Maximum Power Voltage (Vmp): 18.74V
Module Efficiency STC (%): 19.66%
Maximum System Voltage: 1000V
Power Tolerance: 0-5W
Operating Temperature Min: -40°C
Operating Temperature Max: 85°C
Temperature Coefficients of Pmax: -0.34%°C
Temperature Coefficients of Voc: -0.28%°C
Temperature Coefficients of lsc: +0.05%°C
Nominal Operating Cell Temperature (NOCT): 45±2°C
Cell: Mono grade A
Cell Tech: PERC
Module Application Class: A
Cell Efficiency: ≥23%
IP level: IP65
N.W(KG): 11KG
G.W(KG): 11.9KG
Certifications: CE/ISO
Warranty: 5 years
Solar Panel Size(mm): 1480*670*35mm
Solar Panel Box Size (mm): 1500*690*50mm

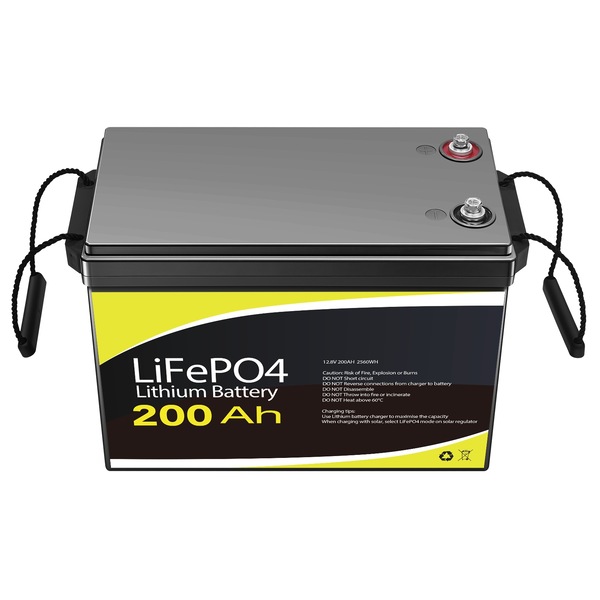

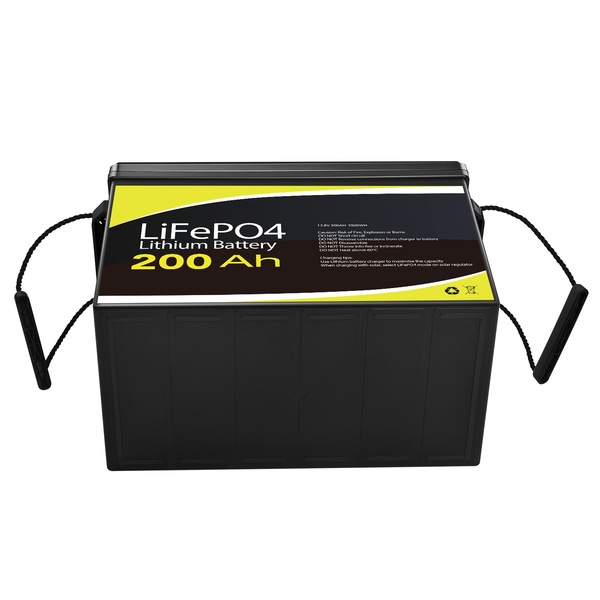

MODEL2: 1* 12V 200Ah Lithium Battery
Rated Voltage: 12.8V
Rated Capacity: 200Ah
Rated Energy: 2560Wh
Maximum Charging Current: 100A
Maximum Discharging Current: 100A
Discharge Cut-off Voltage: 10V
Charging Voltage: 13.6~13.8V
Internal Resistance Fully Charged@ 25°C: ≤5mΩ
Thermal Management: Nature cooling
Operating Humidity: 60±25%R.H.
Operating Temperature: Charging 0~50°C; Discharging -25°C~65°C
Total Weight(kg): 18.5kg
Dimensions: L: 345x W: 190x H:245mm
Warranty: 3 years

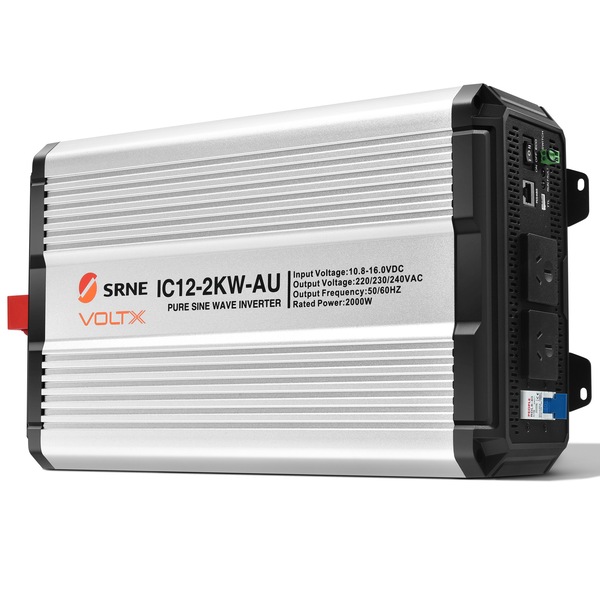

MODEL3: 1* 12V 2000W Solar Power Inverter
Rated output power:2000W
Rated output power VA:2000VA
Withstand instantaneous impact power:4000W
Rated output voltage:220VAC/230VAC/240VAC(±3%)
Output frequency:50/60HZ(±0.2%)
Output wave:Pure sine wave
Output harmonic component: THDV < 3% (pure resistance load)
Load power factor:0.2-1 (load power ≤ output continuous power)
Rated input voltage: 12VDC
Input voltage range:10.8~16.0VDC
Rated output efficiency: >89.0%
Maximum output efficiency:> 92% (30% overload)
Standby current:<0.24A
No-load current:<1.0A
USB interface:Dual USB output, 5VDC/2A
ON/OFF/ECO mode:ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
ECO starting power:<30W
ECO interval time:1min
TTL interface:Non-isolated TTL communication, power supply 12.5V/200mA
Indicator:Green - normal operation; Red - fault
External switch contact interface:Switch on or off by control equipment such as external relay and mechanical switch
Protection function:Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
Operating ambient temperature:-20°C~60°C
Storage ambient temperature:-35°C~80°C
Relative humidity:≤95%
Protection grade:IP20
Heat-dissipating method:Natural heat dissipation + intelligent air cooling
Noise:≤60dB
Net weight:6.5kg
Warranty : 3 Years
Product dimension:409*249*120mm
Installation dimension:374*141*Φ5mm

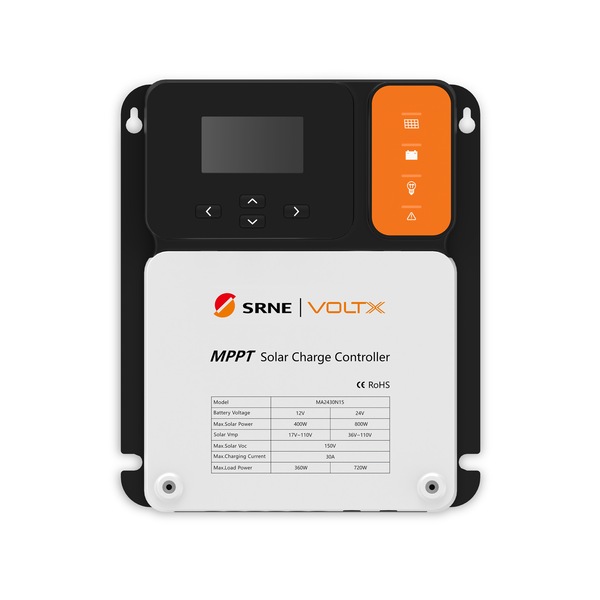

MODEL4: 1* 12V/24V 30A MPPT Solar Charge Controller
ELECTRICAL PARAMETERS
Static power consumption: ≤30mA
Battery Type: USE/FLD/GEL/LI/SLD(Default)
System voltage: 12V/24V
Battery's operating voltage range: 8V-32V
Rated charging current: 30A
Maximum PV Input Current: 27A
Maximum solar panel power: 400W/12V; 800W/24V
Maximum PV open-circuit voltage: 150V
MPPT operating voltage point range: (Battery Voltage +2)~110V
MPPT tracking efficiency: >99%
Charging conversion efficiency: 85%-98% (10%-100% of rated power)
Rated load current: 30A
Load operating mode: Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened.
TTL communication: Baud Rate 9600kps
RS485 communication: One isolated RS485 communication port, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable.
Bluetooth communication: Built-in
CAN communication: RV-C Protocol
Historical data: Can store historical data of the past 300 days
Protection function: PV Overvoltage Protection, PV Reverse Connection Protection, PV Short-Circuit Protection, Nighttime Reverse Charge Protection, Input Limited Power Protection, Overtemperature Protection, Load Short-Circuit Protection, Load Overload Protection, Battery Supervoltage/Over-discharge Protection, Battery Reverse Connection Protection and Battery Terminal Short-Circuit Protection.
Grounding type: Co-negative design and negative grounding
Cooling mode: Natural Cooling
Parallel connection for charging: No
Charging voltage line loss compensation: No
Support full settings: Yes
Constant voltage output setting: Yes
Charging temperature compensation of lead-acid battery: Yes
Temperature protection: Yes
Overload/short-circuit protection: Yes
Load pre-start: Yes

ENVIRONMENTAL DATA
Protection grade: IP32
Operating ambient temperature range: -35°C~ 65°C (no derating within 45°C if well ventilated)

MECHANICAL SPECIFICATIONS
Dimension: 260*216*83.2mm
Mounting hole spacing: 200 mm
Weight: 2.3kg
Fixed hole position: Φ10mm

GTIN: 9355348086966
