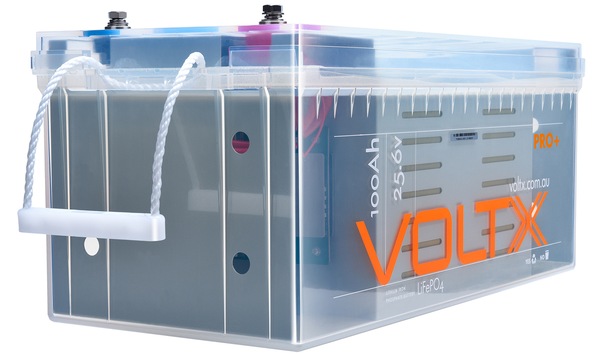

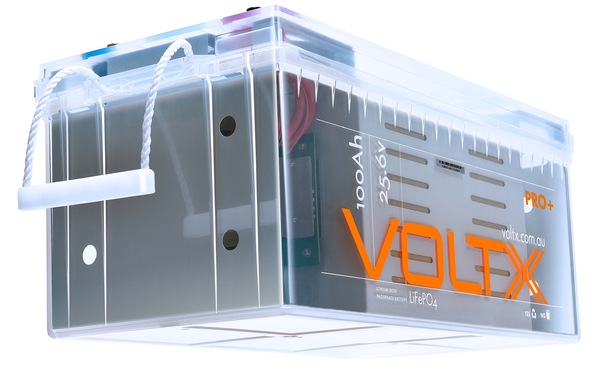

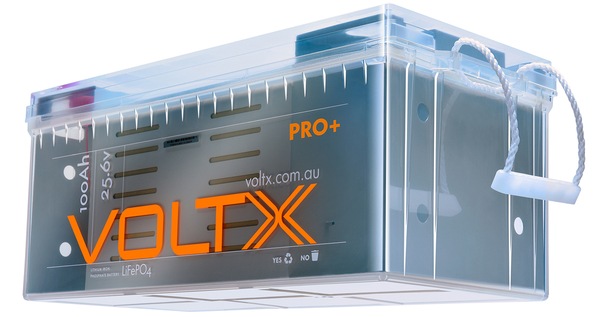

Premium Transparent VoltX 24V 100Ah Lithium Battery LiFePO4 RV Camping

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Shop More Products
24V 100Ah Lithium Battery - Can Replace 2x 12v Lithium Batteries in Series

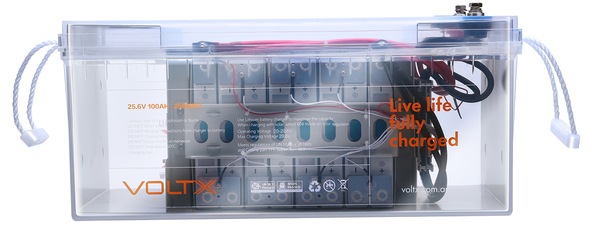

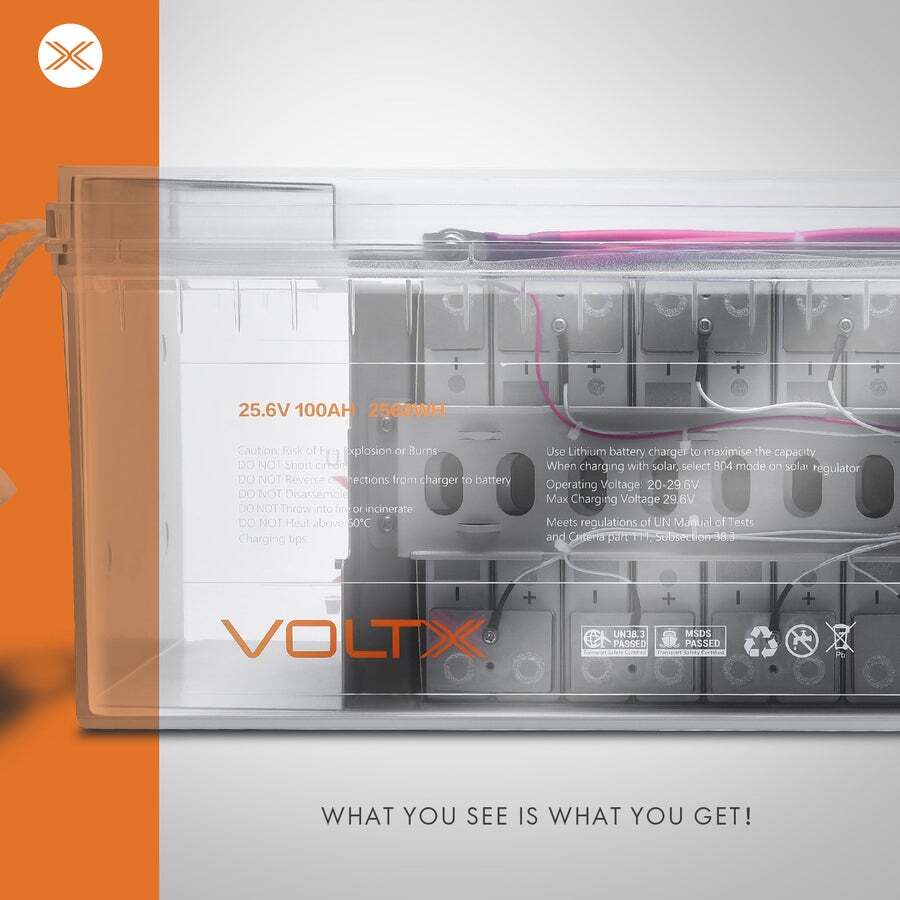

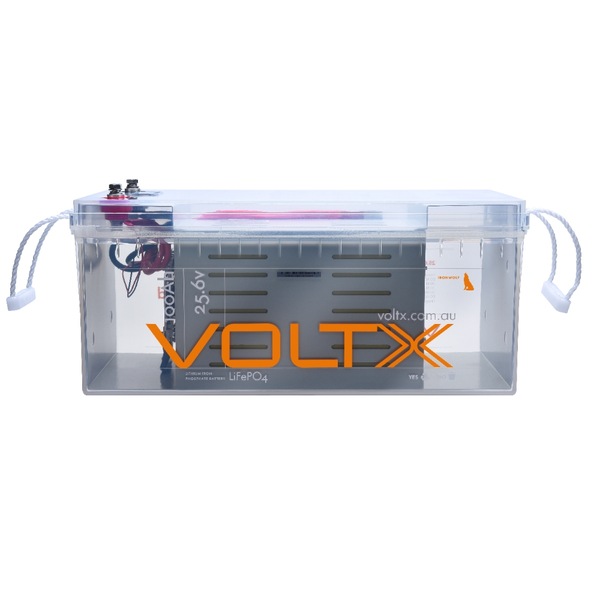

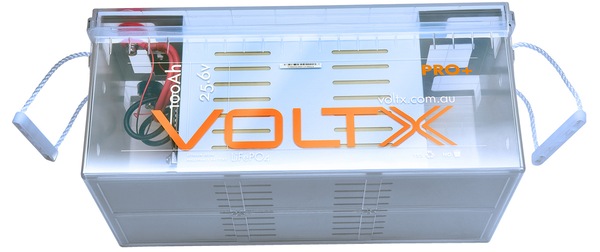

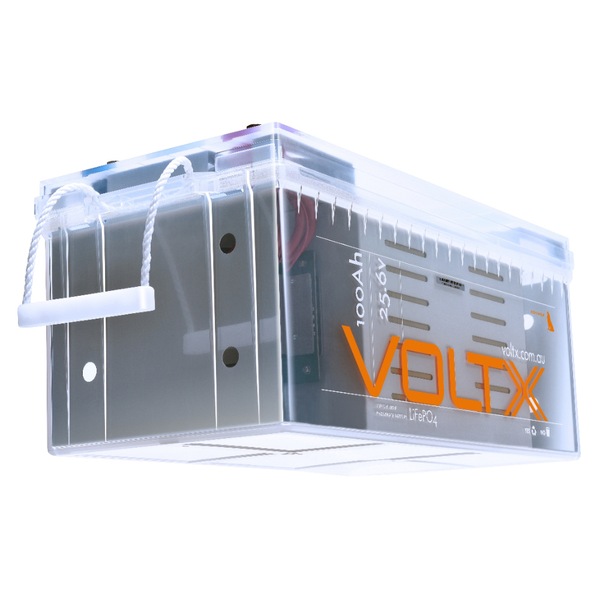

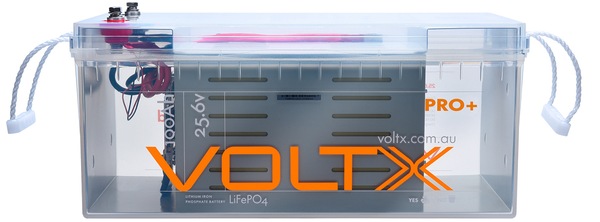

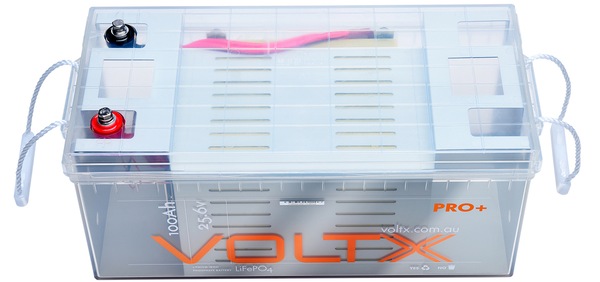

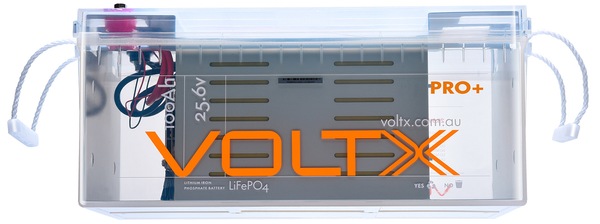

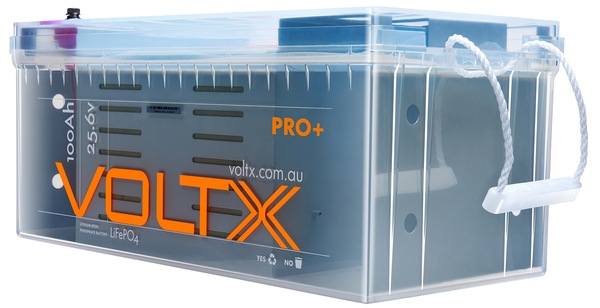

Unique Case Designed - Clear Battery Structure Layout
VoltX Brand
When you're going camping, a VoltX LiFePO4 battery is capable of providing all your energy needs. Coupled with its ability to recharge with a solar panel set up, it can power all your devices and other electrical equipment. VoltX batteries have been selected because of their excellent capabilities, their long life, and durability. Their high performance has quickly made them an essential component for any camping and caravanning trip.

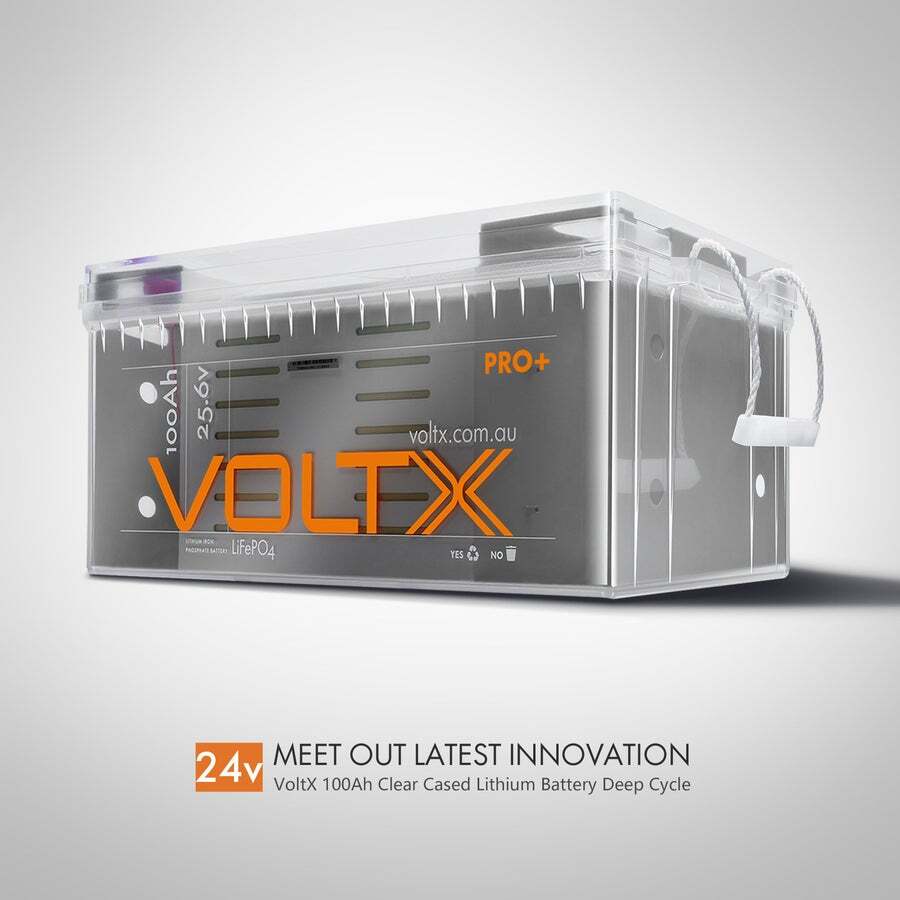

Introduce VoltX NEW 24V Lithium battery for you! You don't always have to haul two 12v lithium batteries and connect them in series for higher power output. VoltX 24V 100Ah battery inbuilt prismatic cells, with better performance, longer life span, it's easy to store in a car or caravan on your next adventure. The internal Battery Management System monitors and optimises each cell within the battery during normal operation, protecting it from over-charge, over-discharge, overheating and short-circuiting.

All our battery packs are comprised of prismatic cells & are backed with LiFePO4's signature built-in BMS. They are also tested to deliver 100% real capacity and are suitable for 6 parallel and 3 series.

VoltX test and ensure you get 100% real capacity 100Ah.

Key Features:
  • Heavy duty clear case

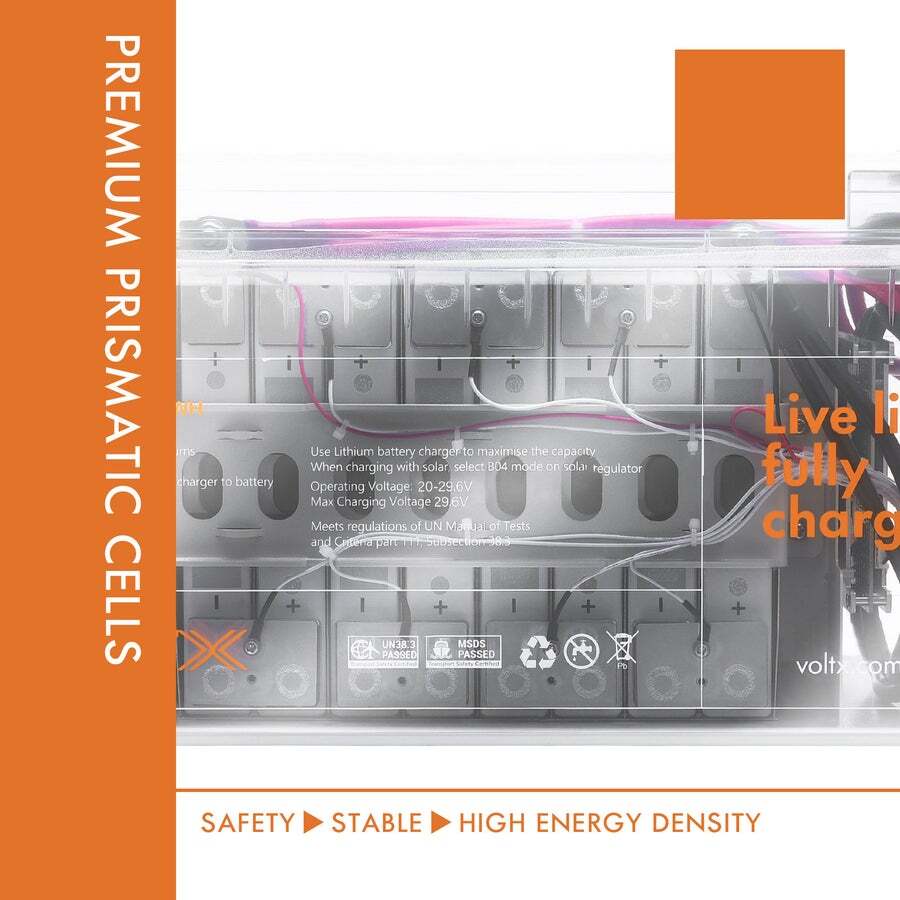

  • Prismatic battery cells
  • Approx. 3000 Life Cycles

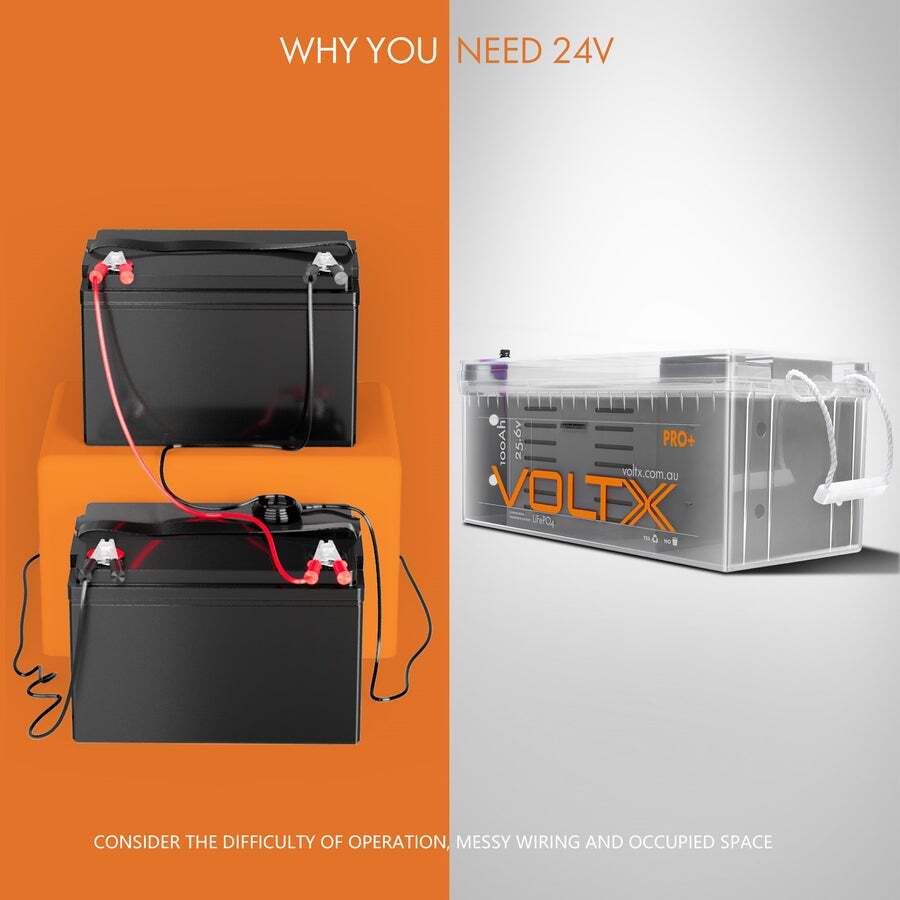

  • Can replace 2x 12v lithium batteries in series

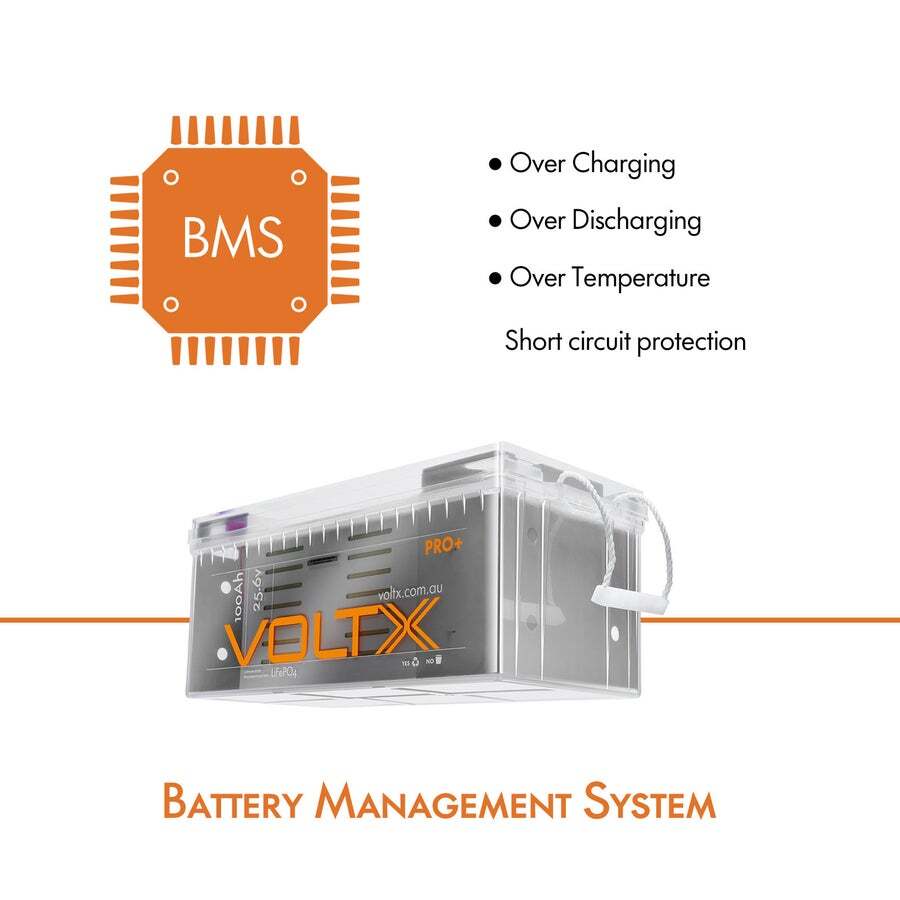

  • Built in battery management system for safety protection
  • Battery management system enclosed, no extra wiring needed
  • Built with LiFePO4 battery cells that are engineered to deliver superior performance and longevity
  • Maintenance-free, no leaks
  • Perfect replacement or upgrade for a traditional lead-acid battery

  • Specifications:
  • Brand: VoltX
  • Nominal Voltage: 25.6V
  • Nominal Capacity: 100Ah
  • Charging Voltage: 27.2-27.6V
  • Float Voltage: 27.2V
  • Absorption Voltage: 28.8V
  • Rated Energy: 2560Wh
  • Charge Method: CC/CV
  • Charger: 27.2-27.6V
  • Recommended Charging Current: 50A
  • Standard Charge Current: 100A
  • Max. Charging Current: 100A
  • Standard Discharge Current: 100A
  • Max. Continuous Discharge Current: 150A
  • Max. Discharge Current 5 sec: 450A
  • Approx Life Cycles: 3000
  • Working Temperature Range: Charge: 0°C to 45°C | Discharge: -20°C to 60°C
  • Storage Temperature: -10°C to 50°C
  • Battery Cells: Prismatic

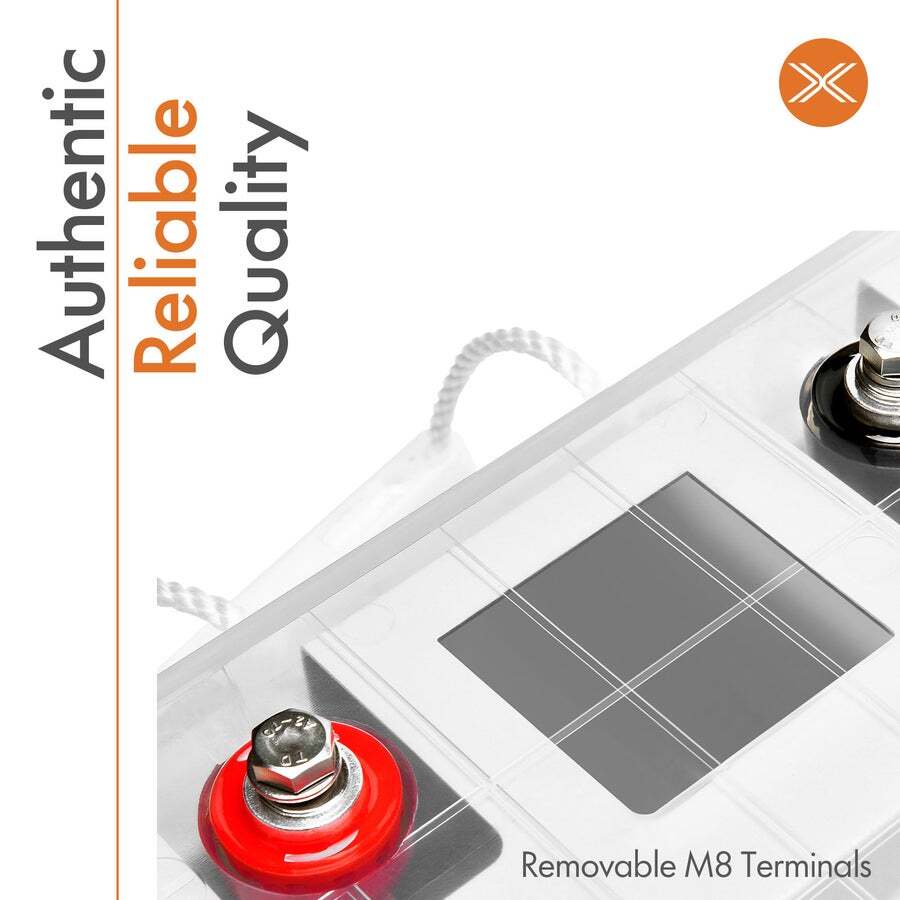

  • Bolt Type: Hexagon
  • Bolt Material: Iron nickel-plated
  • Series Connection: Yes, Max 3 batteries
  • Parallel Connection: Yes, Max 6 batteries
  • Float Voltage: 28.2V
  • Overcharge Protection: 29.2V
  • Overcharge Recovery: 28.4.V
  • Overdischarge Protection: 20.0V
  • Overdischarge Recovery: 21.2V
  • Cell Grouping: 8S1P
  • Case Material: ABS Plastic
  • Warranty in Years: 5

  • Dimension & Weight:
  • Dimension: L522 x W238 x H218mm
  • Weight: 23.2kg

  • Package:
  • 1x VoltX 24V 100Ah Lithium Battery

  • IMPORTANT:
    While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
    Suggestions From the Team:
    Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
    As much as possible, only connect batteries in series or parallel during emergency situations.
    It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.

    GTIN: 9355348027570

    Reference ID: 7540632
