DOSS VPB45HD Rj45 Jack Video and Power Balun Passive Up To 250M HD Version Colour Video Max Up To

DOSS VPB45HD Rj45 Jack Video and Power Balun Passive Up To 250M HD Version Colour Video Max Up To

$22.95

Collect 22 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

Features

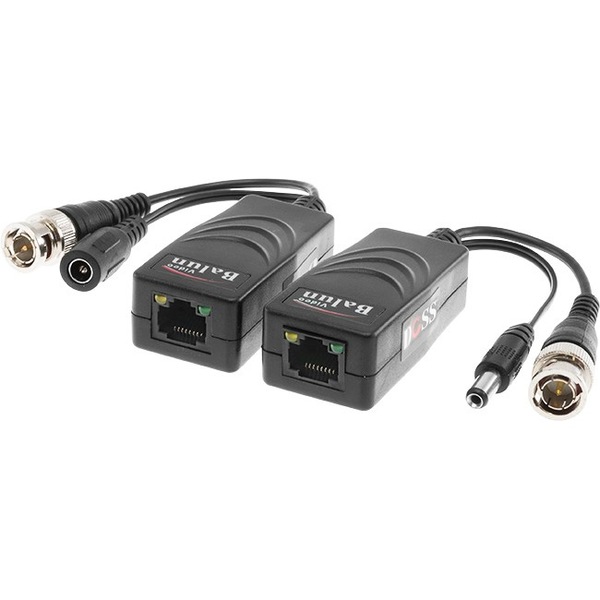

The Doss VPB45HD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effecitve UTP unshielded Twisted Paried cable.

The Doss VPB45HD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminates costly and bulky coxial cable.

The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the samewire bundle as telephone, datacom or low-voltage power circuits. Also it has built in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quanlity video signals.

Which is the best cable to work with?

We recommend to use it with wiring from 24AWG through 22AWG. Individually shielded pairsshould be avoided as they reduce the operating range of the systems drastically.

Features

Single channel HD video & Power transmitter & receiver
Real-time transmission over UPT cat5e/ 6
NTSC, PAL & SECAM video format compatiable
Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras
Colour video max up to 440m for HD-CVI 720P camera
Colour video max up to 210m for TVT HD-TVI 720P camera
Colour video max up to 300m for AHD 720P camera
Male BNC with extended 150mm mini-coax pigtail
RJ45 jack for UTP cable
Built- in TVS for surge protection
Wave filter design, Anti-static design
Lightning protection design Grade: III
60 dB crosstalk and noise immunity
ABS engineering plastic housing

Applications

Security Monitoring System
Multimedia Network Teaching System
Medical Monitoring Display System
Industrial Automation Control System
Banking, securities, financial information display system
Remote Network Server Monitoring
Department Store Security
Casino Security
Hospitals, Airports and banks
School Campuses

Example scenarios

Basic application: Direct connection with monitor

Simple application: Four cameras connected to DVR

Full CCTV application: Many cameras to DVR via powered hub.

Specifications

Applied Devices	CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video	Video Format	PAL, NTSC, SECAM
Operating Frequency	DC to 42MHz
Max Distance	HD-TVI720P: 190m	HD-CVI720P: 440m	AHD720P: 300m
HD-TVI 1080P:190m	HD-CVI 1080P: 220m	AHD960P: 240m AHD 1080P: 220m
Common-mode/Differential-mode rejection	15KHz to 42MHz60 dB type
Impedance	Coax, Male BNC75 unbalanced
UTP, RJ45 100 balanced
Attenuation	1.5 dB typ Max
Wire Type	Network Wiring	One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type	2 or better
Impedance	100 ± 20 ohms
DC Loop Resistance	52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance	19 pF/ft max (62 pF/m max)
Power	No external power required
Connector	Video input/ output	Male BNC connector
Videoinput/ output	RJ45 Jack
Protection	Surge Protection	renewable solid state surge protection
Video Input	2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output	2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical	Housing	ABS engineering plastic
Body Color	Black
Dimensions(LWH)	38.418.619.5mm (BNC connector excluded)
Net Weight	40g
Environmental	Operating Temperature	−20°C~70°C
Relative Humidity	0~95% (non-condensing)
Storage Temperature	−40°C~150°C

Reference

Balun LEDs

	_
_
Power indicator—power is being transmitted/received
Over-current—maximum current (1.5A) has been exceeded

_

Video and Power Balun wiring

_	Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8
T568A	White/ Green	Green	White/ Orange	Blue	White/ Blue	Orange	White/ Brown	Brown
T568B	White/ Orange	Orange	White/ Green	Blue	White/ Blue	Green	White/ Brown	Brown
DOSS_Video+ Power_Balun	Video	Video	Power_-	Power_-	Power_-	Power_+	Power_+	Power_+
