ATEN VS381B 3-Way HDMI Switcher 4K
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)

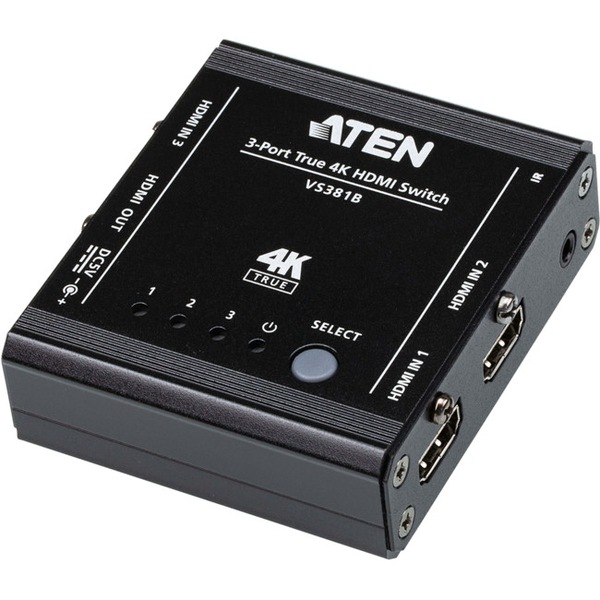

The VS381B 3-PortHDMI Switch with Auto Switching provides users to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to(4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps,, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.
VS381B is a practical solution for auditorium,,s, trade shows, shopping centers, and more.
Note | USB to DC cable as the main power source; In some circumstances power from HDMI maybe sufficient for the device; however, the power source from USB via USB to DC cable is recommended for device operation |
LEDs | |
Input | 3 x HDMI-In (Green) |
Power | 1 x Power LED (Green) |
Pushbuttons | |
Select | 1 x push button (input selection) |
Audio | |

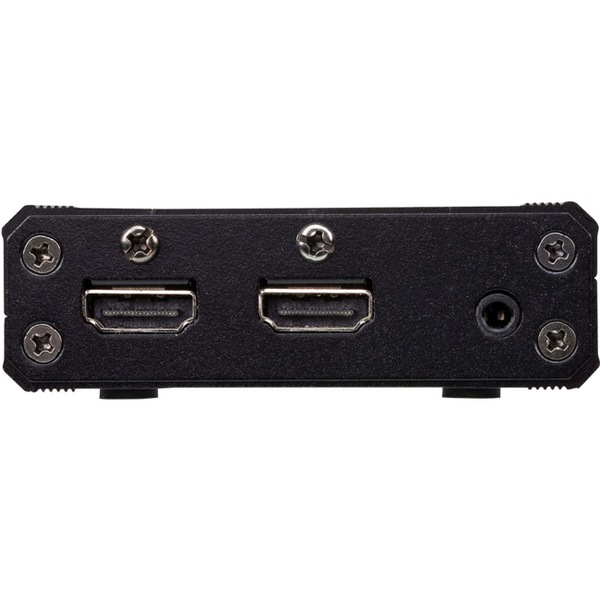

Input | 3 x HDMI Type A Female (Black) |
Output | 1 x HDMI Type A Female (Black) |
Video Input | |
Interfaces | 3 x HDMI Type A Female (Black) |
Impedance | 100 |
Max. Distance | Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
Video Output | |
Interfaces | 1 x HDMI Type A Female (Black) |
Impedance | 100 |
Max. Distance | Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
Video | |
Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
Max. Pixel Clock | 600 MHz |
Compliance | HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision) HDCP 2.2 |
Max. Resolution | 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
Control | |

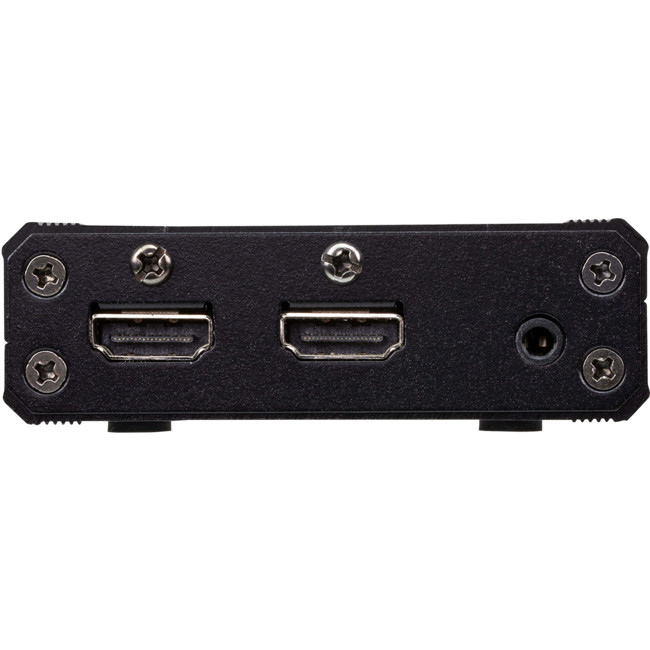

IR | 1 x Mini Stereo Jack Female (Black) / Max distance@ 5m |
Connectors | |

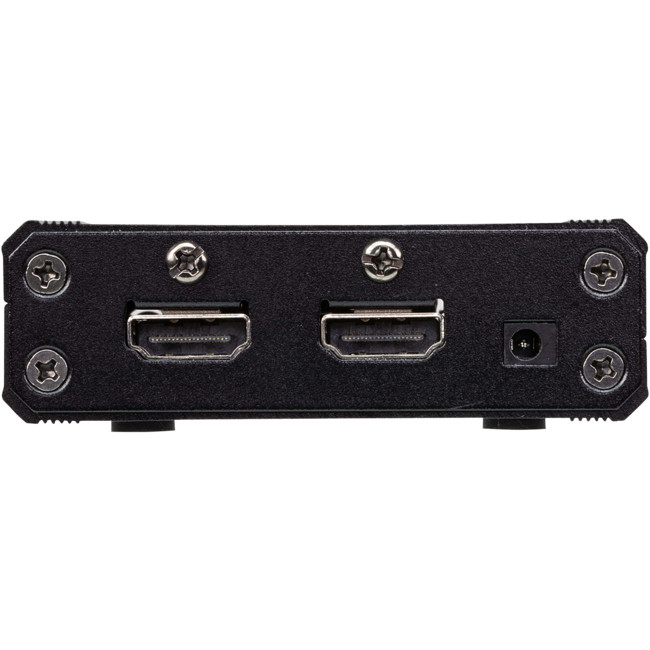

Power | 1 x DC Jack |
Power Consumption | DC5V:1.46W:6BTU |
Environmental | |
Operating Temperature | 0-40 °C |
Storage Temperature | -20 - 60 °C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.15 kg ( 0.33 lb ) |
Dimensions (L x W x H) | 7.16 x 7.90 x 2.55 cm (2.82 x 3.11 x 1 in.) |
Carton Lot | 20 pcs |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
GTIN: 4710423778818
Reference ID: 2024818
