VS890 OBD2 Scanner Car Diagnostic Tool Engine Fault Code Reader CANBUS 12V Multi-Languages

Notice: Can't Update, Only supports Gasoline cars

Description:

1. Multi-language user interface, supports up to 13 languages

2. Application layer fully complies with ISO 15031 and is compliant with SAE J1979.

3. Fully functional Mode$01~Mode$09 operation.

4. Supports a large number of vehicles made by 70 manufacturers.

DTC includes generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1,B2 ,U1 and C1,C2,) codes.

Detailed DTC library: DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available
for 80% of all the DTCs,which shows the probable  cause of the code.
Specifications:
Model: VS890
Product Name: Car diagnostic tool
Voltage: 12V DC
Language Support: Spanish, Portuguese, Korean, Japanese, Italian,Hebrew, German, French, Finnish, English, Dutch, Danish and Chinese

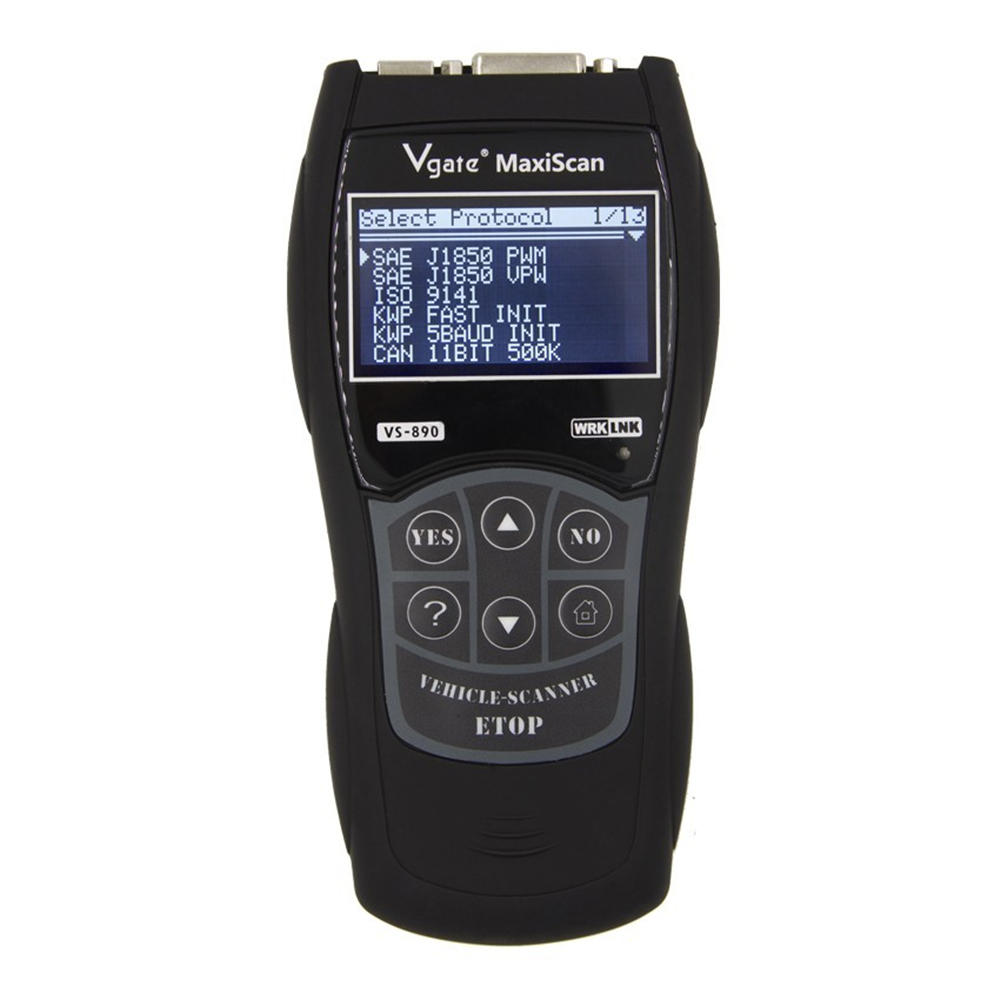

Supported Protocol:

SAE J1850 PWM

SAE J1850 VPW

ISO9141

KWP FAST INIT

KWP 5BAUD INIT

CAN 11BIT 500K

CAN 29BIT 500K

CAN 11BIT 250K

CAN 29BIT 250K

CAN_USER1 11B 125K

CAN_USER1 29B 125K

CAN_USER2 11B 50K

CAN_USER2 29B 50K

Full CAN BUS support for new cars

11 Bit and 29Bit CAN

Capable of communicating with multi-ECU System

Feature:

1. Color: Black

2. LCD: 3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.

3. ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No. 200830010963.5.

4. Harmless fade-resistant paint.

5. Rubber oil sprayed housing; slide, dirty, and vibration proof.

6. Passed EMI/EMC test.

7. High quality PET 6-key film keypad.

8. CE, FCC, RoHs Certified

9. Support manually input DTC Look-up

10. Read DTCs

11. Clear DTCs

12. Data stream

13. Freeze Frame

14. I/M Readiness

15. O2 Monitor Test

16. On-Board Mon Test

17. Component Test

18. Vehicle Info.

19. Modules Present

20. Unit of Measure

21. State Emission

22. Read All DTCs

23. Read Stored DTCs

24. Read Pending DTCs

25. Detailed help information

26. Capable of showing probable cause of a DTCs.

27. Up to 161 data items, each of them is with online help information.

28. Reset engine MIL

29. This operation will erase all DTCs, freeze frame Data, oxygen sensor data, and reset IM Monitors and MIL.

American Car List:

Works on standard OBD2 car from 2000 to now

Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep

European Car List:

Works on standard obd2 car from 2003 to now

Fit for Alfa,Fit for SAAB  ,Fit for Acura  ,Fit for Opel, Fit for Audi ,Fit for Seat  ,Fit for Peugeot ,Fit for Renault

Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu  ,Fit for Land Rover

Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar

Asian Car List:

Japanese car  works on standard obd2 car from 2005 to now

Chinese car works on standard obd2 car from 2009 to now

Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai  ,Fit for Dacia  ,Fit for Lexus ,Fit for Mazda

Fit for Nissan  ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota  ,Fit for Ssangyong

Special Car Model:

For SSangyong Kyron/Actyon will be suitable from 2010 and newer cars.

For LADA Priora, From 2008 to 2016 model will be suitable, LA DA 2111, 2116 Will only be suitable after 2013

NOTICE:

Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is
spercial design, so it may not compatible with some cars which do not support OBD2 protocol. especially Japanese and Korea car

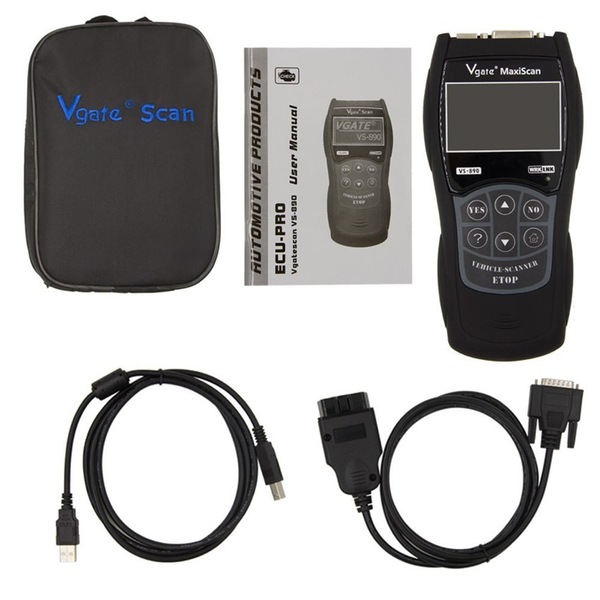

Package List:

1 x Main Unit

1 x OBD2 Cable

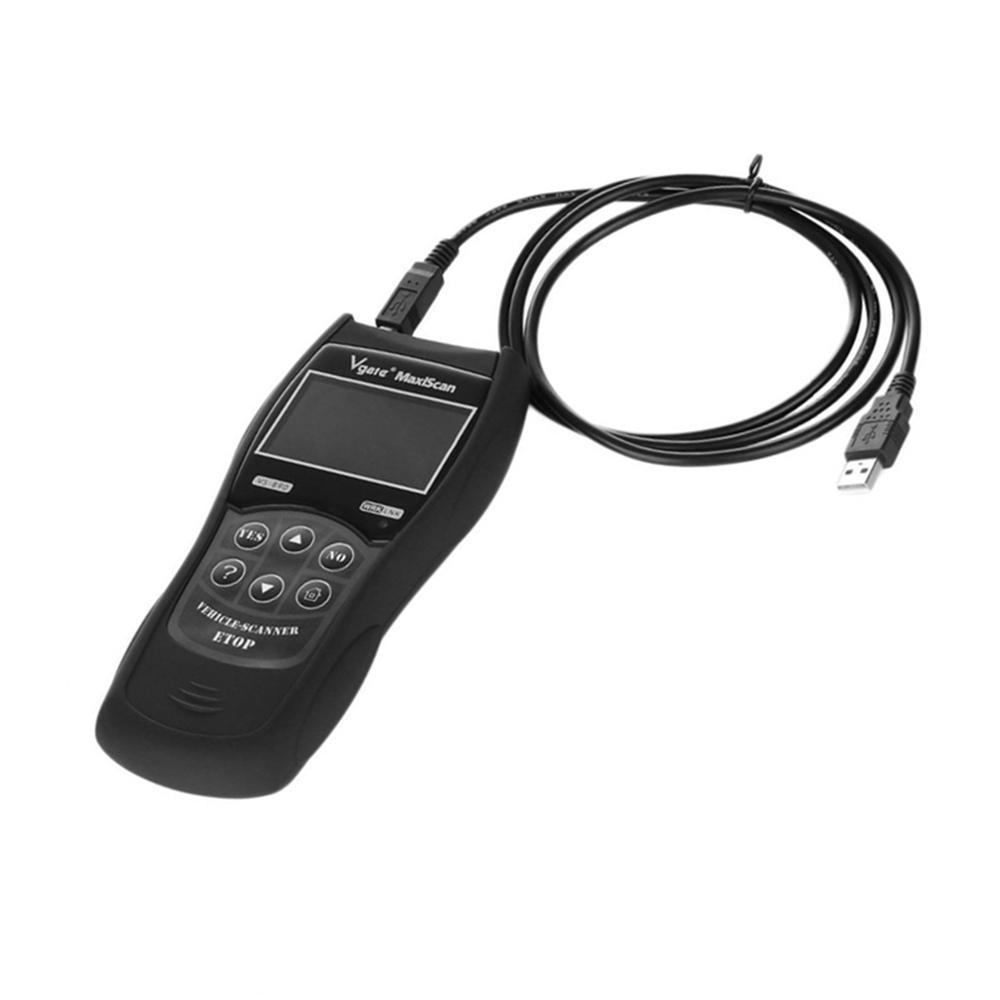

1 x USB Cable

1 x User Manual

1 x Nylon Bag
