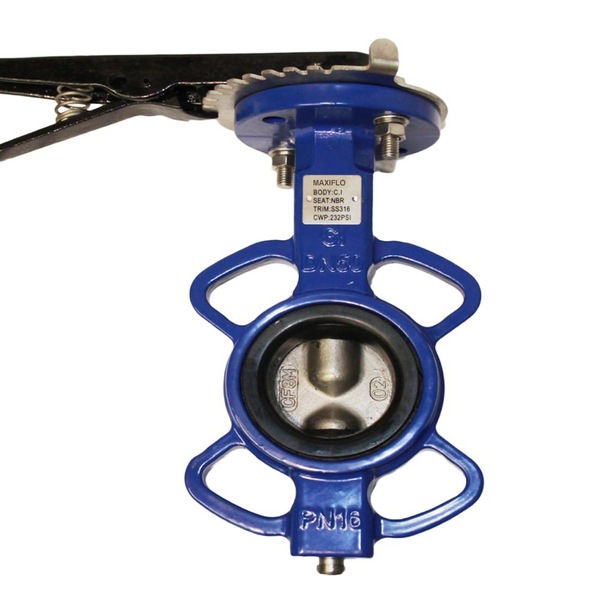

Wafer Butterfly Valve with 316 Stainless Steel Disc NBR Seat
The wafer body design is such that it can be used with most international flanges including AS2129, BS10, ANSI, DIN & JIS Standards in sizes 50mm to 300mm. The wafer style is designed for inline service and relies on a flange either side of the valve to secure in the pipeline.
MATERIAL LIST | |
PARTS | MATERIAL |
Body | Cast Iron |
Handle | Ductile Iron |
Stem | SS416 |
Hub Shaft | CF8M |
Bushing | P.T.F.E |
O Ring | NBR |
SPECIFICATIONS | |
Max Working Temperature | 100 Deg C |
Cold Working Pressure | 1600kpa |
Standard | ISO 5752 |
Pressure Test | API598 |
Mounting Pad | ISO 5211 |
Flange Drilling | AS2129 Table E |
WAFER CAST IRON BUTTERFLY VALVE STAINLESS STEEL DISC | |||||||||||||
NBR SEAT | EPDM SEAT | SIZE (in) | H1 | H2 | H3 | C | L | H | C1 | F | n1-d | N | Weight (Kg) |
8407.02.50 | 8407.01.50 | 2 | 70 | 140 | 31.8 | 125 | 42.0 | 11 | 70 | 14.1 | 4-10 | 70 | 3.1 |
8407.02.65 | 8407.01.65 | 2 1/2 | 79 | 155 | 31.8 | 145 | 44.7 | 11 | 70 | 14.1 | 4-10 | 70 | 3.8 |
8407.02.80 | 8407.01.80 | 3 | 83 | 160 | 31.8 | 160 | 45.2 | 11 | 70 | 14.1 | 4- 10 | 70 | 4.3 |
8407.02.94 | 8407.01.94 | 4 | 107 | 180 | 31.8 | 180 | 52.0 | 14 | 70 | 18.1 | 4-10 | 70 | 5.08 |
8407.02.95 | 8407.01.95 | 5 | 127 | 193 | 31.8 | 210 | 54.4 | 17 | 70 | 22.1 | 4-10 | 70 | 7.1 |
8407.02.96 | 8407.01.96 | 6 | 139 | 200 | 31.8 | 240 | 55.7 | 17 | 70 | 22.1 | 4-10 | 70 | 8.1 |
8407.02.98 | 8407.01.98 | 8 | 170 | 240 | 35.5 | 295 | 60.1 | 17 | 102 | 22.1 | 4-12 | 102 | 14 |
8407.02.X25 | 8407.01.X25 | 10 | 200 | 272 | 35.5 | 355 | 65.6 | 22 | 102 | 28.2 | 4-12 | 102 | 21 |
8407.02.X30 | 8407.01.X30 | 12 | 242 | 317 | 35.5 | 410 | 76.5 | 22 | 102 | 28.2 | 4-12 | 102 | 34 |
