Product information:
- Detection range: 180 angle
- Operating voltage: DC 12V
- Detection distance: 15m ,24 temperature, adjustable
- Delay Time: 15 seconds to 7 minutes ,adjustable
- Installation height: 1.8m - 2.5m
- Material: ABS
- Dimensions: 60 x47 x156mm
- Installation: open type, hole 16mm,installation, adjusting for the next button.
- Color:Black, White . Randomly send the goods

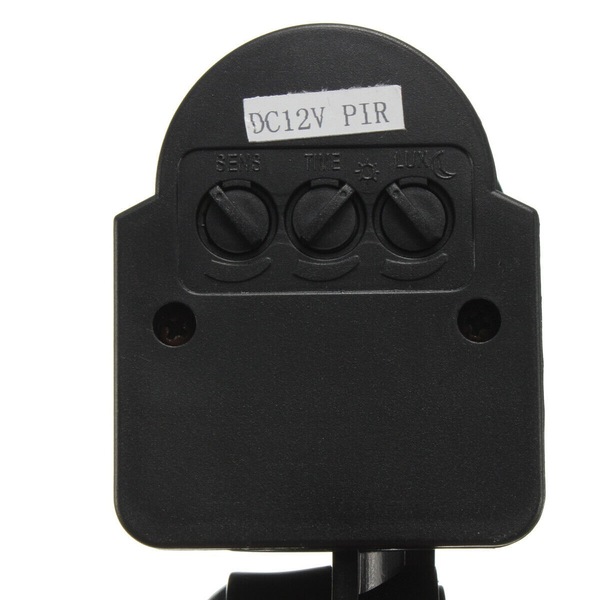

Adjustment:
- UX
- Regulate the work day or night.
- A: When transferred to the position of the sun, the sensor-day work
- B: When transferred to the position of the moon,
- the sensor does not work during the day, at night automatically enter the working state.
- TIME:Is to adjust the sensor delay time 10 positive or negative 2sec - 7 positive or negative 1min
- Delay time is the sensor sensitive to the people, the people left the sensing area, the sensor delay off time.
- SENS:Is to adjust the sensor sensitivity. Generally do not need adjustment.
Connection Description:
- N- Blue -zero line
- L- Brown -connected FireWire
- Output - Red -sensor output lines
- Blue and brown input power
- Blue and Red take the load -lamps.
Contents in Box:
- 1 x 12V human infrared sensor
More information about product:
- Built-human infrared sensor module, sensor module light effects, delay switch module.
- load capacity, strong anti-jamming capability.
- people into the sensing range, can be automatically opened, after leaving the automatic delay off,
- can automatically identify day and night, and the external environment illuminance can freely choose the starting job,
- Automatic work to do in the evening, during the day and closed. Users can adjust
- light time is adjustable and can be adjusted by the user according to local conditions.
- This is a 12V human infrared sensors, pyroelectric infrared technology,
- the use of industrial district-level chip, intelligent control,
- set energy saving, convenient and environmentally friendly one, very convenient.
