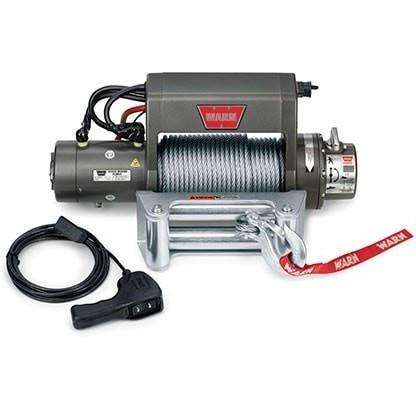

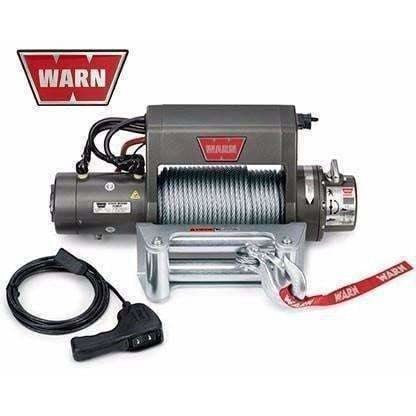

Warn 12v integrated control winch 30m wire rope, xd9000i-27550



Fast and reliable in real trail conditions

No-load retrieval line speed of 38′ per minute. Integrated solenoid. Runs cool with low amp draw for long winching duty cycles. Comes with 125′ of 5/16″ wire rope.

  • Integrated control box provides excellent protection to electronics
  • Exclusive brake design provides superior control while winching
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Chip-resistant, powder-coated finish
  • Remote control with 12′ (3.7m) lead
  • Durable 5/16″ (8mm) diameter galvanized steel wire rope.
XD9000I SPECIFICATIONS
Part Number: XD9000I-27550
Winch Model: XD9000i
Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
Motor: Series Wound 12V 4.6 hp
Electrical controls: Solenoid
Remote Control: Remote switch, 12′ (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.5″ /9.0″ (6.4cm/23cm)
Weight: 85 lbs. (38.5kgs.)
Wire rope: 125′, 5/16″ dia. (38m, 8mm)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72″ (1.83m)
Finish: Argent Gray Powder Coat

12V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 38 (11.58) 56 amps 1/9000 (4082)
2000 (910) 15 (6.8) 161 amps 2/8190 (3715)
4000 (1810) 10.3 (3.14) 252 amps 3/7500 (3402)
6000 (2720) 7.5 (2.29) 332 amps 4/7010 (3180)
8000 (3630) 5.1 (1.55) 423 amps
9000 (4080) 3.9 (1.19) 478 amps



WINCH DIMENSIONS
Dimensions 21.8″ L. x 6.3″ D. x 9.9″ H. (553mm L. x 160mm D. x 254mm H.)
Mounting Bolt Pattern 10.0″ x 4.5″
(254mm x 114.3mm)

GTIN: 012748275503
