Long time best selling winch

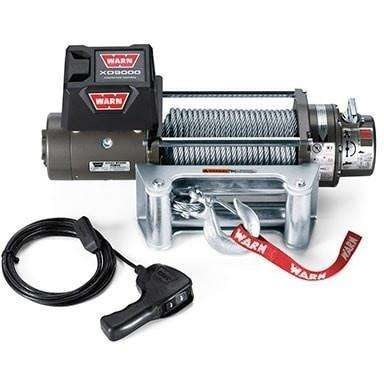

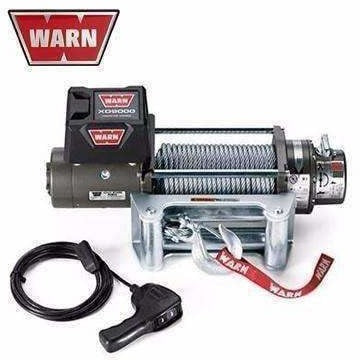

Long-time best seller. A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100′ of 5/16″ wire rope. Backed by the Warn Limited Lifetime Warranty.
Part Number:Â CEXD9000-88500 |
Winch model:Â XD9000 |
Rated line pull:Â 9,000 lbs., (4080 kgs.) single-line |
Motor:Â Series Wound: 12V 4.6 hp, 24V 2.5 hp |
Electrical controls:Â Contactor |
Remote Control: Remote switch, 12′ (3.7m) lead |
Gear Train:Â 3-Stage Planetary |
Gear ratio:Â 156:1 |
Clutch (freespooling):Â Sliding Ring Gear |
Brake:Â Automatic mechanical cone |
Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm) |
Weight:Â 78 lbs. (35kgs.) |
Wire rope: 100′, 5/16″ dia. (30m, 8mm) |
Fairlead:Â Roller |
Recommended Battery:Â 650 CCA minimum for winching |
Battery leads: 2 gauge, 72″ (1.83m) |
Finish:Â Argent gray powder coat |
Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
0 | 38 (11.58) | 56 amps | 1/9000 (4082) |
2000 (910) | 15 (6.8) | 161 amps | 2/8190 (3715) |
4000 (1810) | 10.3 (3.14) | 252 amps | 3/7500 (3402) |
6000 (2720) | 7.5 (2.29) | 332 amps | 4/7010 (3180) |
8000 (3630) | 5.1 (1.55) | 423 amps | |
9000 (4080) | 3.9 (1.19) | 478 amps |
Dimensions | 21.8″ L. x 6.3″ D. x 7.6″ H. (555mm L. x 160mm D. x 193mm H.) |
---|---|
Mounting Bolt Pattern | 10.0″ x 4.5″ (254mm x 114.3mm) |
