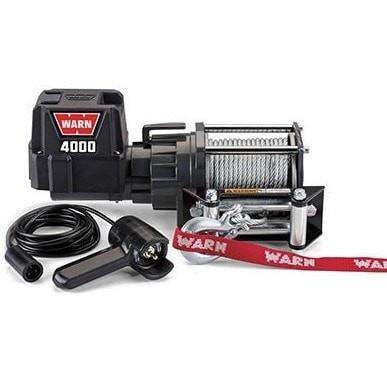

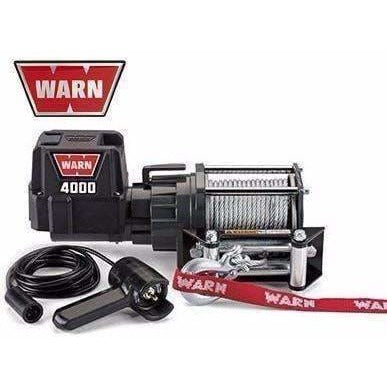

Warn 12v 4000Lbs/907kg Utility Winch 13.0m wire rope
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 1177 Everyday Rewards points
Collect 1177 Everyday Rewards points
Great for Trailers and Worksites
Â
Warn Industries – Utility Winches: 4000 DC
Part Number: DC4000-94000 |
Rated Line Pull: 4,000 lbs. (1864 kgs) |
Motor: Permanent Magnet |
HP: 1.9 HP |
Power: 12 volt DC |
Switch Type: Remote with 12′(3.7 m) Lead |
Drum Diameter: 2.375″ (6.03 cm) |
Gear Train: 3-Stage planetary |
Clutch: Lever – Multi-Directional |
Hole Pattern: 3 holes |
Gear Ratio: 176:1 |
Brake: Dynamic and mechanical braking |
Rope: Wire, 7/32″ X 43′ (13 m) |
Fairlead: Roller |
Electrical Leads: 2 – 6′ (1.8 m) x 6 gauge cable |
Warranty: 1 year limited |
Replacement Wire Rope: PN 78987 |
Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
0 | 7.2 (2.2) | 6.7 Amps | 1/4000 (1814) |
500 (226.8) | 6.8 (2.0) | 24.1Â Amps | 2/3410 (1550) |
1000 (453.6) | 5.7 (1.7) | 44.7 Amps | 3/3170 (1440) |
2000 (907.2) | 10.9 (3.3) | 180 Amps | 4/2950 (1340) |
3000 (1361) | 8.9 (2.7) | 210 Amps | |
4000 (1814) | 6.9 (2.1) | 240 Amps |
Above performance specs are based on first layer of drum
