Synthetic Rope and Thermometric Indicator

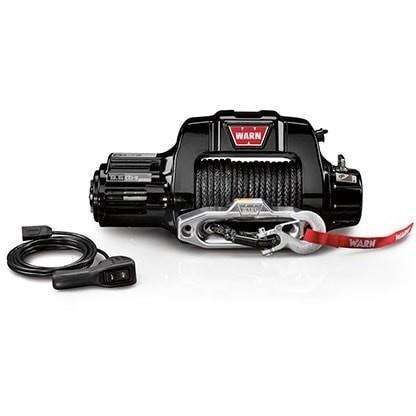

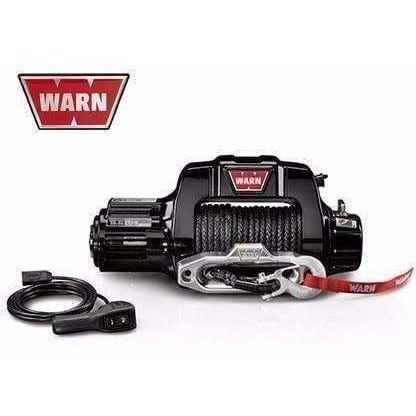

The newest addition to the WARN Ultimate Performance winch lineup
The corded WARN remote is constructed of durable EPDM rubber, and features enhanced switch sealing and an LED indicator. This winch also comes with a hand-held wireless remote.
| Part number: CE9500CTI-95050 |
| Rated line pull: 9,500 lbs., (4310 kgs.) single-line |
| Motor: Series Wound |
| Electrical controls: Contactor |
| Remote Control: Remote switch, LED indicator, 12′ (3.7m) lead and hand-held wireless |
| Geartrain: 3-Stage Planetary |
| Gear ratio: 156:1 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm) |
| Weight: 66 lbs. (30.0 kg) |
| Synthetic Rope: 100′, 3/8″ diameter (30m, 9.5mm diam.) |
| Fairlead: Polished Aluminum Hawse |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72″ (1.83m) |
| Finish: High-gloss powder coat over primer undercoating |
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 62 (18.9) | 47 amps | 1/9500 (4313) |
| 2000 (910) | 16.3 (4.97) | 160 amps | 2/8650 (3927) |
| 4000 (1810) | 11.8 (3.60) | 230 amps | 3/7920 (3595) |
| 6000 (2720) | 9.31 (2.84) | 305 amps | 4/7400 (3359) |
| 8000 (3630) | 7.59 (2.31) | 370 amps | 5/6940 (3150) |
| 9500 (4310) | 6.67 (2.03) | 425 amps |
| Dimensions | 23.1″ L. x 6.3″ D. x 10.4″ H. (587mm L. x 160mm D. x 264mm H.) |
|---|---|
| Mounting Bolt Pattern | 10.0″ x 4.5″ (254mm x 114.3mm) |
