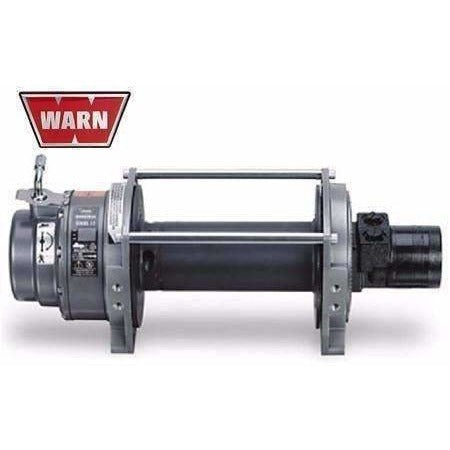

Warn Series 12 hydraulic winch 12000lb / 5400kg

Warn Series 12 hydraulic winch 12000lb / 5400kg

Hurry! 10 items left!
Price
$3985
Earn 3x points and collect 11955 Everyday Rewards points. Promotion ends 16/05/2024.
Create a MyDeal Account or Login to link your card
Clutch
Shipping
$39.00 Australia-wide (per item)

Quantity
Maximum item limit (10) has been reached.

Details
Series 12
Perfect for Most Tow, Utility and Trailer Applications
  • Pulling capacity up to 12,000 lbf.
  • Hardened steel, two-stage planetary gears
  • Geartrain provides faster line speeds
  • Heavy-duty automatic disc brake provides dependable operation
  • Meets SAE J706 and CE standards
  • Wire rope, roller fairlead, and tensioner sold separately

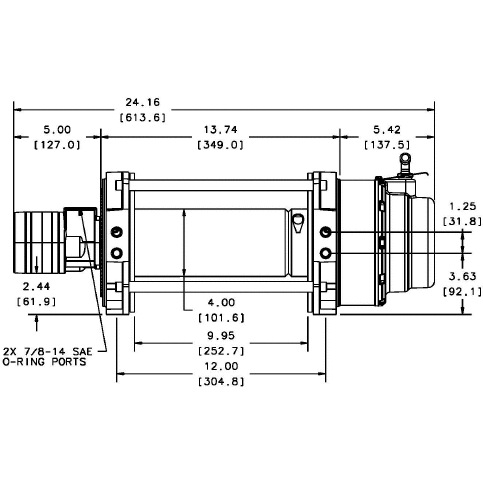

12 HYD SPECS
Part Number: 30285 (Anti-clockwise)
Rated Pulling Force: 1200 lbf (5443 kgf)
Drum Barrel Diameter: 4.00 in (102 mm)
Drum Flange Diameter: 8.24 in ( 209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 20400 lbf (9253 kgf)
Approximate Shipping Weight for PN 30286: 86.0 lb (39.0 kg)
Approximate Shipping Weight for PN 30285: 85.5 lb (38.8 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 350 ft (107 m)
Mounting Bolt Torque: 35-40 ft*lbf (47-54 N*m)
Maximum Layers of Wire Rope: 4 (with 7/16" dia rope)
Gear Reduction: 36:1
Brake Type: Disk
Contactor / Remote Type: N/A
Standards Compliance for PN 30285:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
Standards Compliance for PN 30286: SAE J706
ACCESSORIES
Wire Rope Tension Plate 10'': PN 31149
Fairlead Black 10'': PN 24336
Fairlead Chrome 10": PN 30859
Remote Clutch Mechanical: PN 38316
Remote Clutch Air: PN 71370
Wire Rope Assembly 7/16''x100' EIPS: PN 23678

PERFORMANCE DATA BY LAYER - 7/16" (11.1 mm) dia. rope
Drum Line Load * Line Speed 10 GPM Line Speed 15 GPM Drum Capacity
Layer lbf kgf kN ft/min m/min ft/min m/min ft m
1 12000 5443 53.4 15.2 4.6 21.8 6.6 23 7.0
2 10023 4546 44.6 18.2 5.5 26.1 8.0 51 15.5
3 8606 3904 38.3 21.2 6.5 30.4 9.3 84 25.6
4 7539 3420 33.5 24.2 7.4 34.7 10.6 121 36.9

* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.


FIRST LAYER PERFORMANCE
Line Load Pressure Drop at 10 GPM Pressure Drop at 15 GPM Duty Cycle
lbf kgf psi BAR psi BAR min/10min
0 0 234 16.1 376 25.9 N/A
2000 907 505 34.8 640 44.1 N/A
4000 1814 777 53.6 918 63.3 N/A
6000 2722 1076 74.2 1193 82.3 N/A
8000 3629 1367 94.3 1503 103.6 N/A
10000 4536 1707 117.7 1784 123.0 N/A
12000 5443 2127 146.7 2163 149.1 N/A
